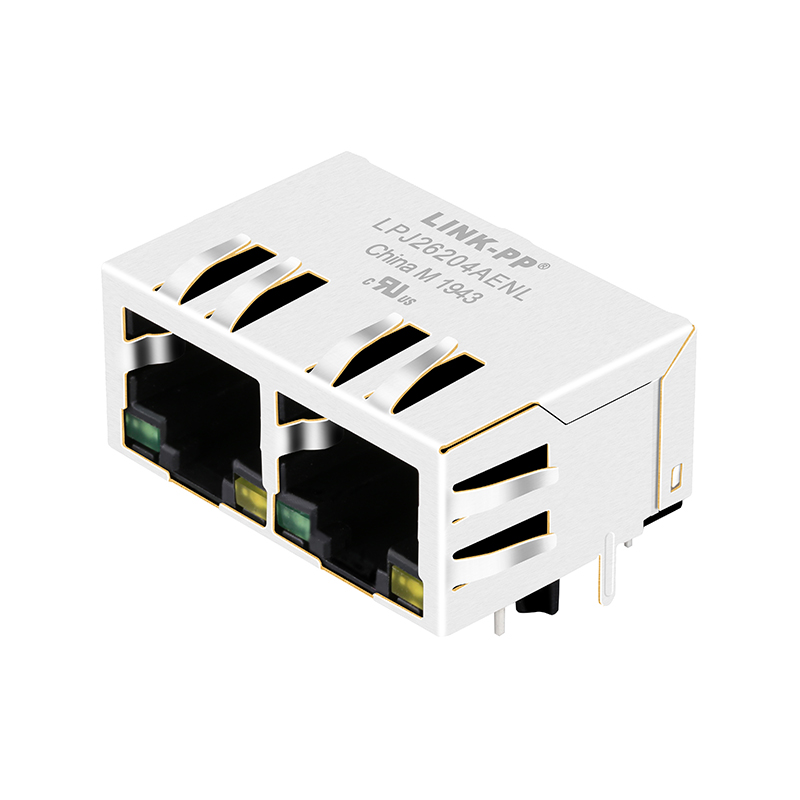

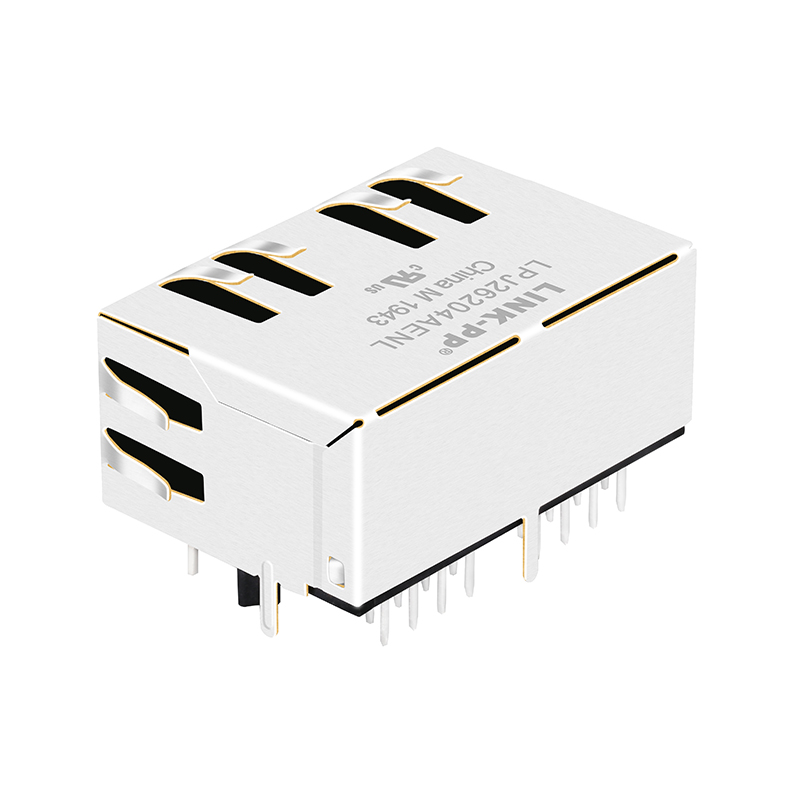

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Product Description

Product Description

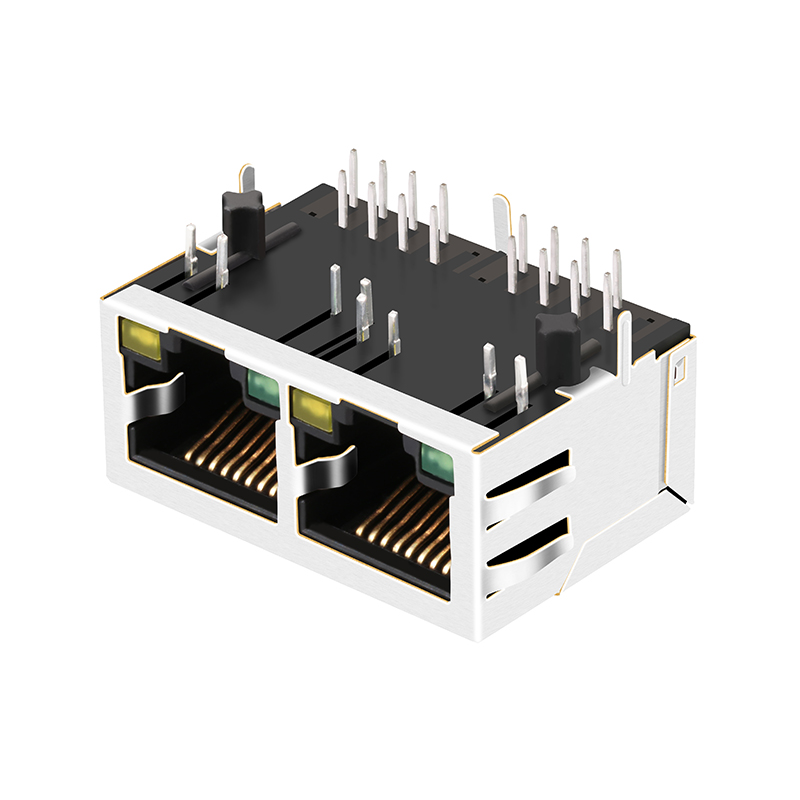

Product Image 1

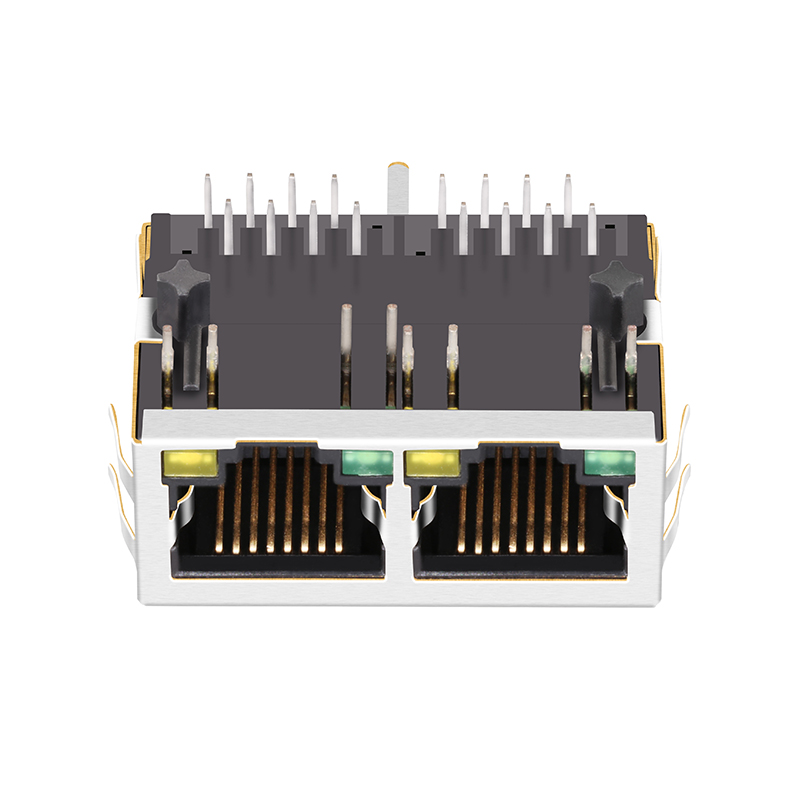

Product Image 2

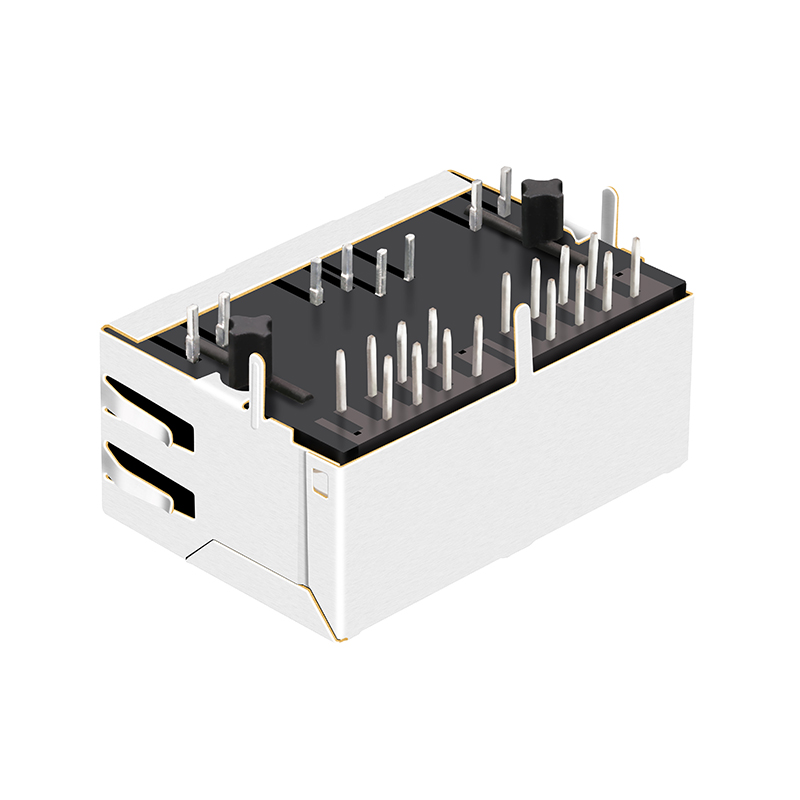

Product Image 3

Specification

item value
Model Number LPJ26204AENL
Part Status Active
Connector Type RJ45
Applications-Lan 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green / Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C

Packing & Delivery

The Package
Package: Tray, Carton size: 37*30*30cm, G.W./carton: 9kg, Qty/carton: 600pcs, SPQ: 30pcs, N.W/pcs: 0.015kg
Packing Image

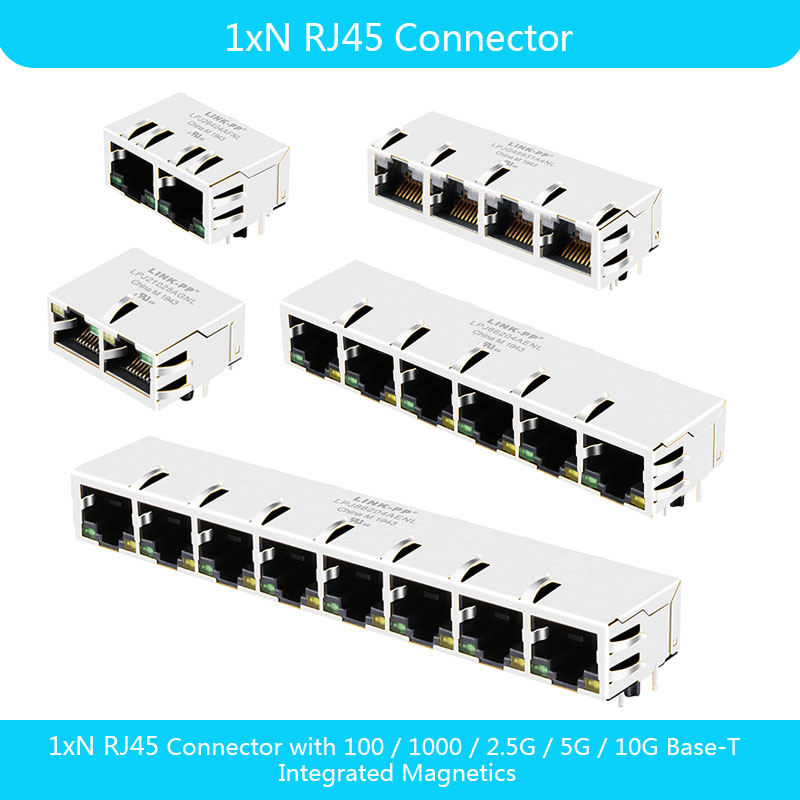

Connector Image
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector
Applications: Suitable for industrial temperatures from -40 °C up to +85 °C. Compatible to Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC's for Ethernet applications such as Microchip, Broadcom, Marvell, Hubs, Routers, Switches, IP cameras, and IoT applications.

Company Profile

Company Image 1
Company Image 2
Company Image 3
Company Image 4
Company Image 5
Company Image 6
Company Image 7

FAQ

1. Who are we?
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL. We own advanced manufacturing facilities and testing equipment. Established in 1997, we have around 2000 staff members. With an abundant production capacity of 3000K per month, we can deliver goods within a short time. We also provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems.
2. How can we guarantee quality?
Always a pre-production sample before mass production; always final inspection before shipment.
3. What can you buy from us?
RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
4. Why should you buy from us not from other suppliers?
1. Specialized manufacturer of RJ45 connectors and LAN transformers for 19 years.
2. Certified by SGS, ISO9001:2008, UL, REACH, and CE.
3. Over 2600 staff members and a production capacity of 30000K per week.
4. Trusted partner for major global technology providers.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
