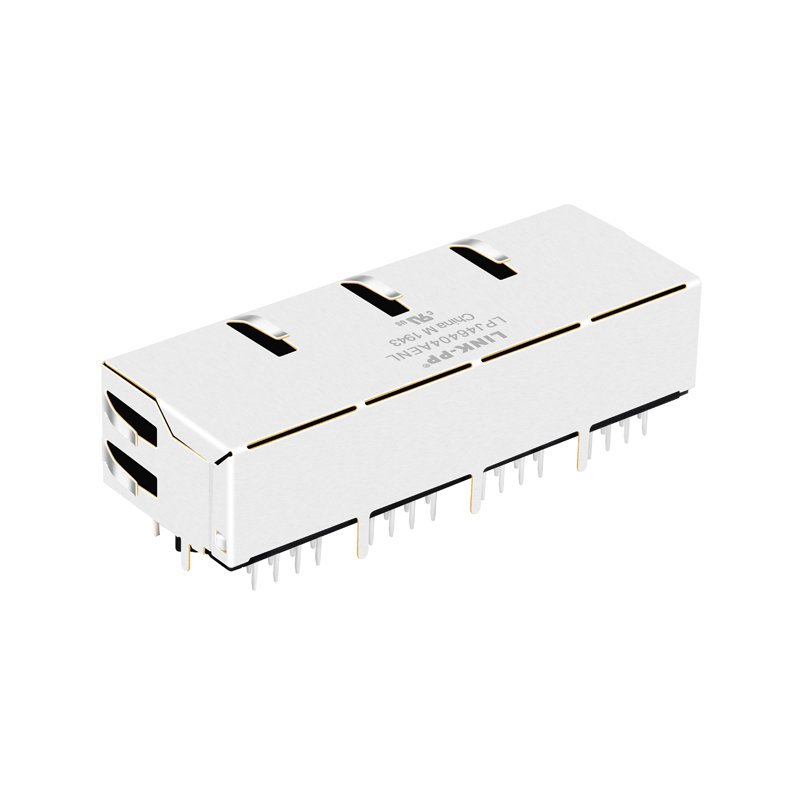

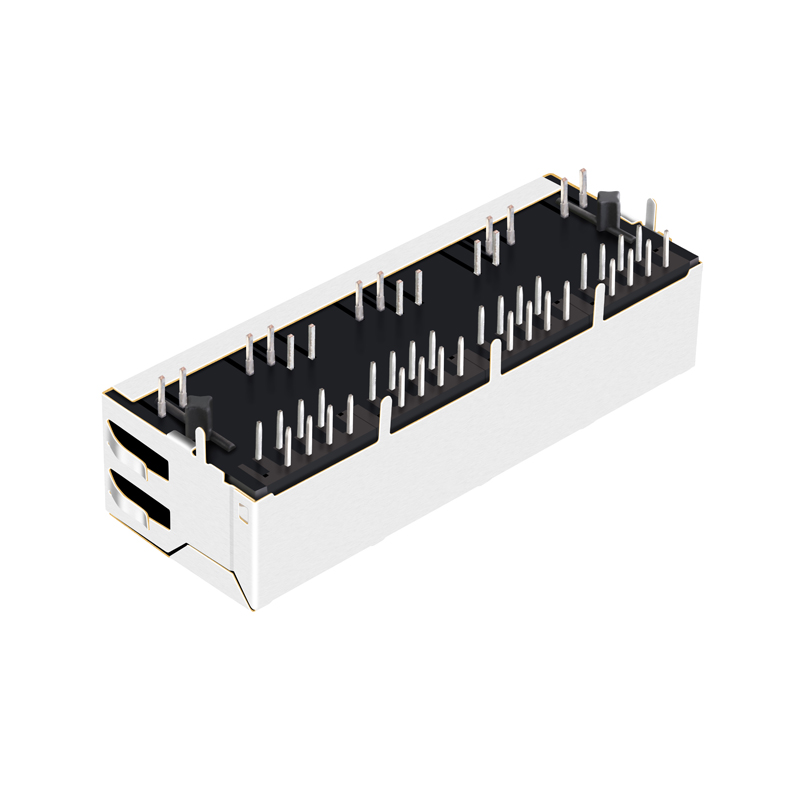

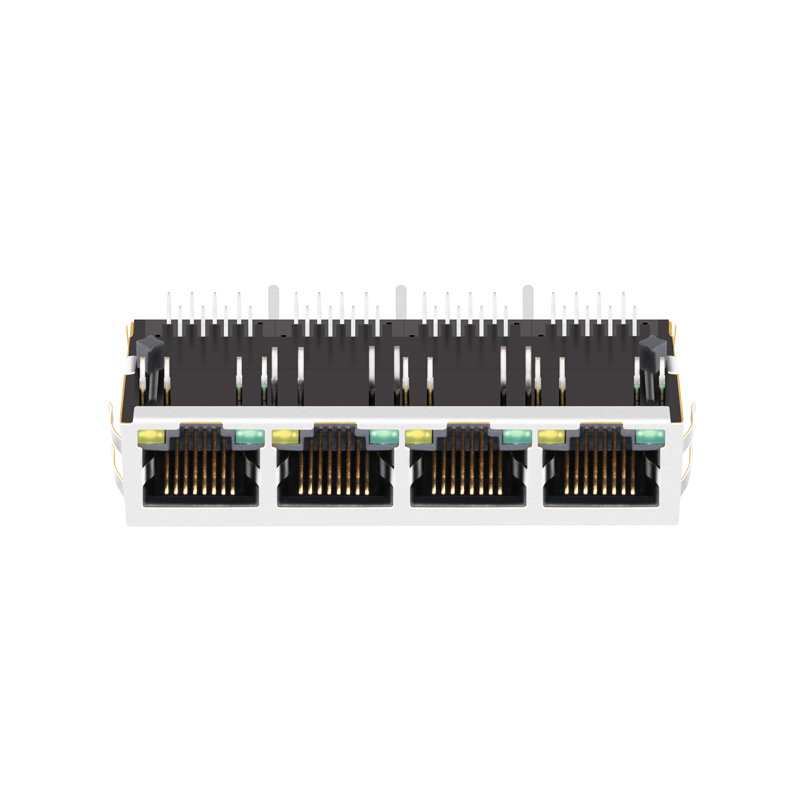

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
1 / 5
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack
JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

JXD0-4005NL JX80-0033NL 1x4 Port 10/100 Base-T 8 Pin Led Connector Socket Network Jack

Send Inquiry

Product Description

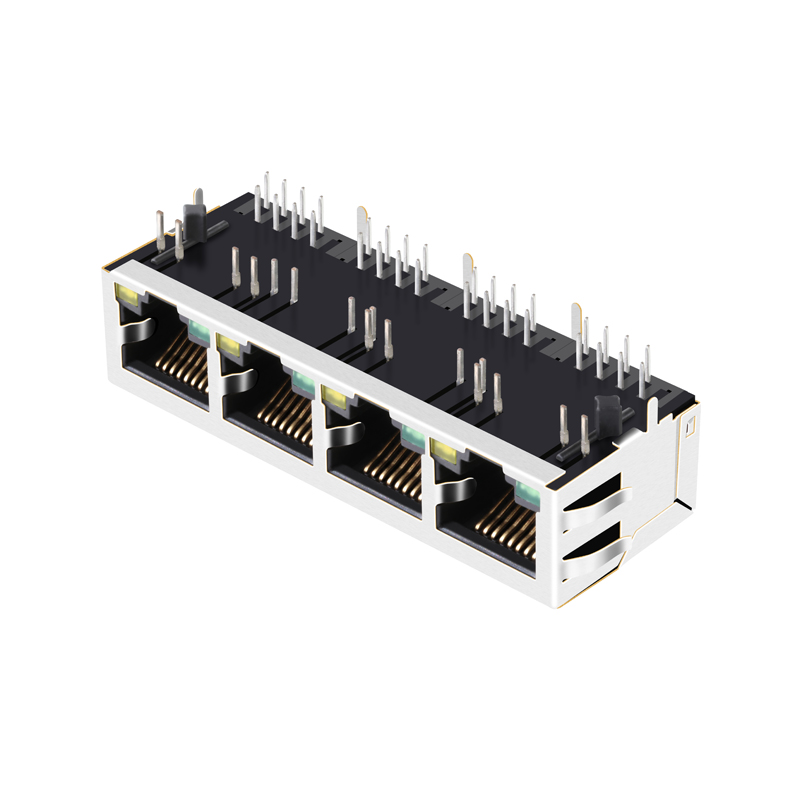

RJ45 Connector Overview

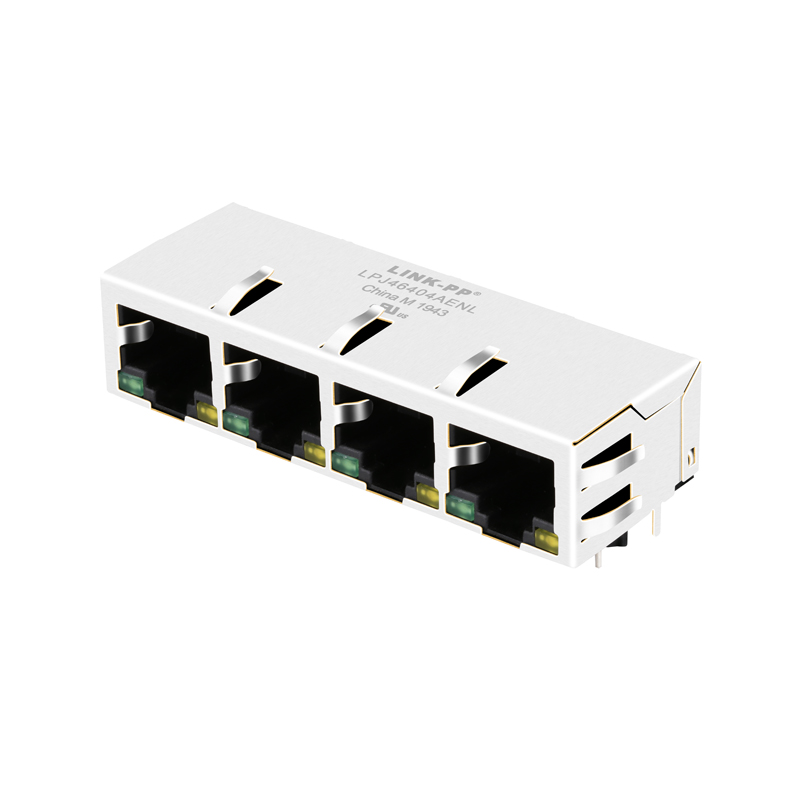

RJ45 Connector Detail

Specification

Item Value
Part Number LPJ46404AENL
Pulse Part Number JXD0-4005NL / JX80-0033NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Yellow Led
Number of Cores per Jack 4
Shielding Shielded, Emi Finger
Number of Ports 1x4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
Technical Drawing 7
Technical Drawing 8
Technical Drawing 9

Main Products

10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

FAQ

Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Can I get some samples?
Yes, 3-5 pcs free samples are available for your testing. Small batches are also acceptable.
Is OEM available?
Yes. We have rich experience and strong capability to put your design and idea into real products. We can also laser print your brand on the products.
How about the lead time?
We have a highly professional production team. Usually, orders can be shipped within 30 days.
What certifications do your products have?
Our manufacturing processes and products are certified and compliant with ISO9001, RoHS, REACH, CE, and UL standards.
What communication equipment can these products be used in?
Our components are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems.
