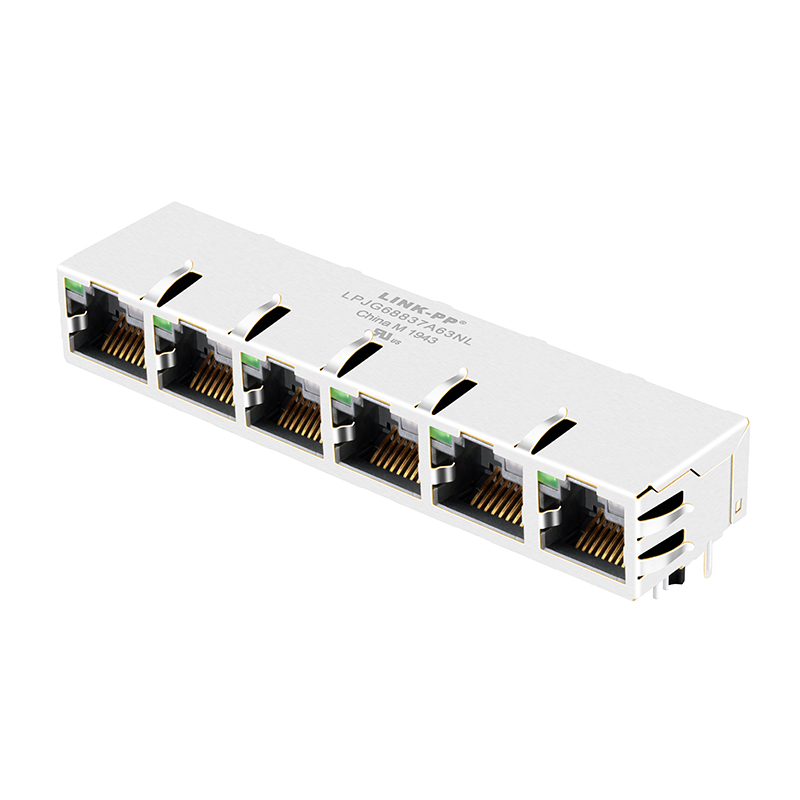

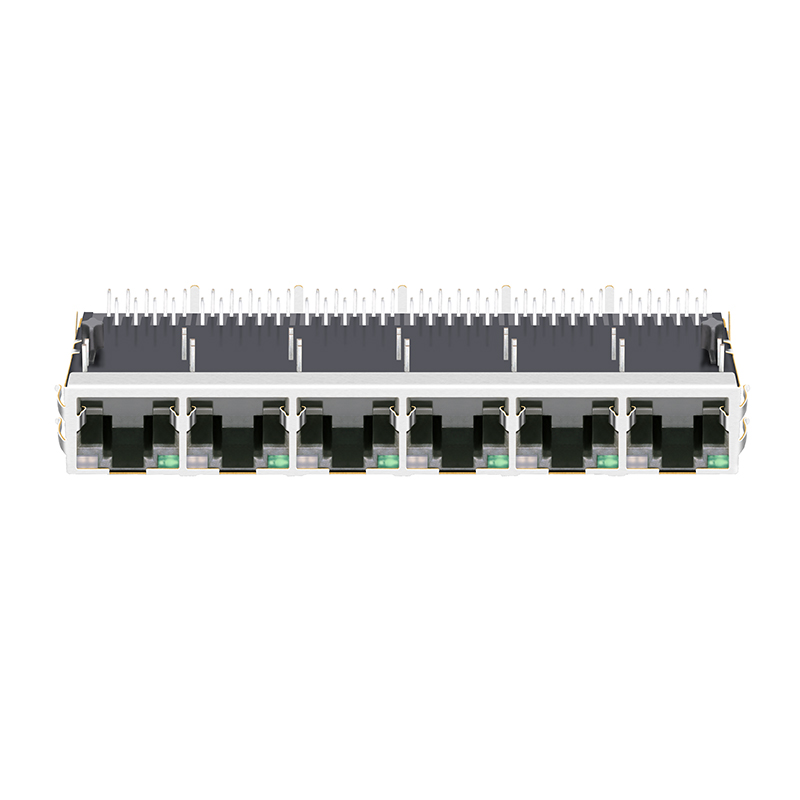

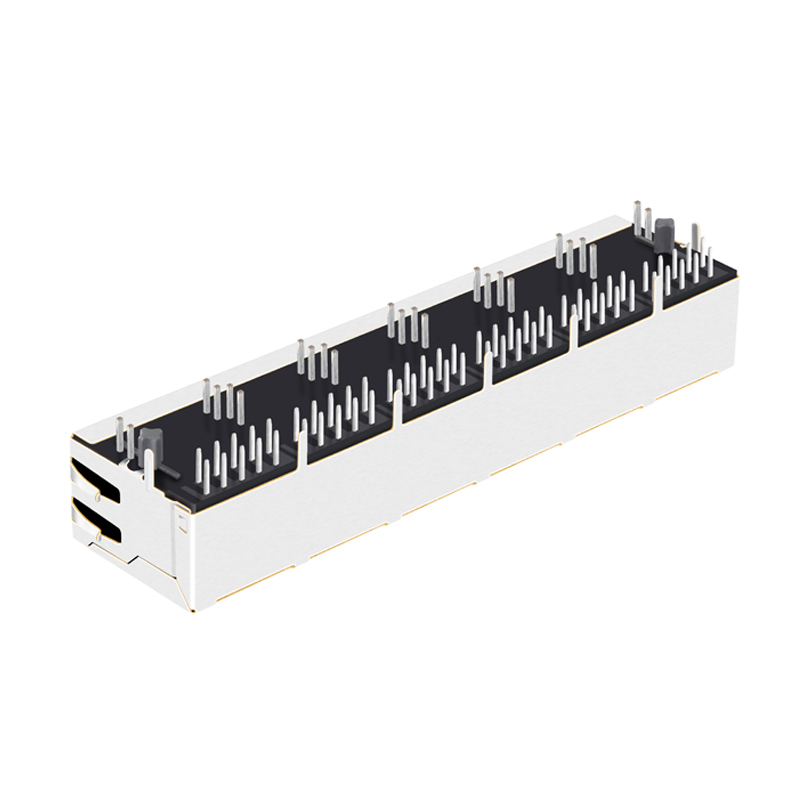

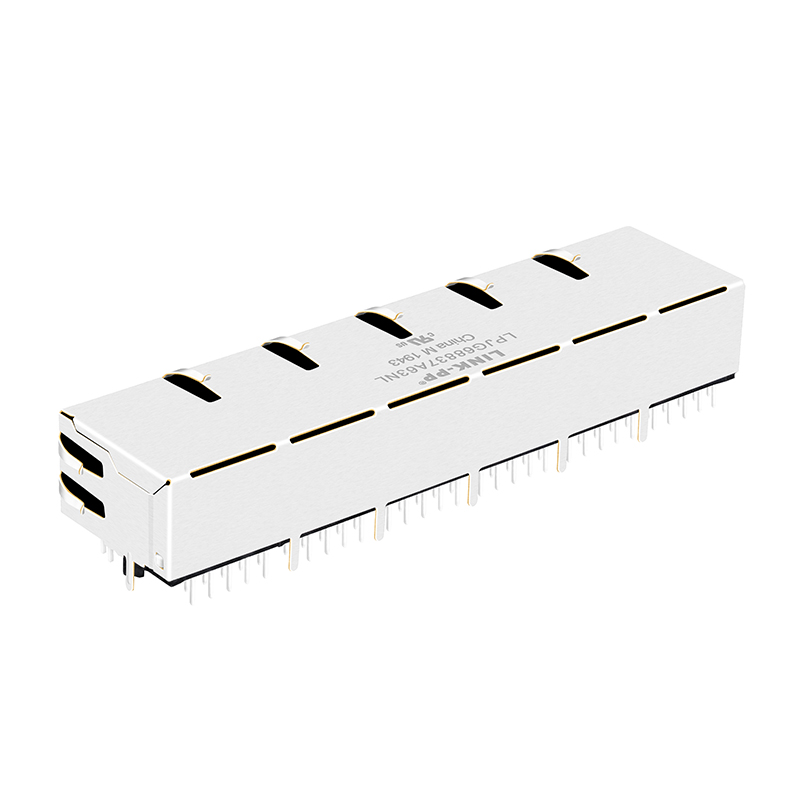

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
1 / 5
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Send Inquiry

Product Description

Product Image 1

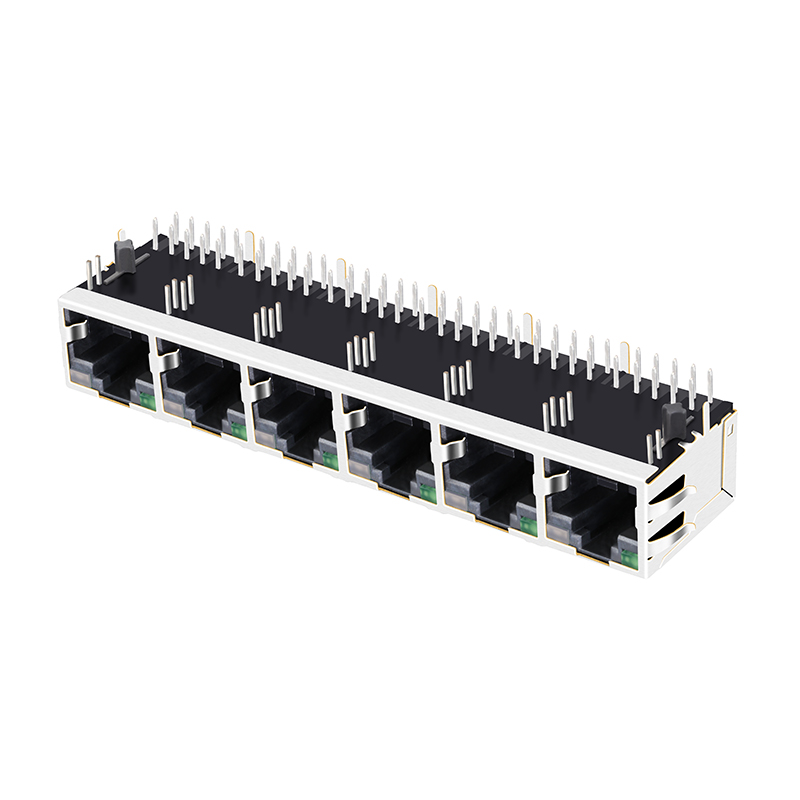

Product Image 2
Specification
item value
LINK-PP Part Number LPJG68837A63NL
Pulse Part Number JG0-0070NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Green&Orange Led
Number of Cores per Jack 8
Shielding Shielded, Emi Finger
Number of Ports 1x6 Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Product View 1
Product View 2
Product View 3
Product Detail 1
Product Detail 2
Product Detail 3
Product Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Equipped with advanced manufacturing facilities and testing instruments, we provide complete professional solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment such as Hubs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Products & Range
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Overview Image 1
Overview Image 2
Overview Image 3
FAQ
Q1: Are you a manufacturer or trade company?
We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM available?
Yes. We have rich experience and good ability to put your design and idea into real product, we can laser print your brand on the products.
Q4: How about the lead time?
We have a very professional team with high quality, usually we can ship within 30 days.
Q5: What certifications do your products have?
Our products are certified by ISO9001:2000, RoHS, REACH, CE, and UL, guaranteeing high standards of safety and quality control.
Q6: What applications are these components designed for?
They are widely used in networking and communication equipment, including Hubs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
