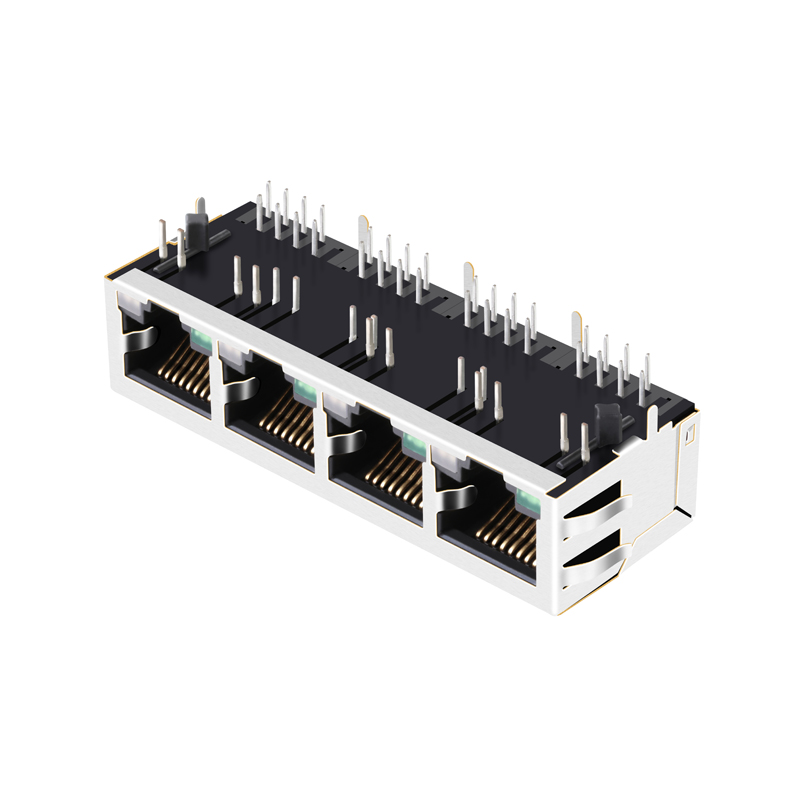

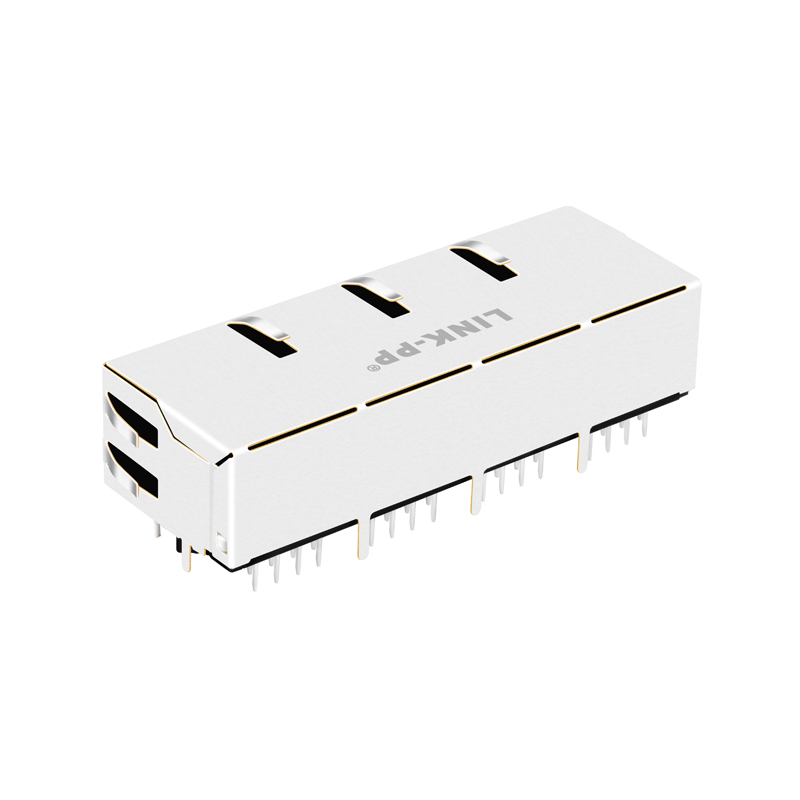

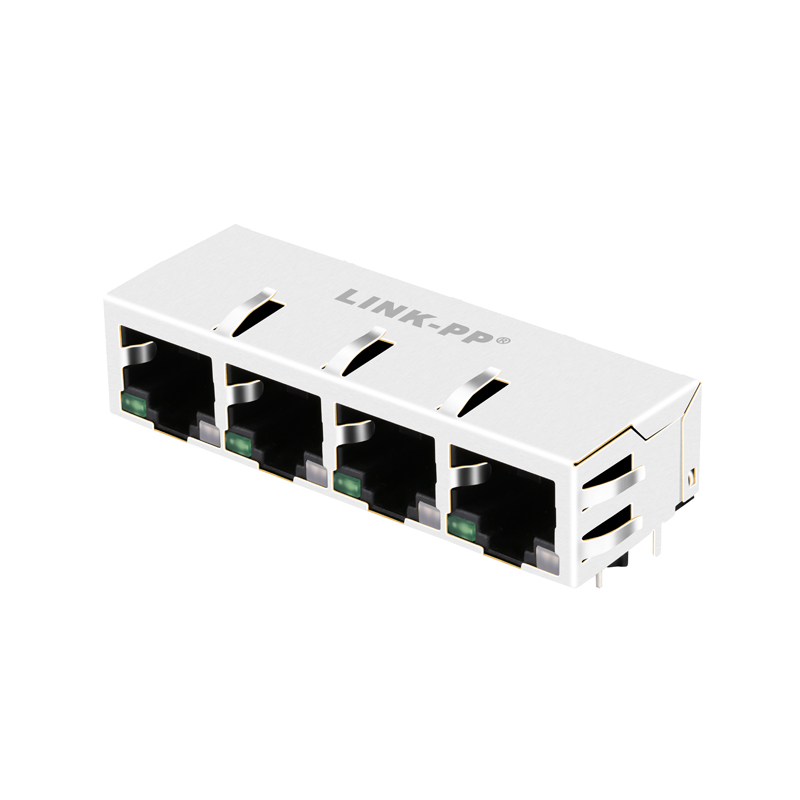

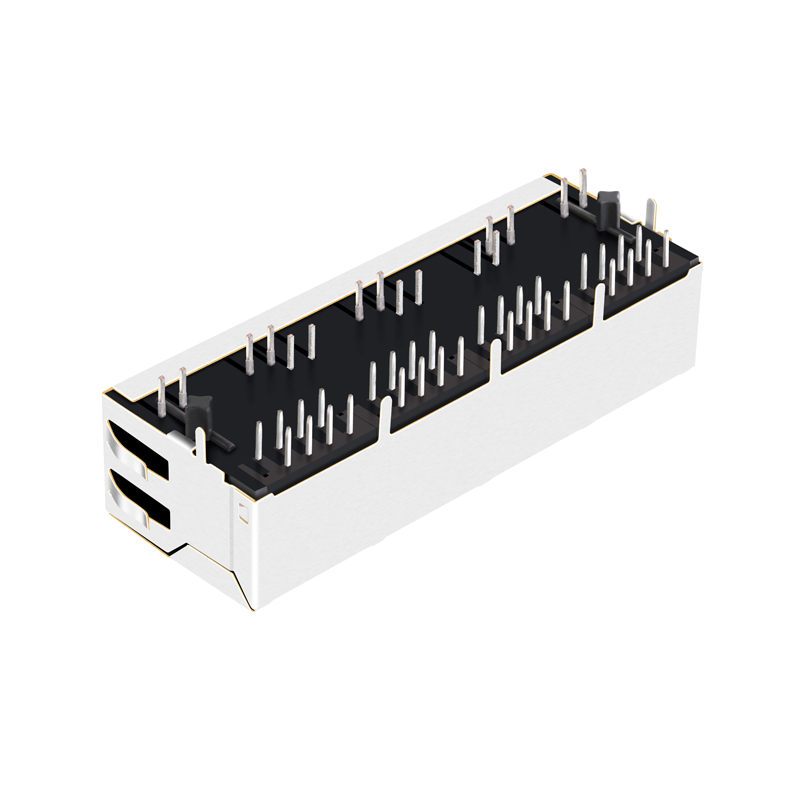

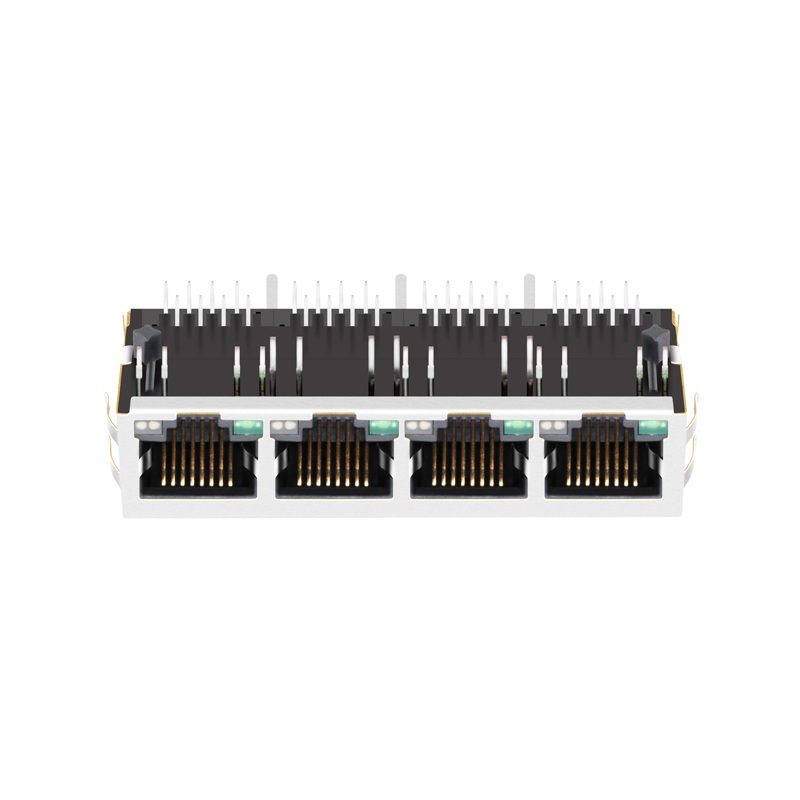

Product Specifications
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested).
- Quality Guarantee: 6 Years
- Delivery Time: 2-3 Weeks After Orders.
- Free Samples Are Available.
- Provide New Design For Customer Requirements.
- Highly discounted shipping rates via major global couriers.
Frequently Asked Questions (FAQ)
1. What is the standard data transfer speed of the 5-6610068-7 RJ45 connector?
This modular jack supports Gigabit Ethernet transmission speeds up to 1000 BASE-T, ensuring fast and reliable network performance.
2. What mounting configurations does this connector use?
It features a side entry (right-angle) design with THT (Through-Hole Technology) solder termination and a T-post PCB retaining post for mechanical stability.
3. Does it feature integrated LEDs, and what colors are available?
Yes, it includes integrated LED indicators with options for Green/Green and Orange colors to indicate visual link status.
4. What is the latch configuration of this RJ45 connector?
The connector features a Tab-Up latch configuration, which defines how the RJ45 cable release clip engages with the port.
5. Can this component withstand extreme temperatures?
Yes, the connector operates efficiently within a standard range of 0 to 70°C and is also qualified for industrial-grade environments spanning from -40 to 85°C.
6. Is the connector compliant with modern environmental directives?
Yes, it is RoHS compliant (RoHS-5 with lead-in-solder exemption) and adheres to Reach certification requirements.
