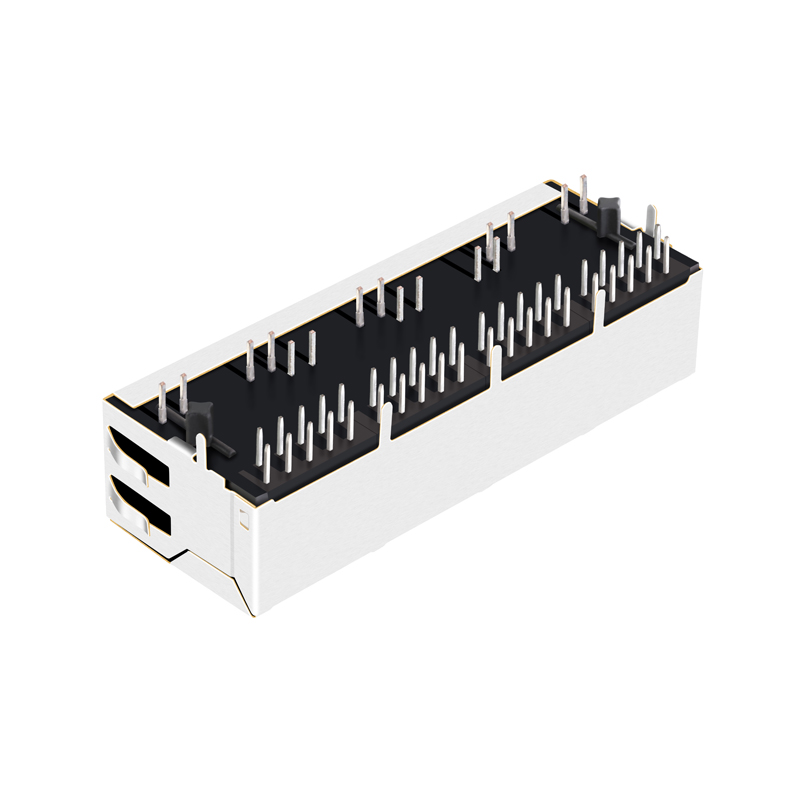

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description

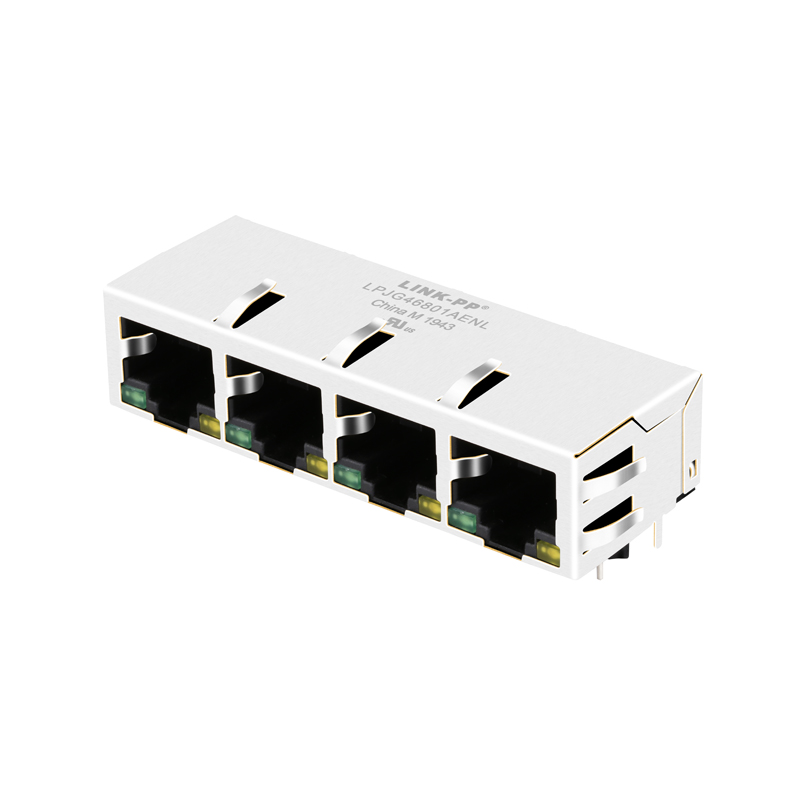

Product Layout Diagram 1

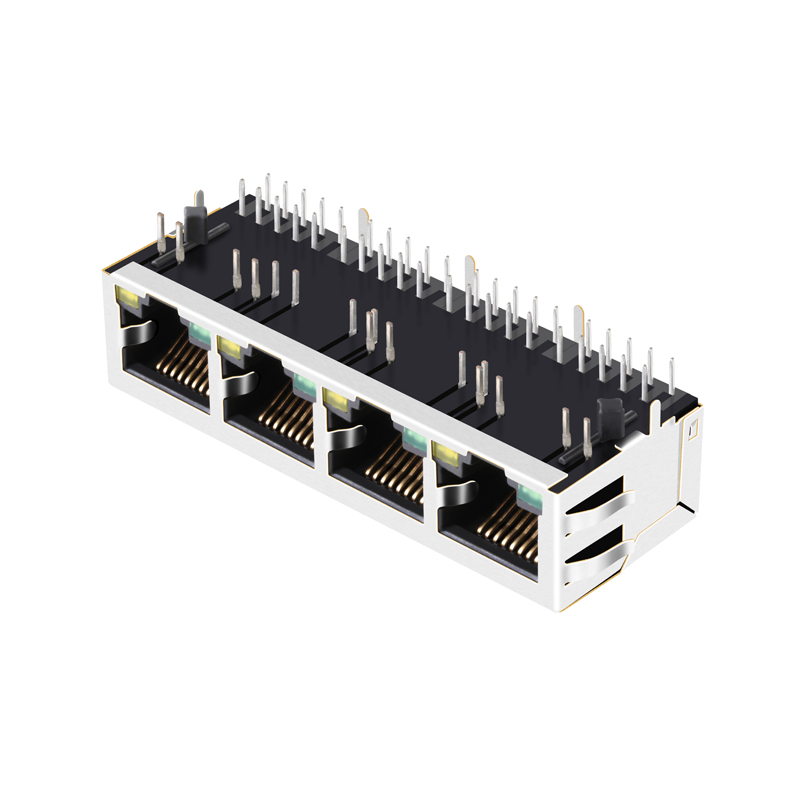

Product Layout Diagram 2
Specification
Item Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery
Packaging Details: 20 pcs in 1 tray, 20 tray in 1 carton (37*30*30cm, 10KGS, 400pcs of each carton).
Packaging Box Dimension Diagram
Product Construction Profile
100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
Applications & Performance Features:
  • Suitable for industrial temperatures from -40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most ICs for Ethernet applications such as Microchip, Broadcom, and Marvell
  • Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Technical Drawing Perspective
Product Front View
Product Side Profile View
Detailed Circuit Schematic
Solder Pin Configuration Detail
