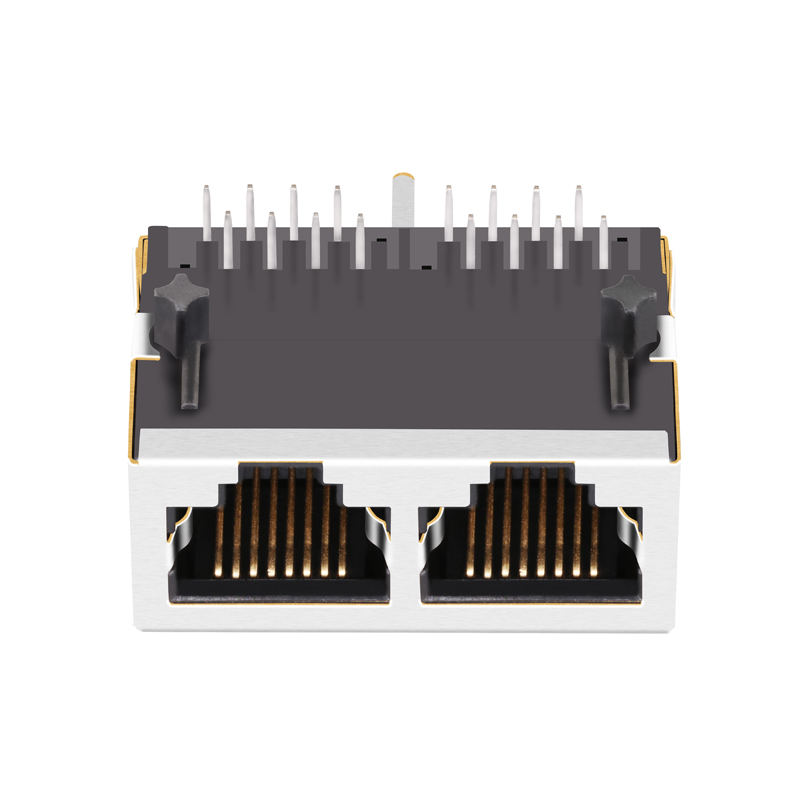

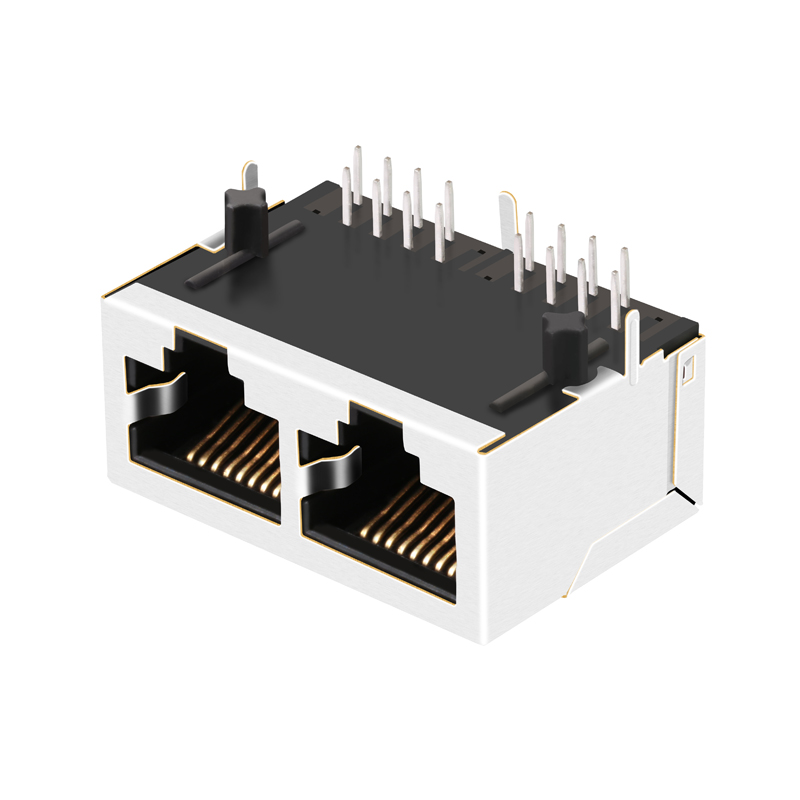

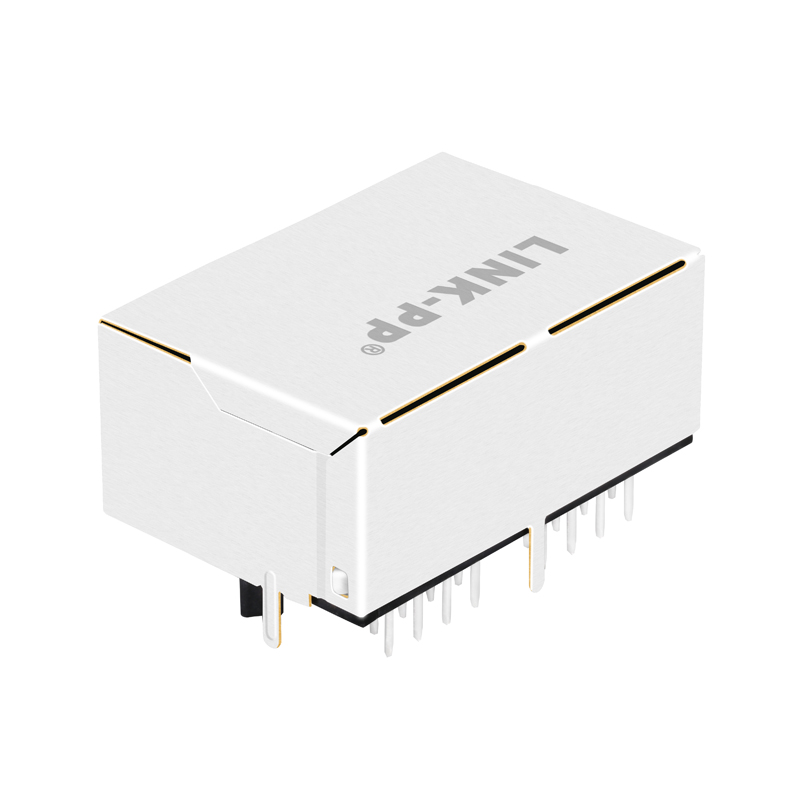

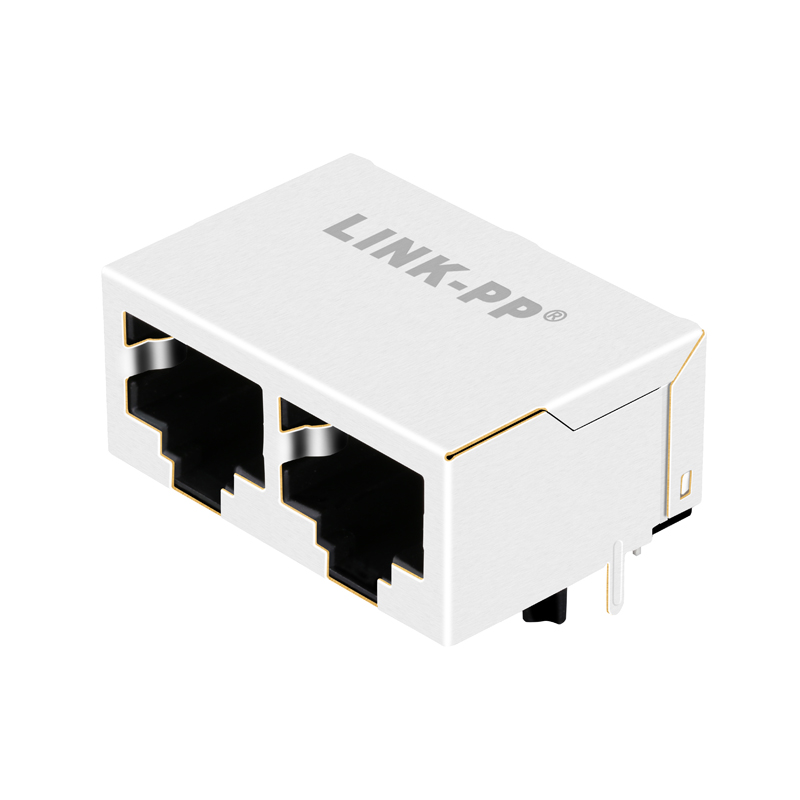

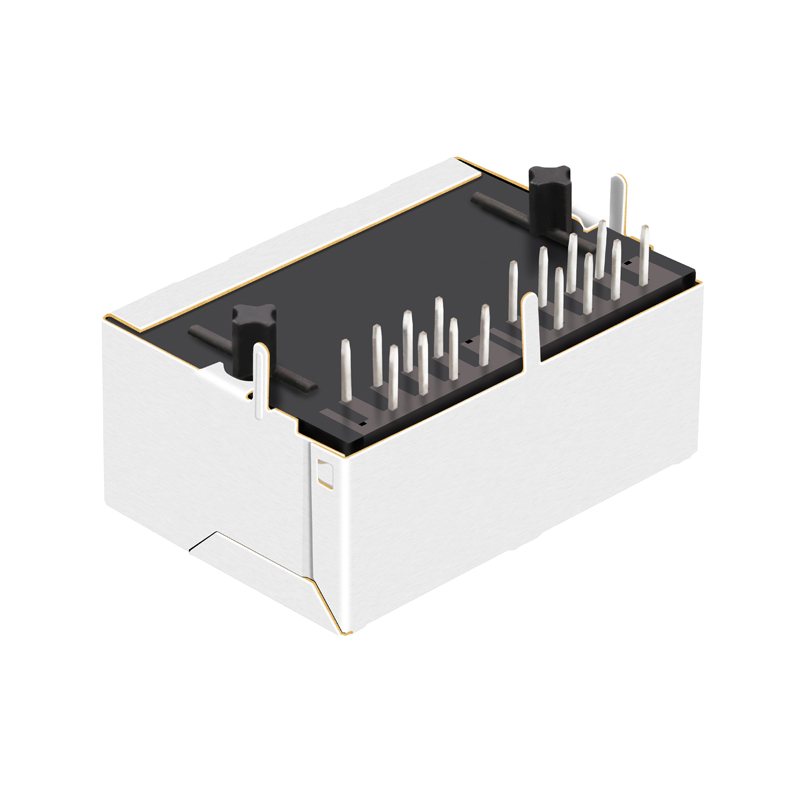

Without Integrated Magnetics 1x2 Port RJ45 Female Connector

Product Description

RJ45 Female Connector Category
Without Integrated Magnetics 1x2 Port RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Compatible With 10118061-5005010LF
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃/-40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Categories Link

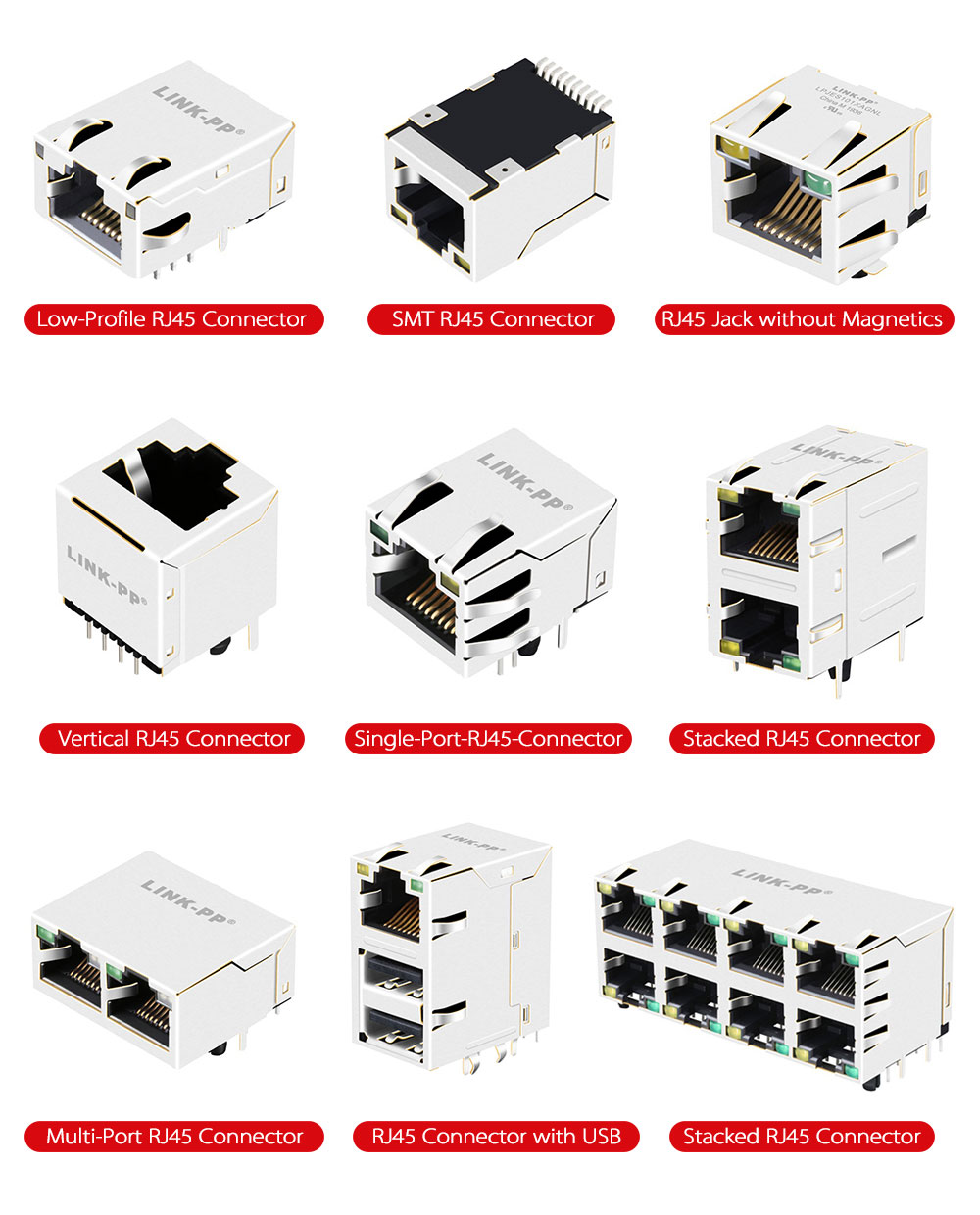

Connector Category Layout
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.

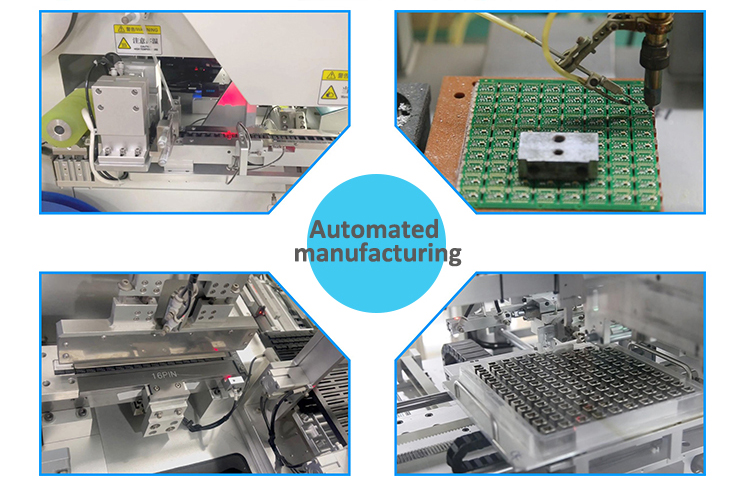

Production Facility 1
Production Facility 2

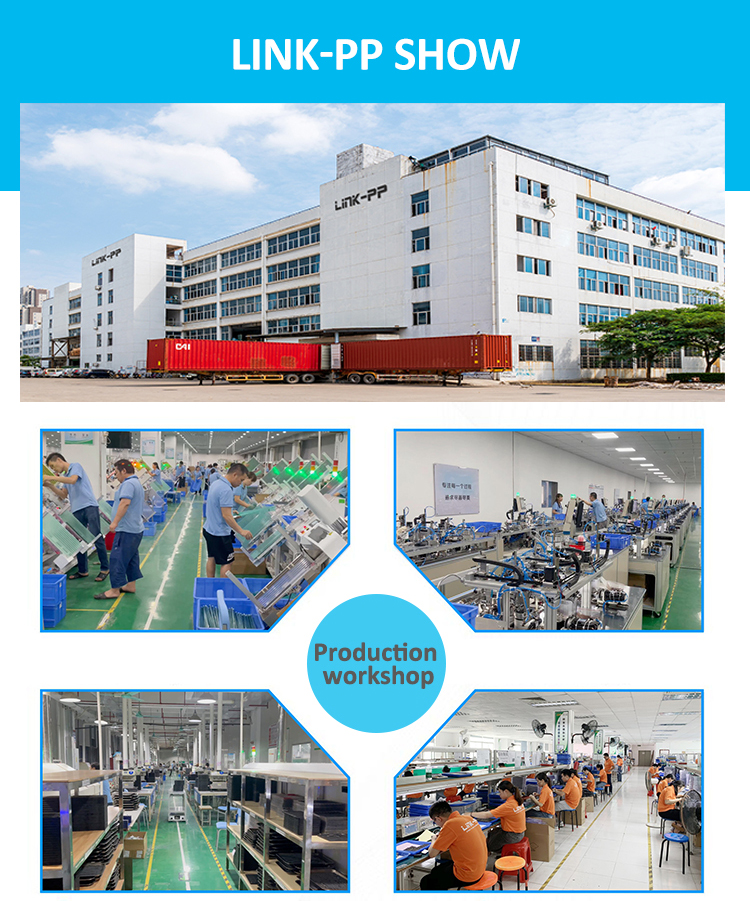

Production Facility 3
Production Facility 4
Production Facility 5
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
What is your delivery time?
We offer ready-to-ship options for items in stock, and 15-30 days for mass production orders.
What after-sales service can you offer?
We offer a one-year warranty period alongside 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion about your requirements.
What is your core advantage?
We possess 19 years of professional production experience as a trusted partner in the networking components industry.
