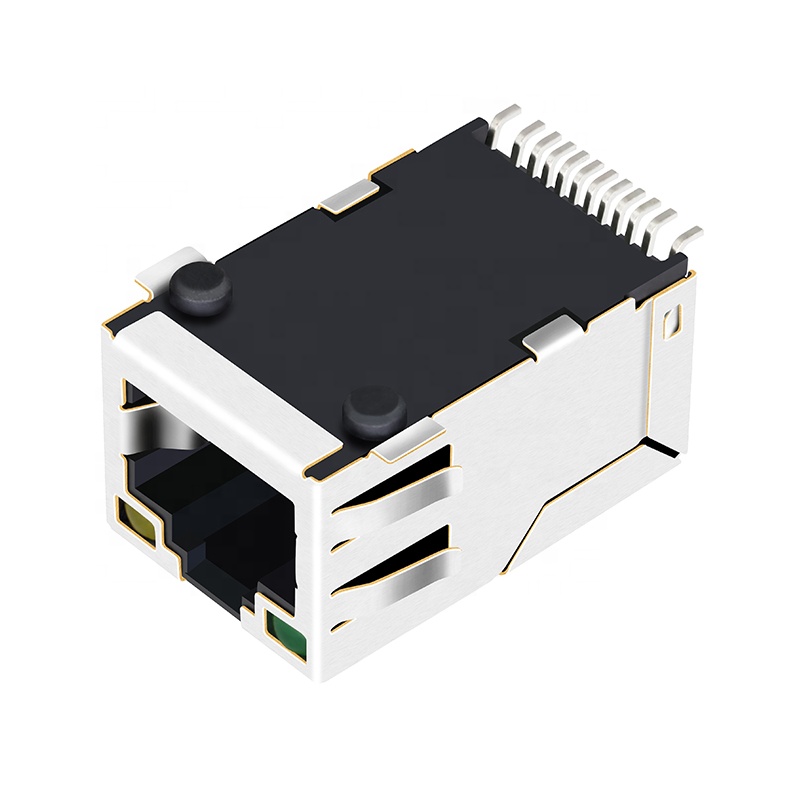

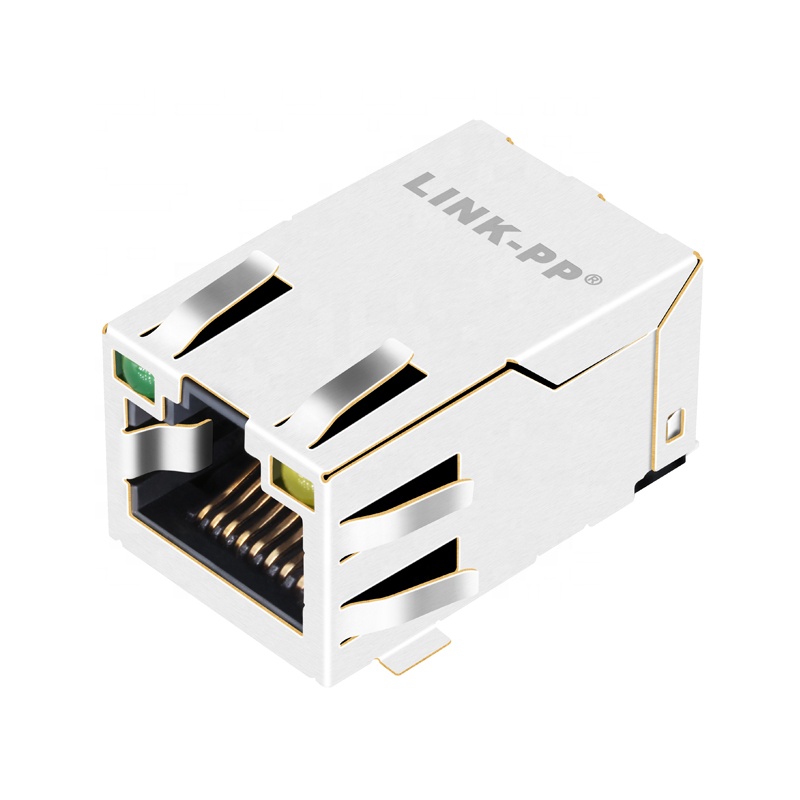

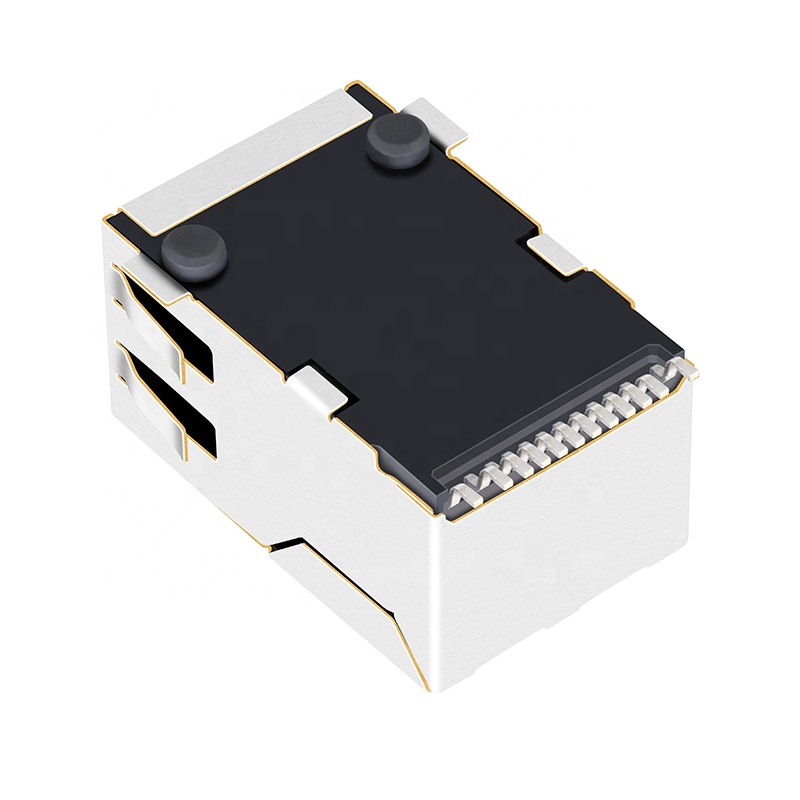

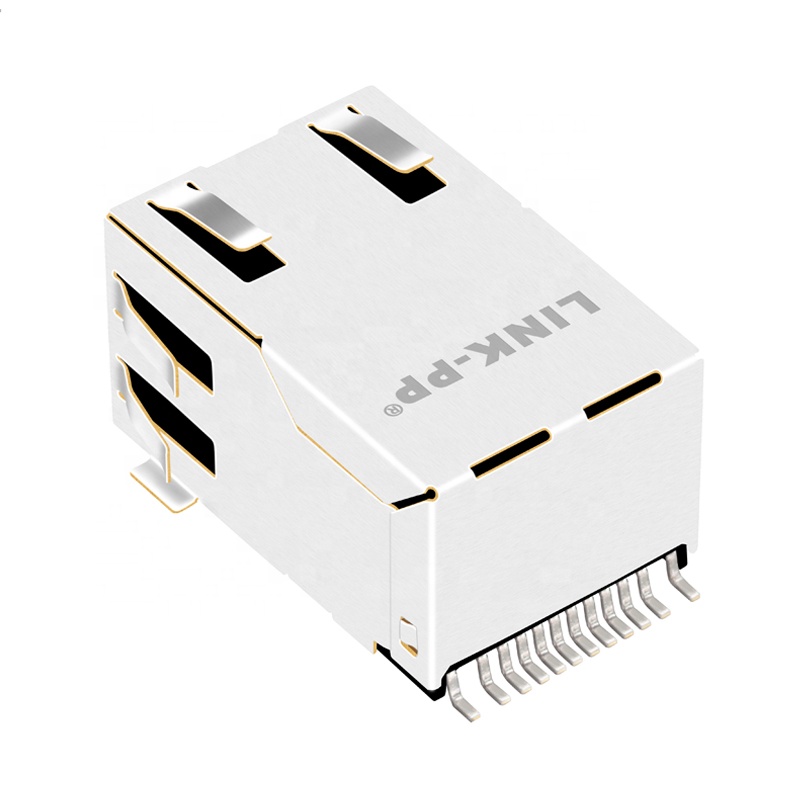

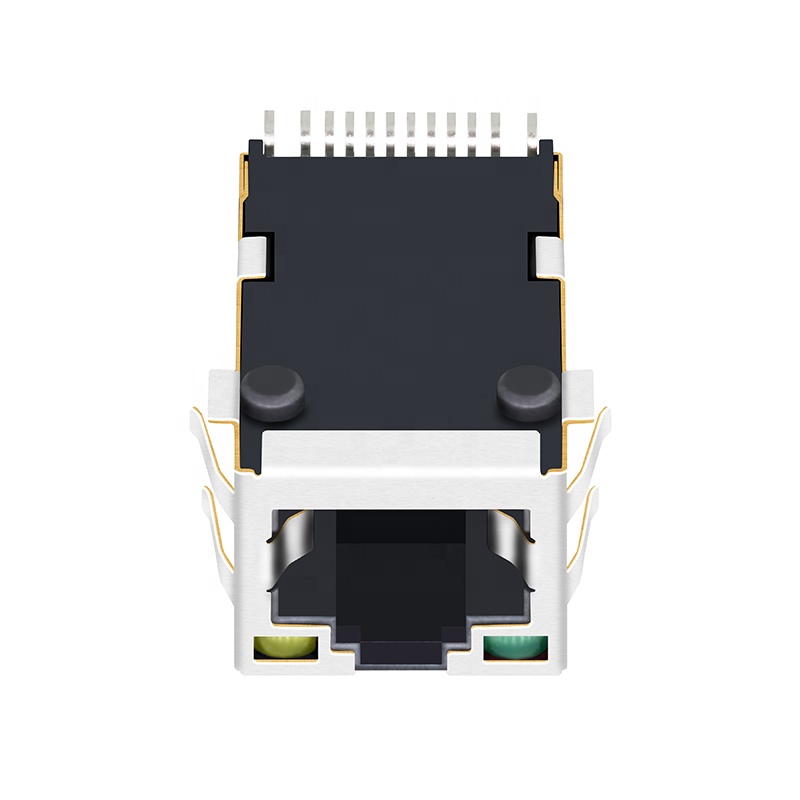

Tab up Surface Mount RJ45 Magjack SMT RJ45 Female Connector

Product Description

8-Pin Cat7 RJ45 Modular Jack
8-Pin Cat7 RJ45 Modular Jack With Hot Products
πŸ“¦ Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90Β° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Details 1 RJ45 Details 2
Product Image 1 Product Image 2 Product Image 3 Product Image 4
πŸ“’ Explore Our Related Products
Product Categories
Product Overview
Product Highlight 1 Product Highlight 2 Product Highlight 3 Product Highlight 4 Product Highlight 5 Product Highlight 6
🏒 Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Facility 1 Production Facility 2
πŸ’¬ FAQ
❓ 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
❓ 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for the shipping fee.
❓ 3. What is your delivery time?
Ready to ship for items in stock, and 15-30 days for mass production.
❓ 4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
❓ 5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
❓ 6. What is your advantage?
We possess 19 years of production experience and have been a trusted partner to global market leaders for many years.
