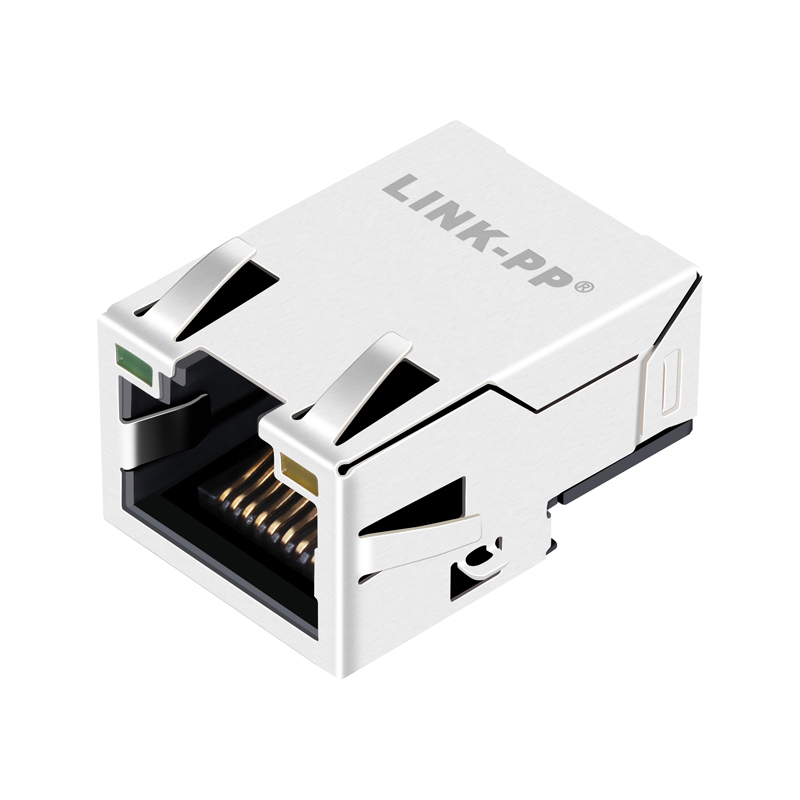

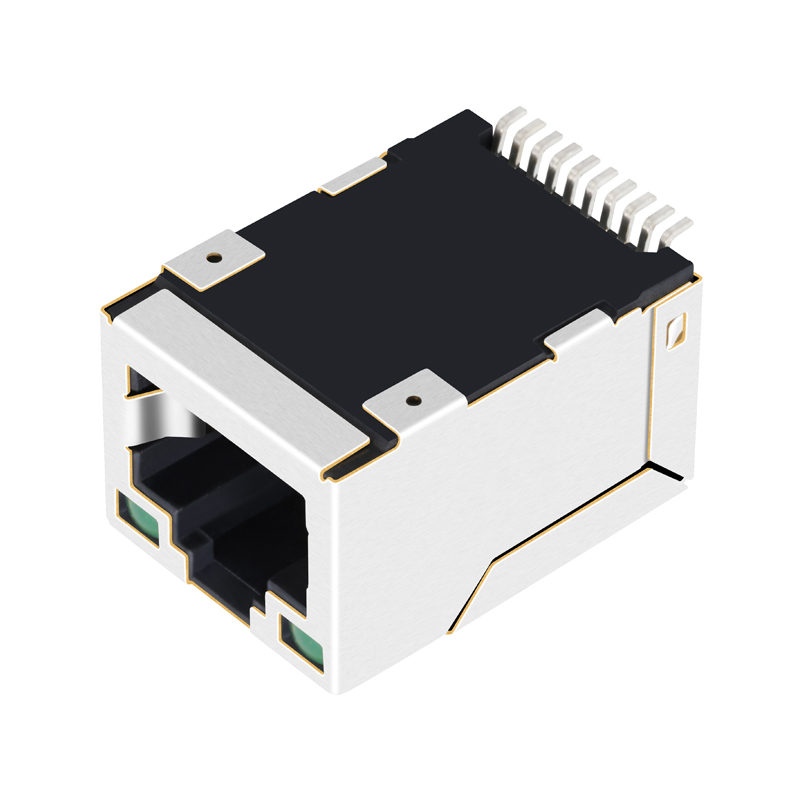

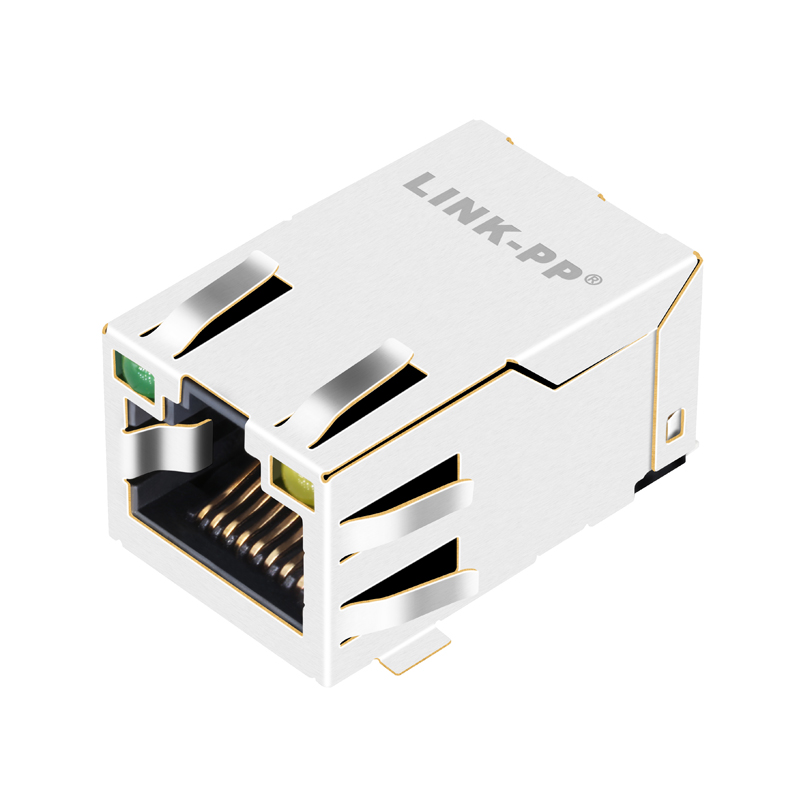

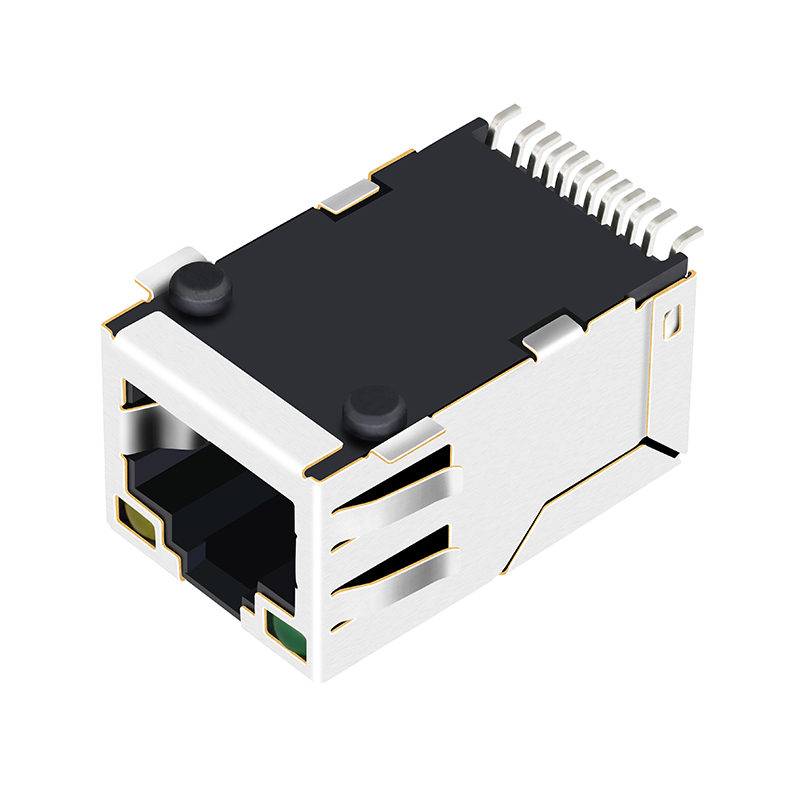

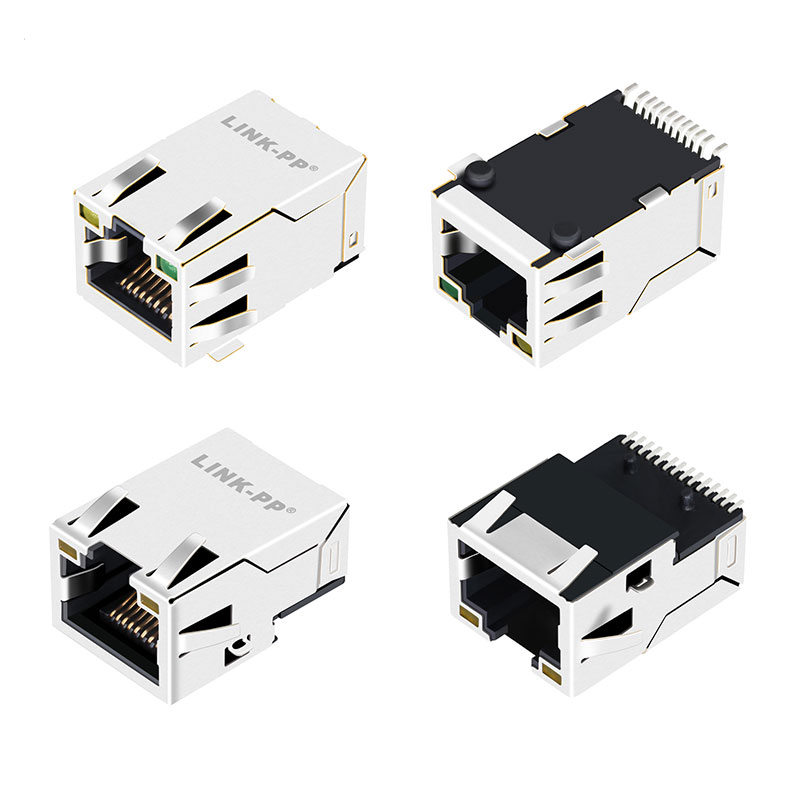

100/1000 Base-T RJ45 Ethernet Connector Modules 10P8C 8P8C POE Non POE SMT SMD for B2B Global Purchasers

Product Description

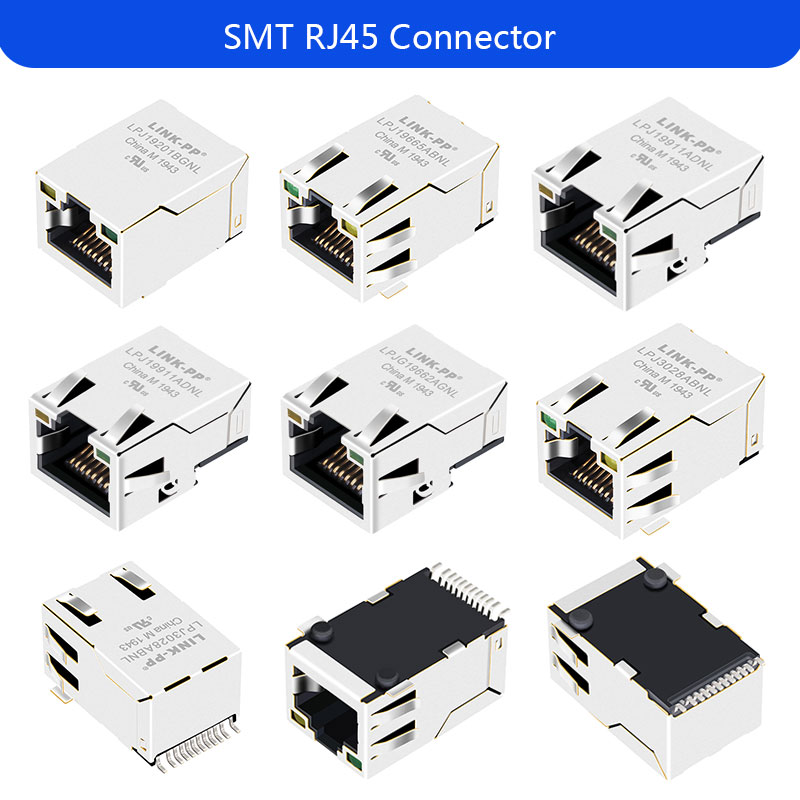

Characteristics

RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores

Specification

Item	Value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

Package Specifications

Package: Tray

Carton size: 34.5*34.5*27cm

G.W./carton: 6.9kg

Qty/carton: 550pcs

SPQ: 110pcs

N.W/pcs: 0.013kg

Overview & Facilities

Frequently Asked Questions

Q1 What regions are covered by your distribution network?

Our distribution networks serve major global markets, including North America (21.00%), South America (17.00%), Southeast Asia (16.00%), Eastern Europe (16.00%), Africa (9.00%), Oceania (6.00%), Eastern Asia (3.00%), Mid East (3.00%), Western Europe (2.00%), South Asia (1.00%), Northern Europe (1.00%), and Central America (1.00%).

Q2 How do you guarantee the quality of your products?

We implement a strict quality control workflow, which always includes a pre-production sample before mass production starts and a final inspection before shipment.

Q3 What products are available to purchase?

We offer a wide range of network components, including RJ45 Magnetic, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.

Q4 Why should customers buy from you instead of other suppliers?

1. We are a specialized manufacturer of RJ45 connectors and LAN transformers with 19 years of industry experience.
2. Certified by global standards including SGS, ISO9001:2008, UL, REACH, and CE.
3. Equipped with a strong production capacity of up to 30,000K per week to handle large-scale demands.

Q5 What delivery terms and payment methods do you support?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow.
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.

Q6 What are the key performance features of your RJ45 Connectors?

Our RJ45 Connectors are built with integrated transformers / common mode chokes. They support Power over Ethernet (PoE) up to 50 Watt, reach speeds up to 10 Gbit/s, and are compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards. The HPLE products feature NiZn cores for improved Common Mode Rejection.
