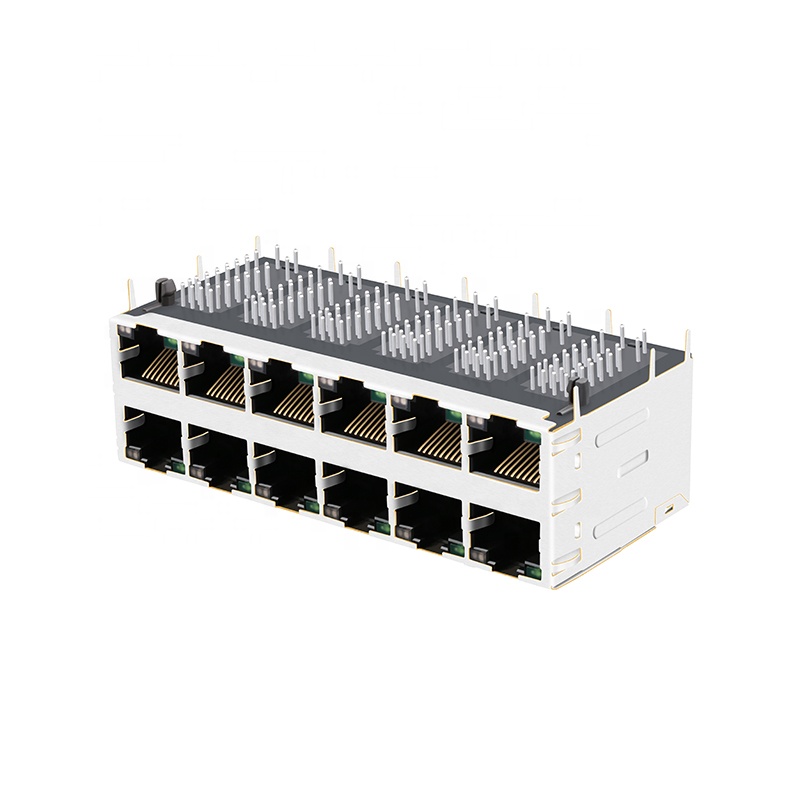

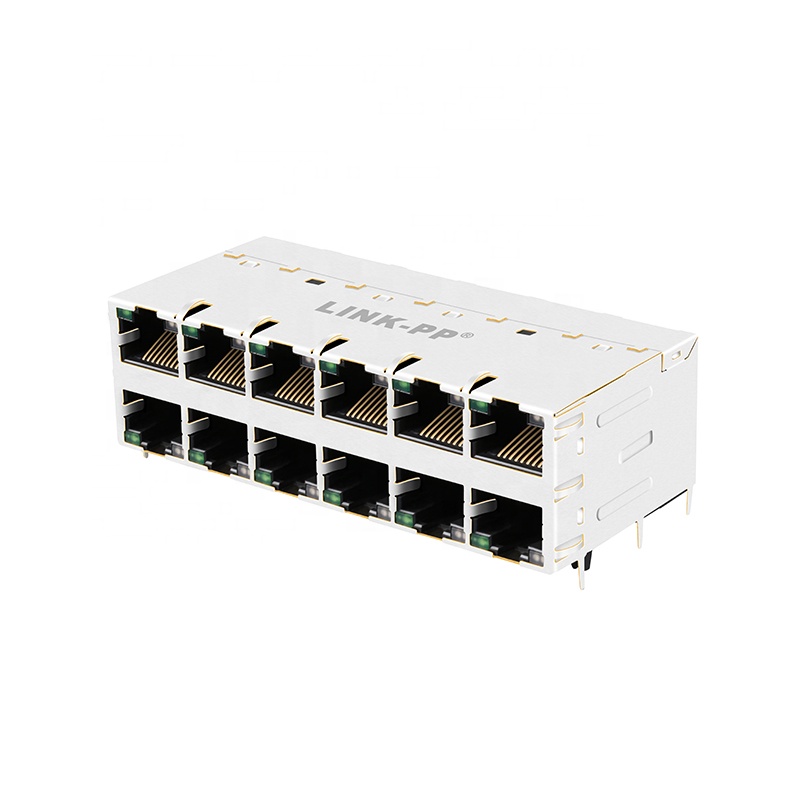

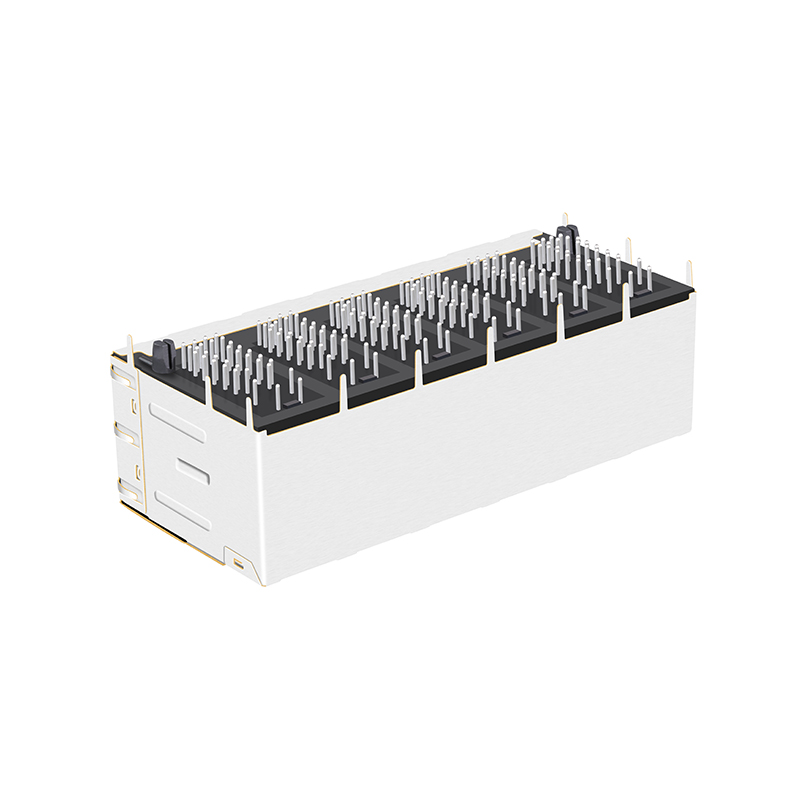

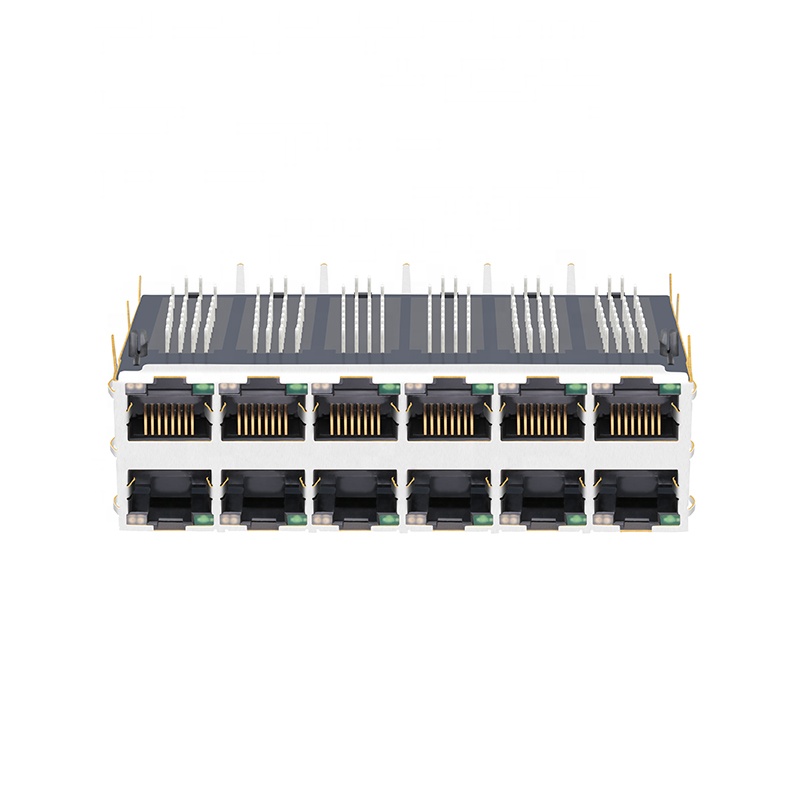

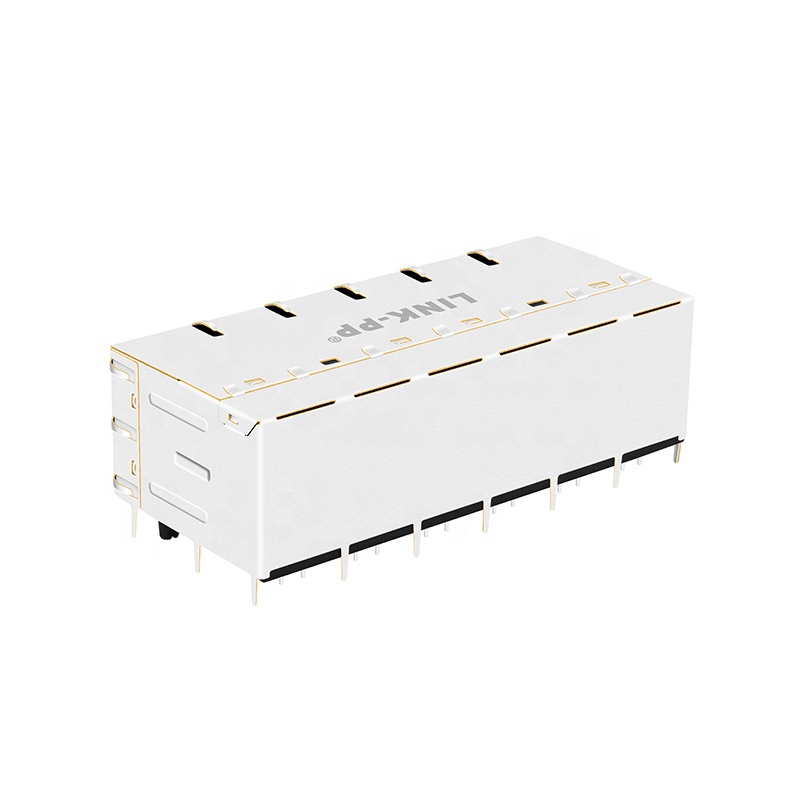

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
1 / 5
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

Send Inquiry

Product Description

RJ45 Connector Overview
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Compatible With XFATM8-STACK12-4
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x6 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Diagram
Click Below Products Link To Get More
Product Categories Overview
Product Performance Chart
Production Process 1 Production Process 2 Production Process 3
Quality Standard Certificate 1 Quality Standard Certificate 2
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
A global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Environment 1 Factory Environment 2 Factory Environment 3
FAQ
Q 1. Are you factory or trading company?
A specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Q 2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Q 3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q 4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q 5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q 6. What is your advantage?
19 years of production experience and we are intel's and Jabil's partner for many years.
