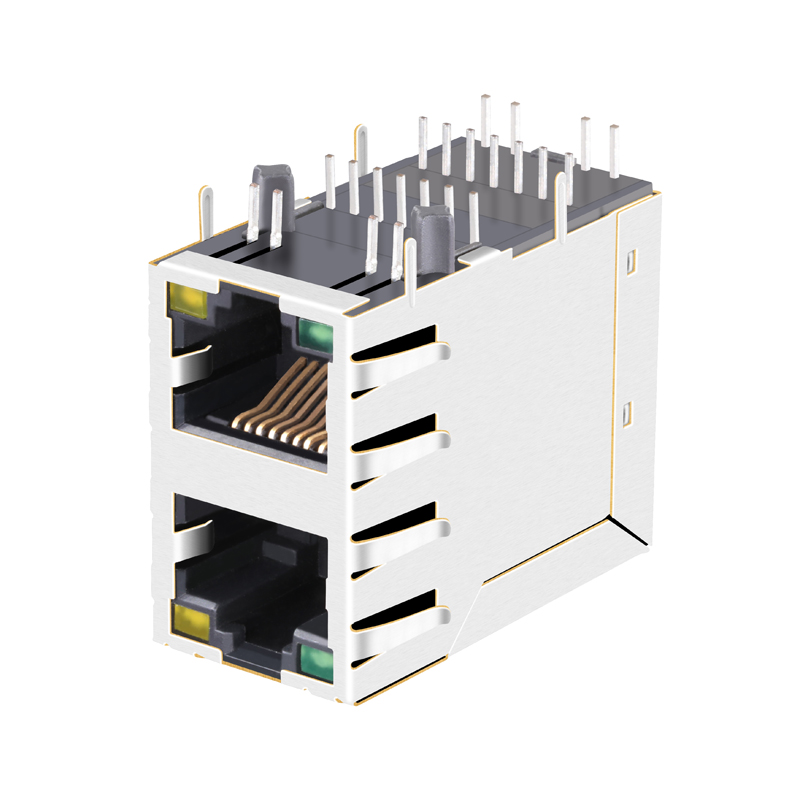

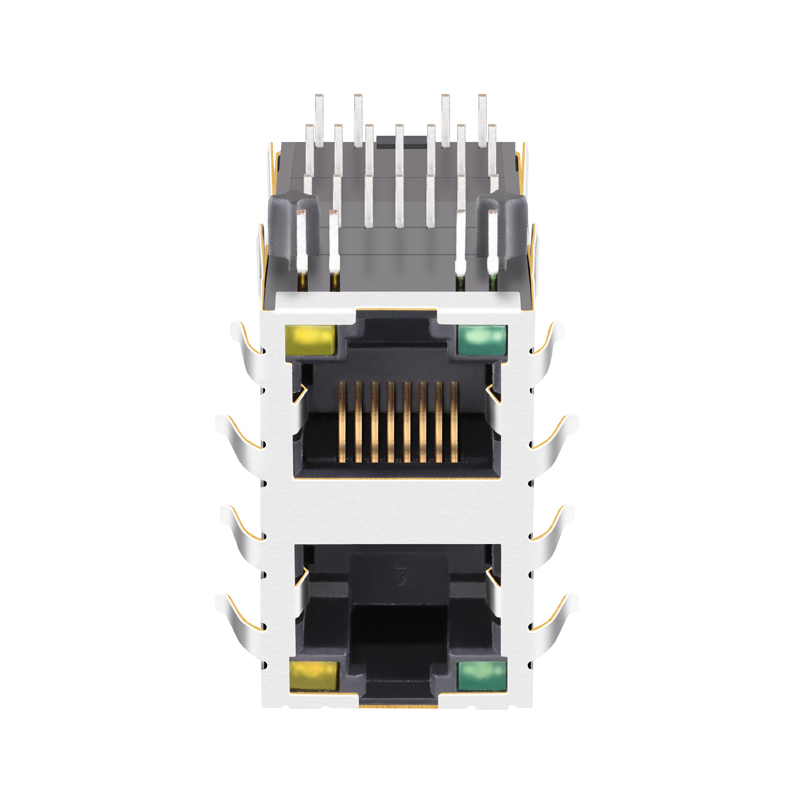

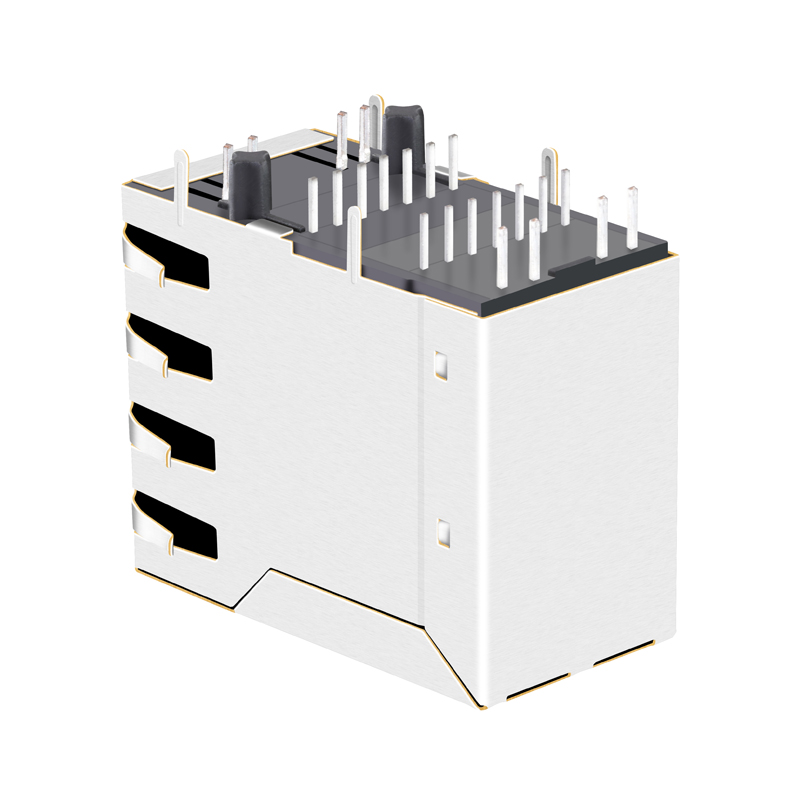

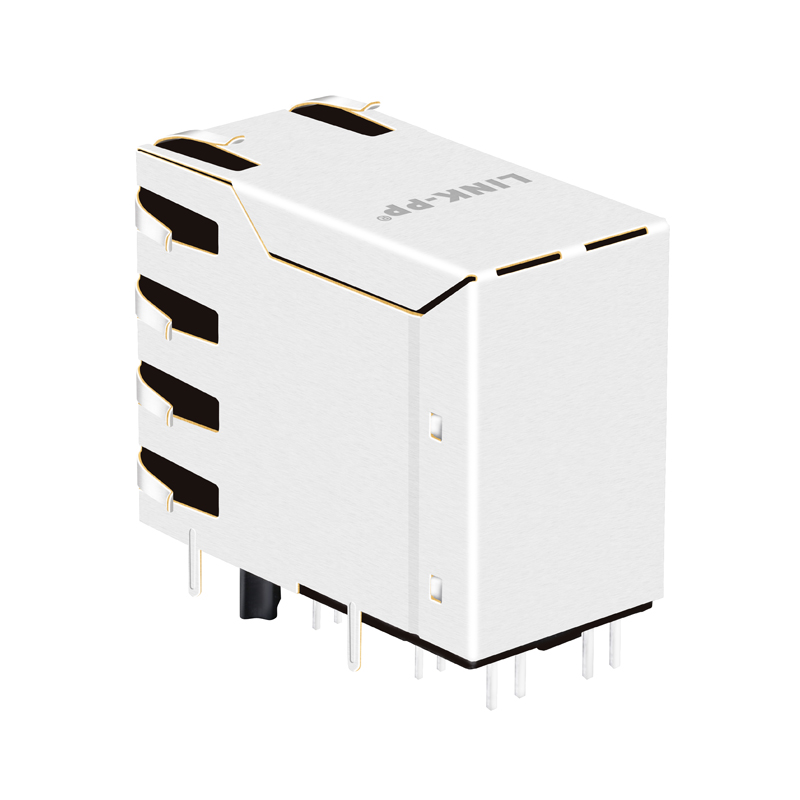

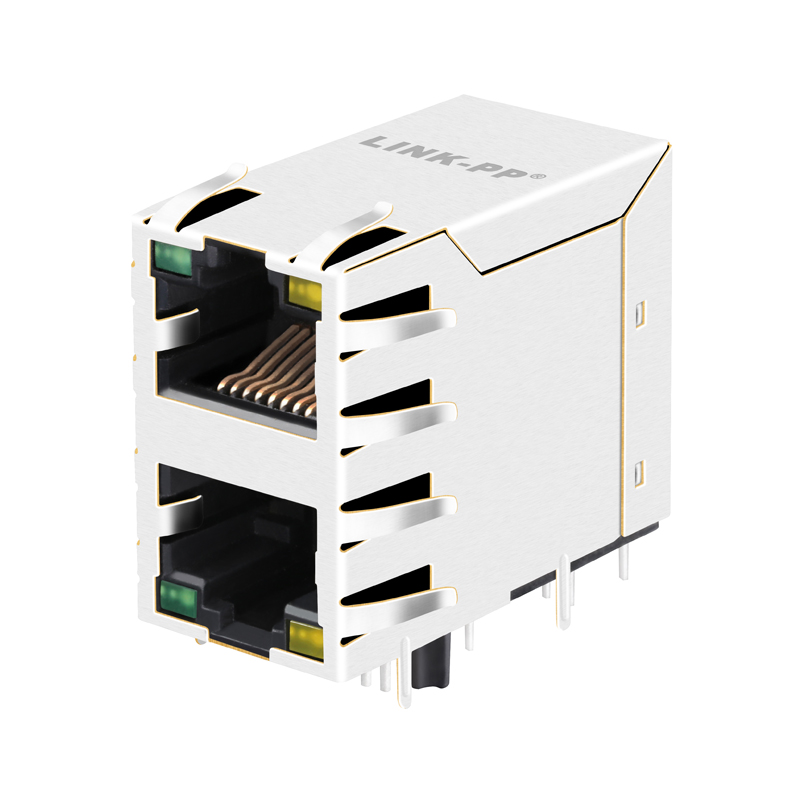

Double-Layer 1000 base-t 2x1 port rj45 connector RJMG12163226600R RJMG163003101NR RJSAE-5384-02 SS-7388H11S-NF-50

Product Description

Product Categories Overview
Double-Layer 1000 base-t 2x1 port rj45 connector RJMG12163226600R RJMG163003101NR RJSAE-5384-02 SS-7388H11S-NF-50
Products Description
Item RJ45 Female Connector
Compatible With RJMG12163226600R RJMG163003101NR RJSAE-5384-02
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Technical Diagram
Product Lineup Map
Product Showcase 1
Product Showcase 2
Product Showcase 3
Product Feature 1
Product Feature 2
Product Feature 3
Product Feature 4
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve over 10,000+ customers across 200 countries. By building multi-warehouse systems in key regional markets and continuously optimizing inventory levels, we are fully committed to leading the industry in Ethernet RJ45 connectors and LAN transformer solutions.
Manufacturing Facility 1
Manufacturing Facility 2
Quality Inspection
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping costs.
3. What is your delivery time?
Ready-to-ship items are dispatched from stock, and it takes 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can proceed with a detailed discussion.
6. What is your advantage?
We have 19 years of professional production experience and long-term partnerships with world-leading enterprises.
