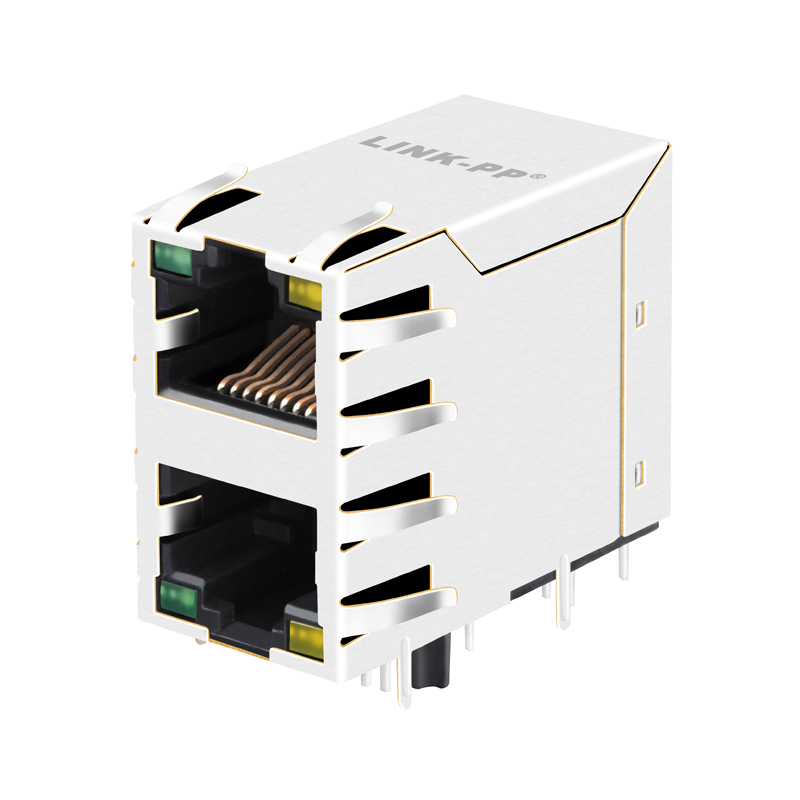

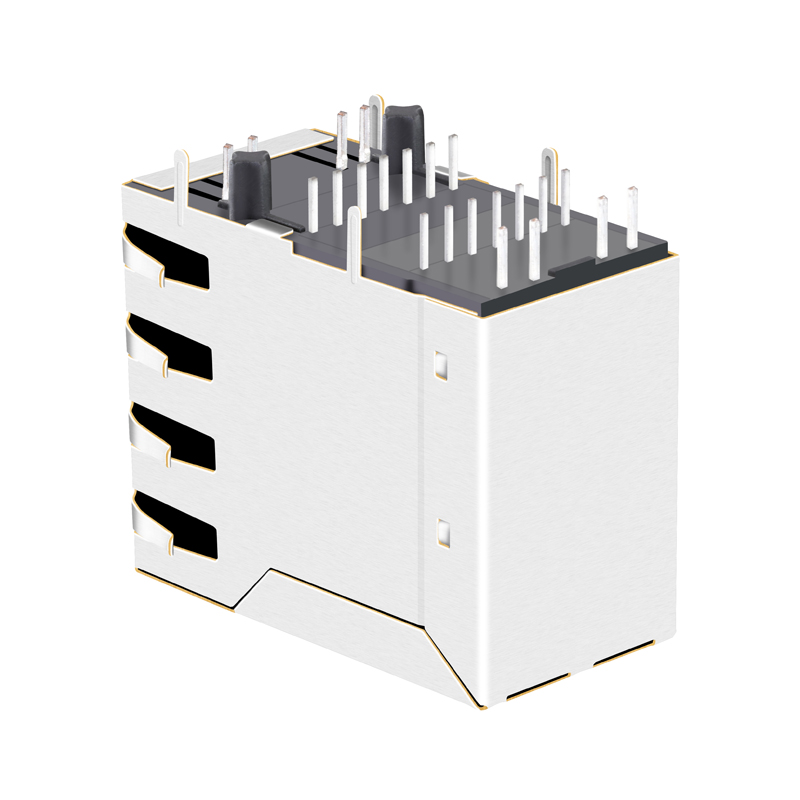

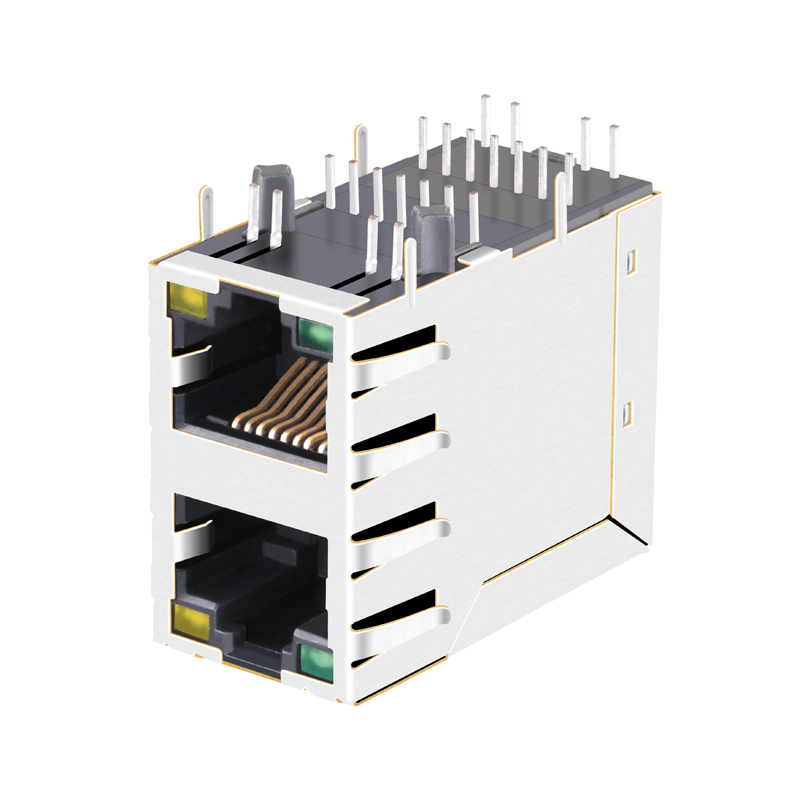

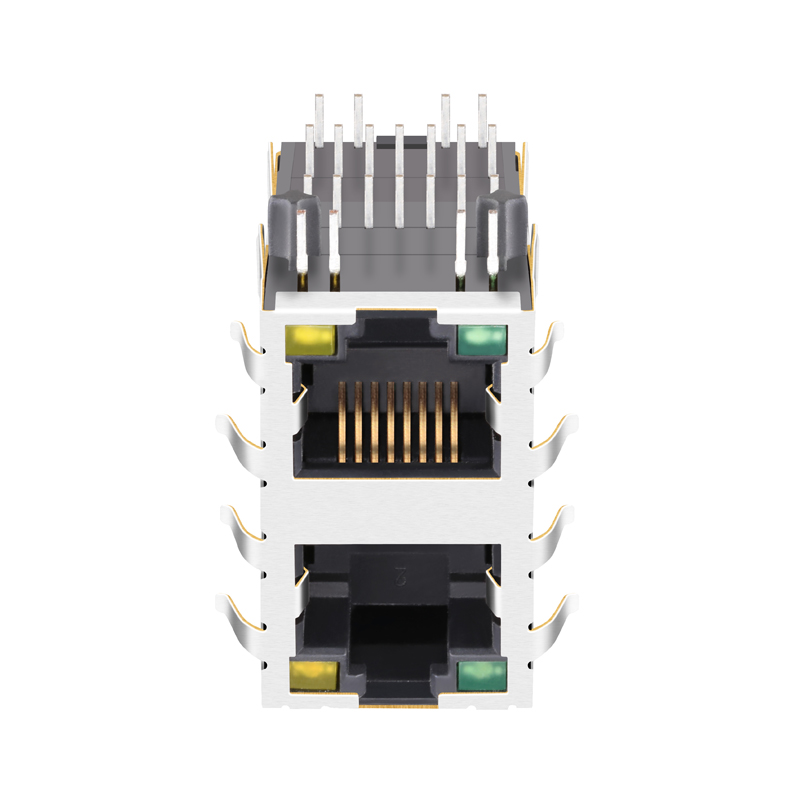

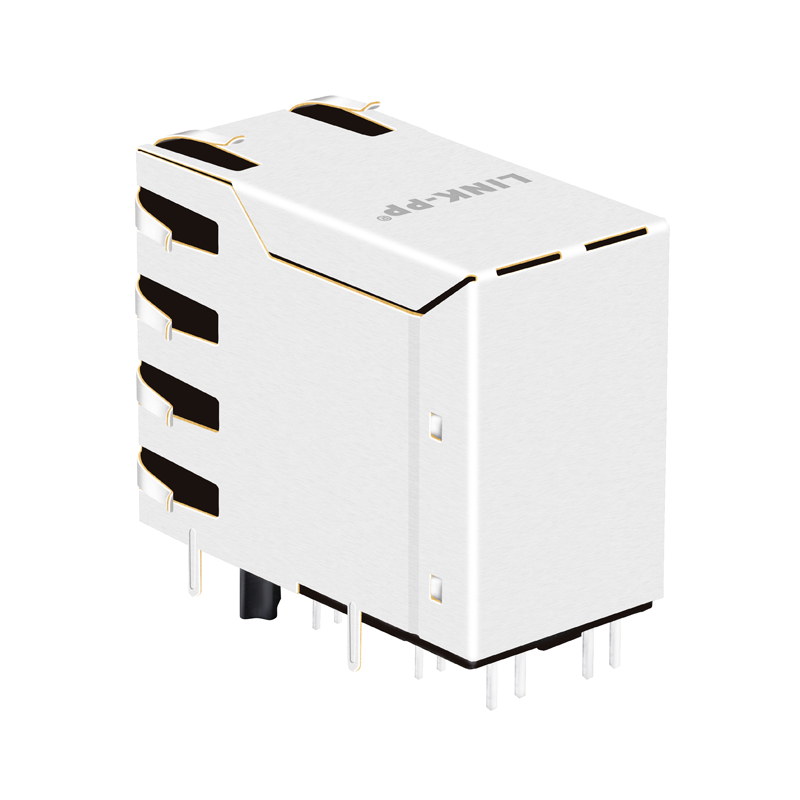

China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
1 / 5
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Send Inquiry

Product Description

China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack

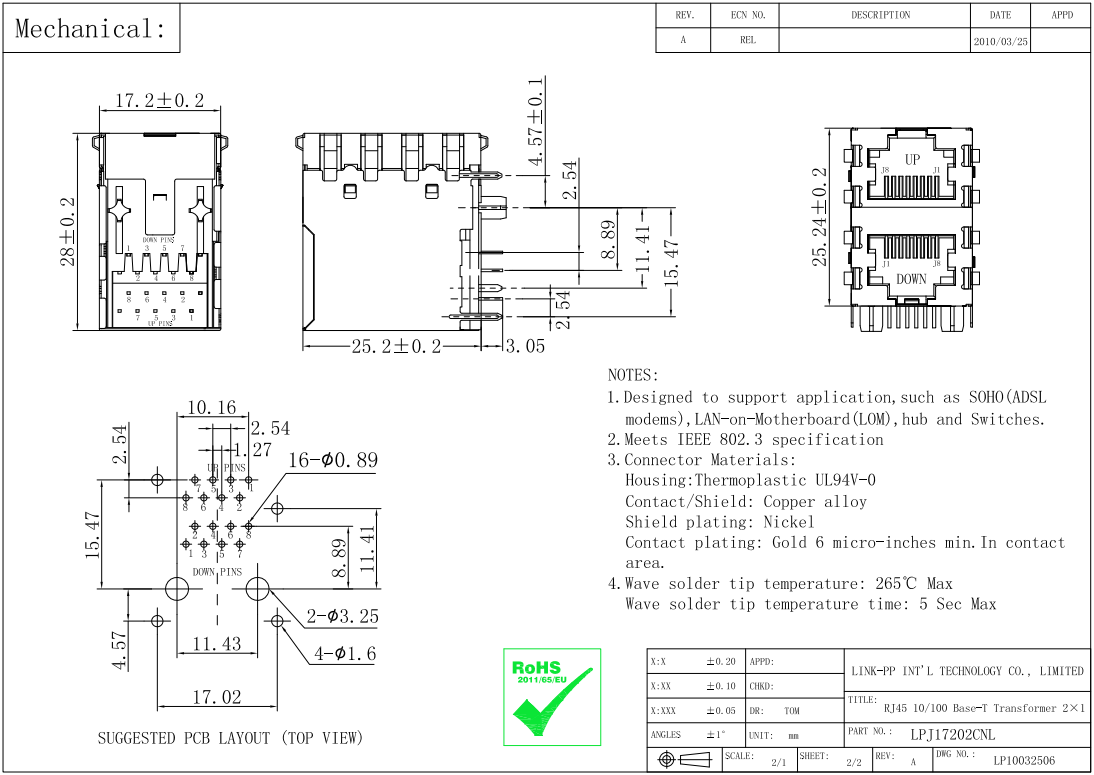

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number LPJ17202CNL
WE Part Number MIC24A10-0101W-LF3 / 7499051002
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port NO
Diodes NO DIODES
LED Option Without
Latch TAB DOWN / Up
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With
Speed 10/100 Base-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Quality Guarantee
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Partner of major global connector brands for 9 years
  • Successful Customer: Texas Instruments, Samsung, Cisco, Siemens, Intel...
  • Preferred Supplier of leading global companies
  • Quality Guarantee: 6 Years
Competitive Price & Service
  • More Competitive Price Than Pulse, Tyco, Halo, Wurth And Amphenol
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
  • 90% Off Shipping Cost by DHL, UPS, FEDEX or TNT
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack

• Preferred Supplier Of TI Samsung Cisco Siemens ...

• You Will Look At The Logo On BeagleBone Board

China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
China Manufactures 2x1 Port Shielded RJ45 Modular Jack
Frequently Asked Questions
What is the application range of this 2x1 Port Shielded RJ45 Jack?
It is widely used in standard Ethernet applications that do not require Power over Ethernet (Non-PoE) configurations, providing reliable signal transmission for network interface cards, routers, and switches.
Does this RJ45 connector include LED status indicators?
No, this specific model is designed without LED lights, supporting a clean tab down/up profile.
What is the operating temperature range for this component?
This connector is built to perform in industrial environments with a working temperature range of -40°C to +85°C.
Can I get free samples for validation before making a bulk order?
Yes, free samples are available to customers looking to test compatibility and performance with their custom hardware designs.
What type of certifications does this product hold?
The product is manufactured under strict controls complying with ISO 9001:2008 standards, UL Certification, Reach Certification, and RoHS Compliance.
What is the transmission speed of this RJ45 modular jack?
It operates at standard 10/100 Base-T speeds, suitable for fast Ethernet connectivity.
