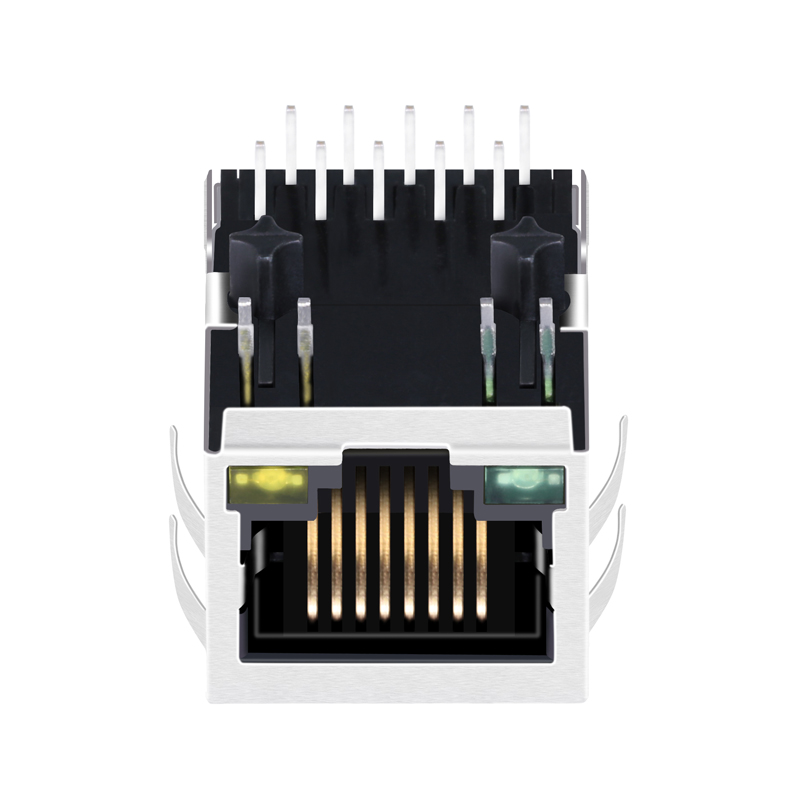

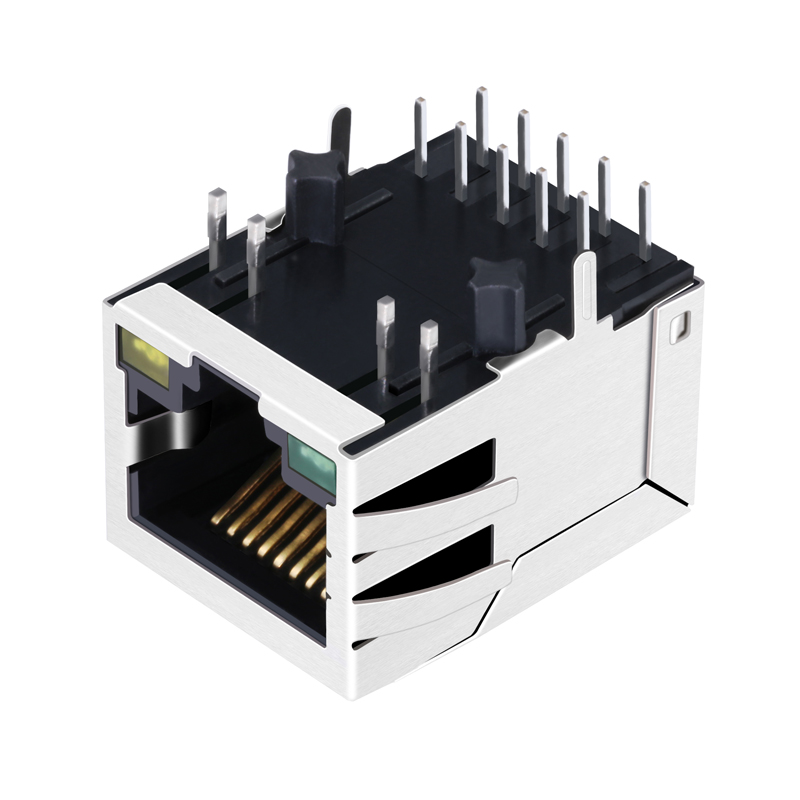

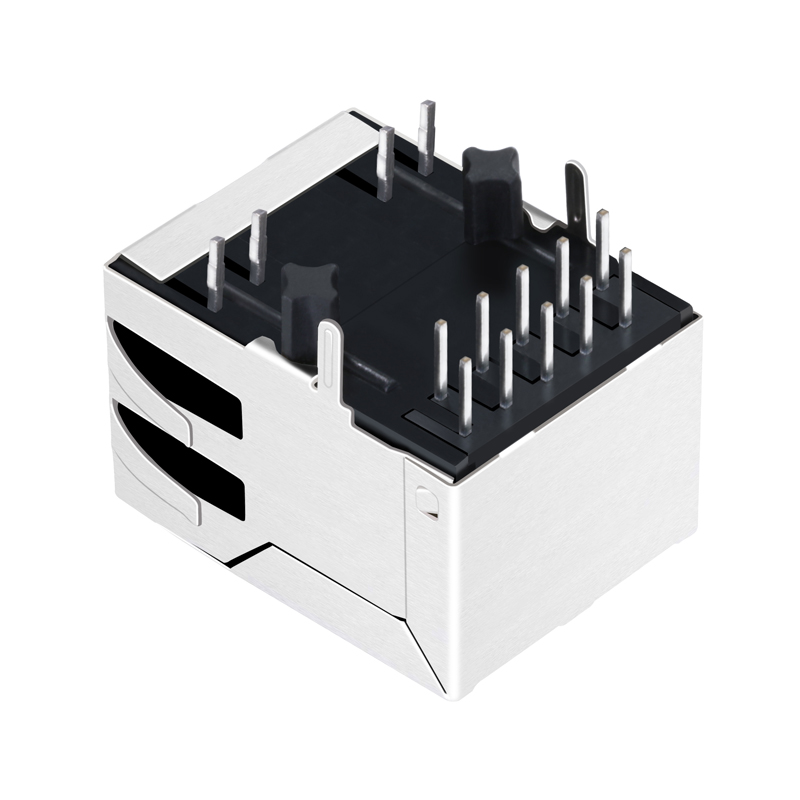

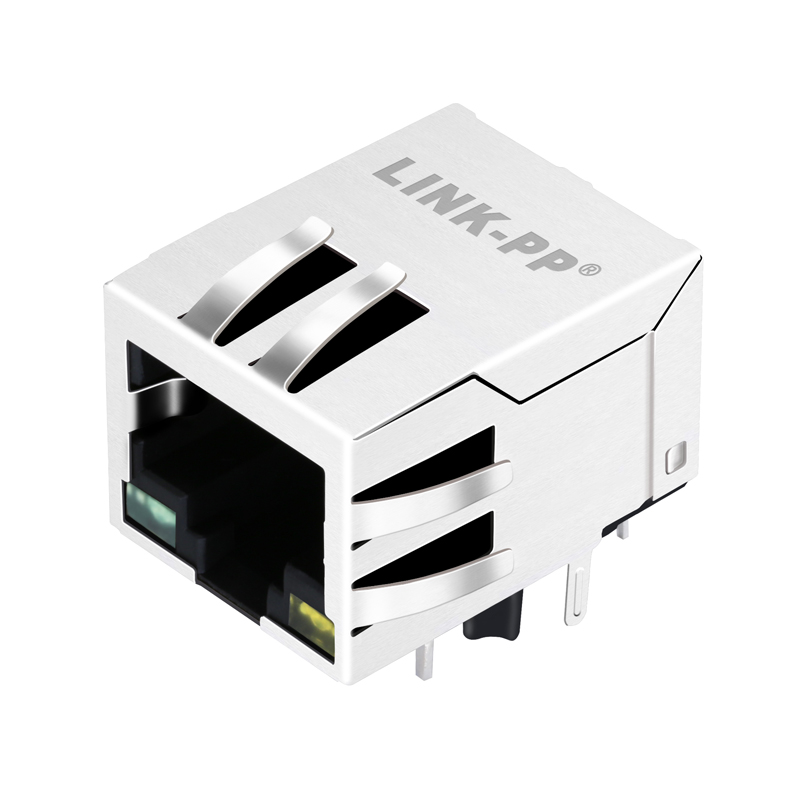

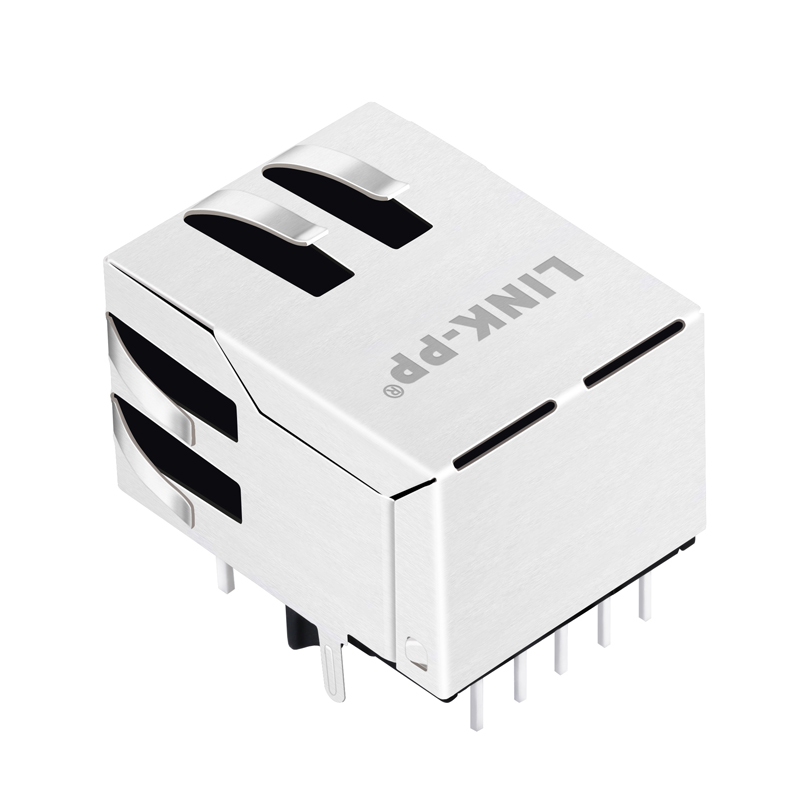

| Item | RJ45 Female Connector |
| Compatible With | 000-7090-30 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Side Entry |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T Post |
| Temperature | 0℃ to 70℃ / -40℃ to 85℃ |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | Gold 6u" / 15u" / 30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, with the shipping fee covered by the buyer.
Products in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiry to us so that we can discuss your specific requirements in detail.
We have 19 years of dedicated production experience and have partnered with leading global enterprises for many years.
