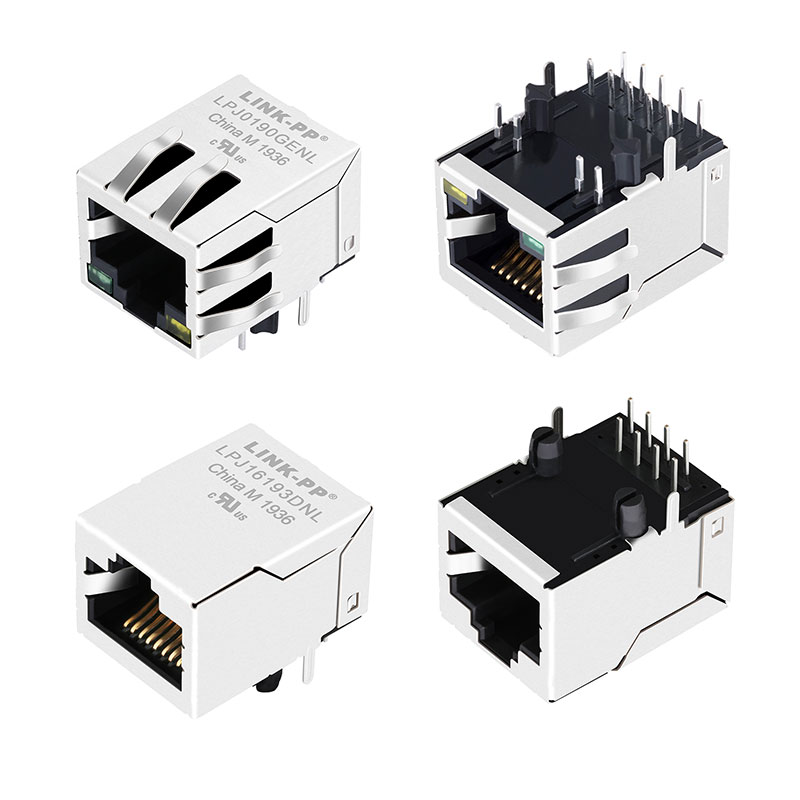

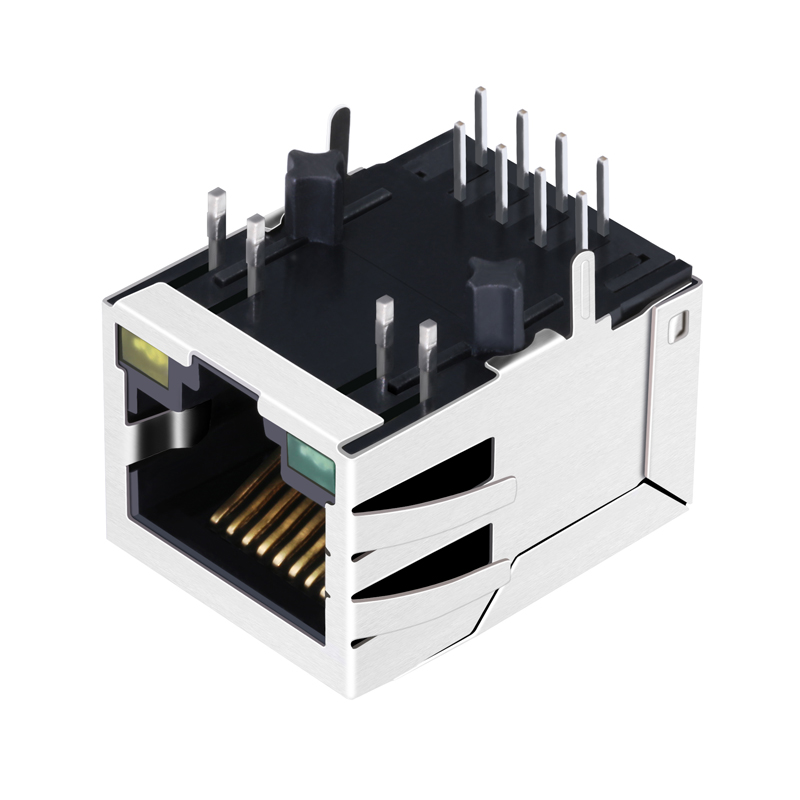

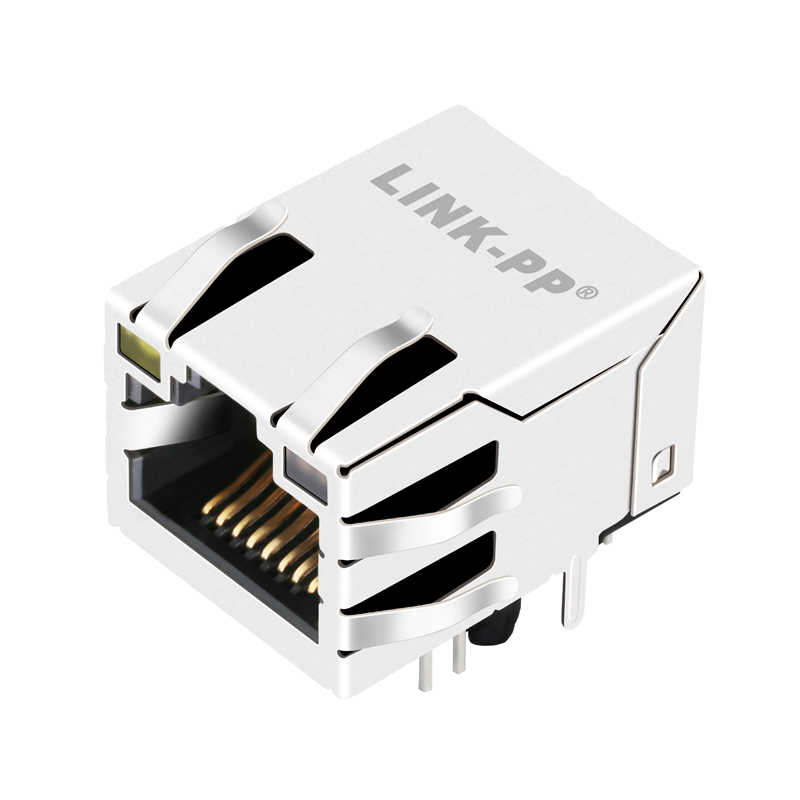

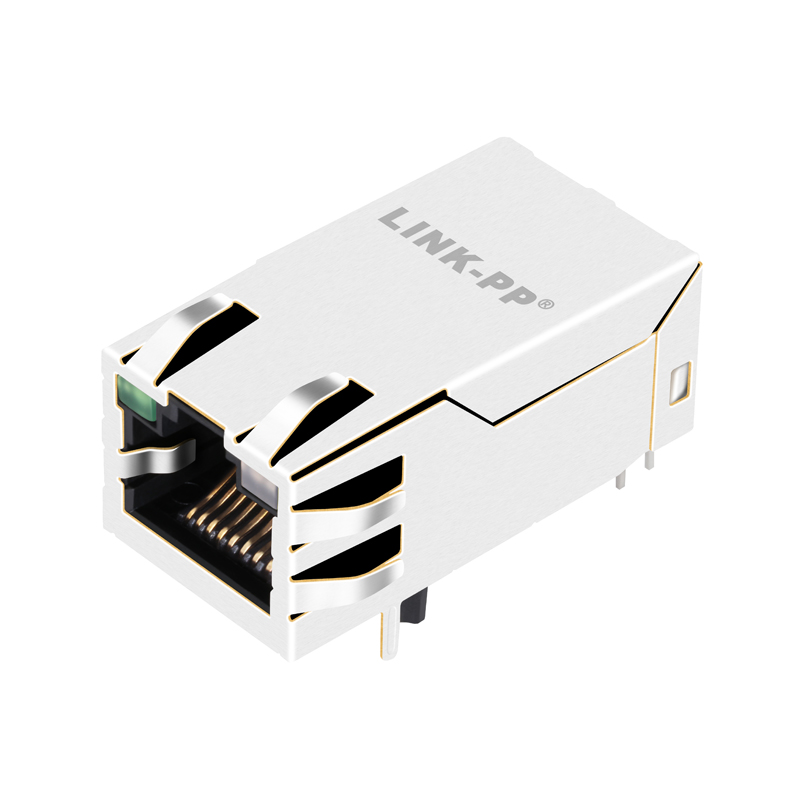

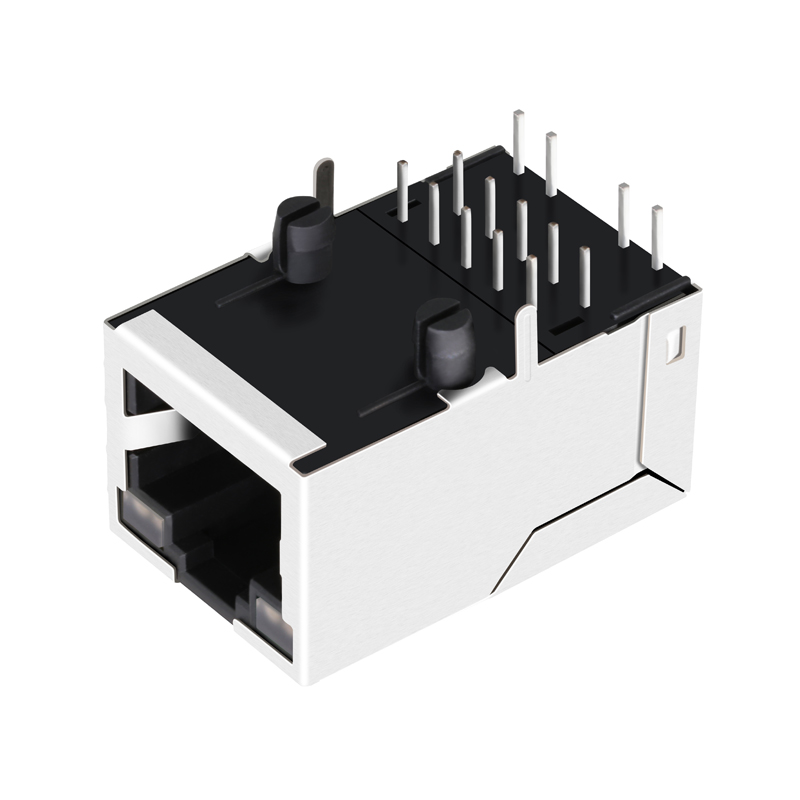

Single Port 100/1000/2.5G/5G/10G Base-T Modular Network Connector
8P8C Cat5/Cat5e/Cat6/Cat6a PCB Jack LAN RJ45 Connector
| Item | RJ45 Female Connector |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch Direction | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Side Entry |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutoMDIX | Yes |
| Contact Plating | Gold 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries.
