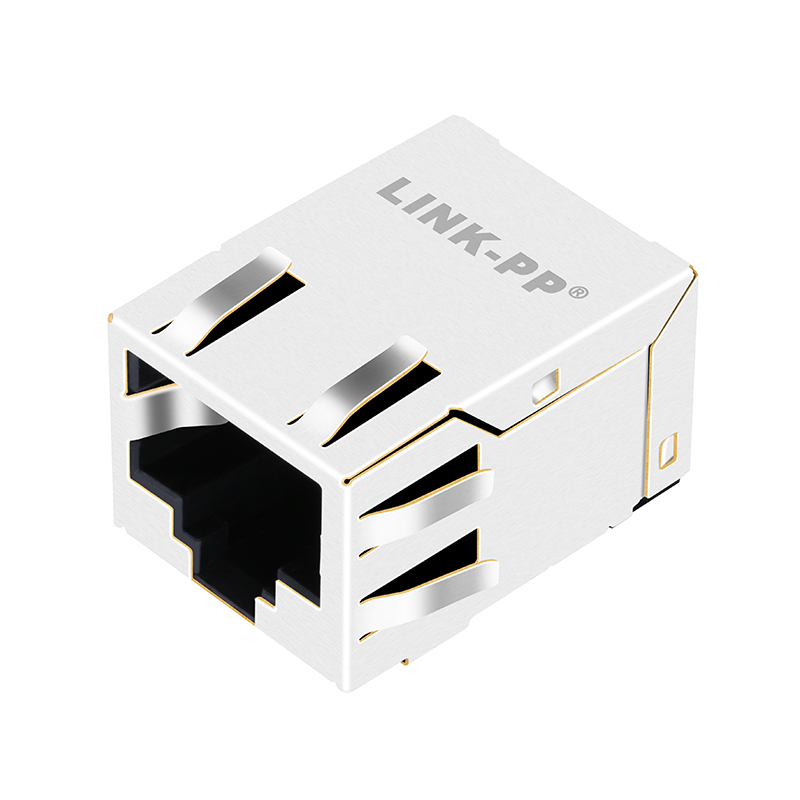

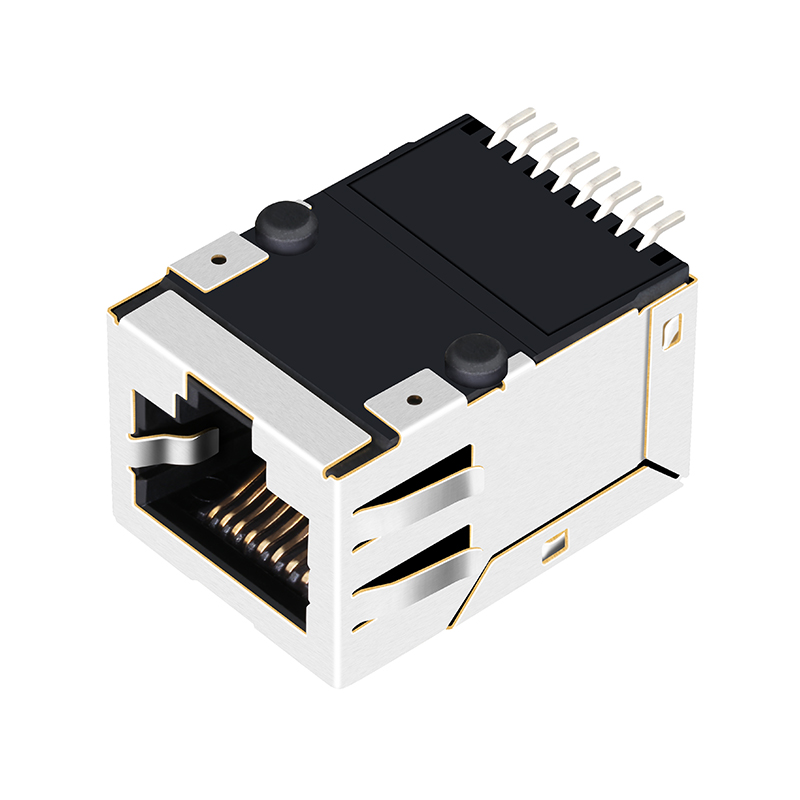

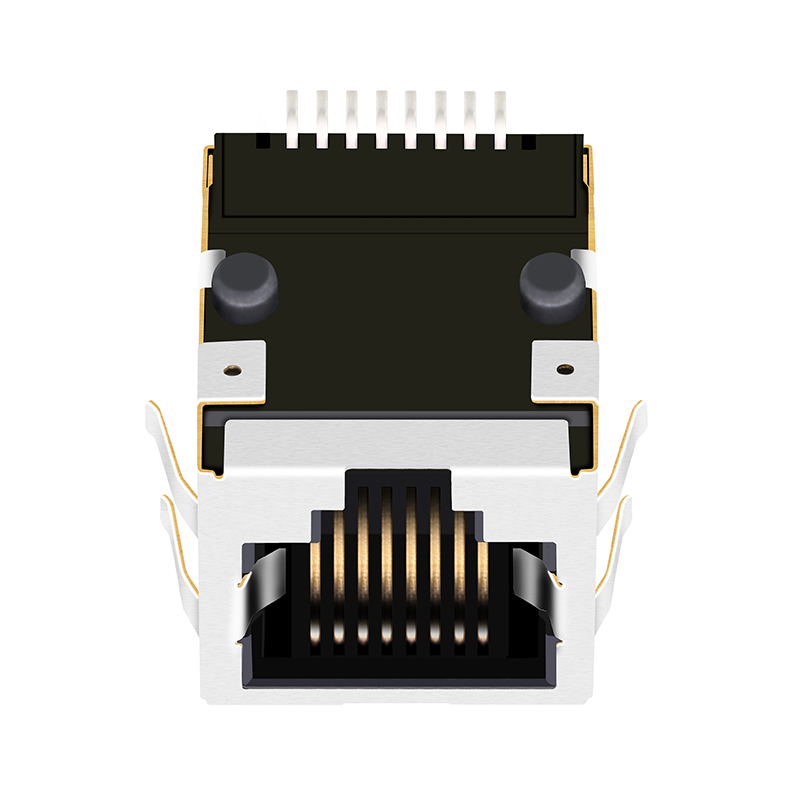

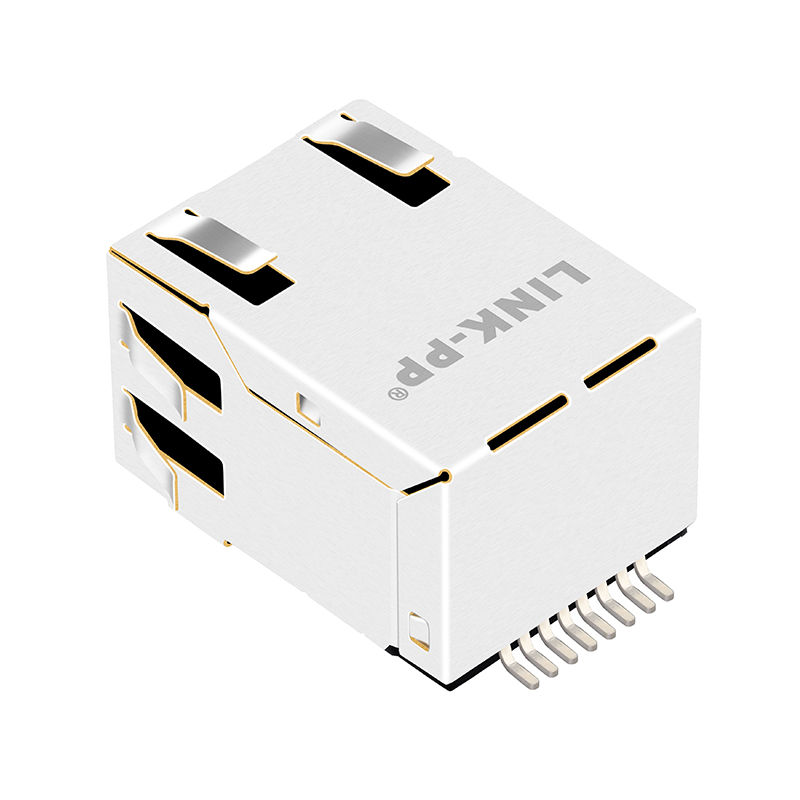

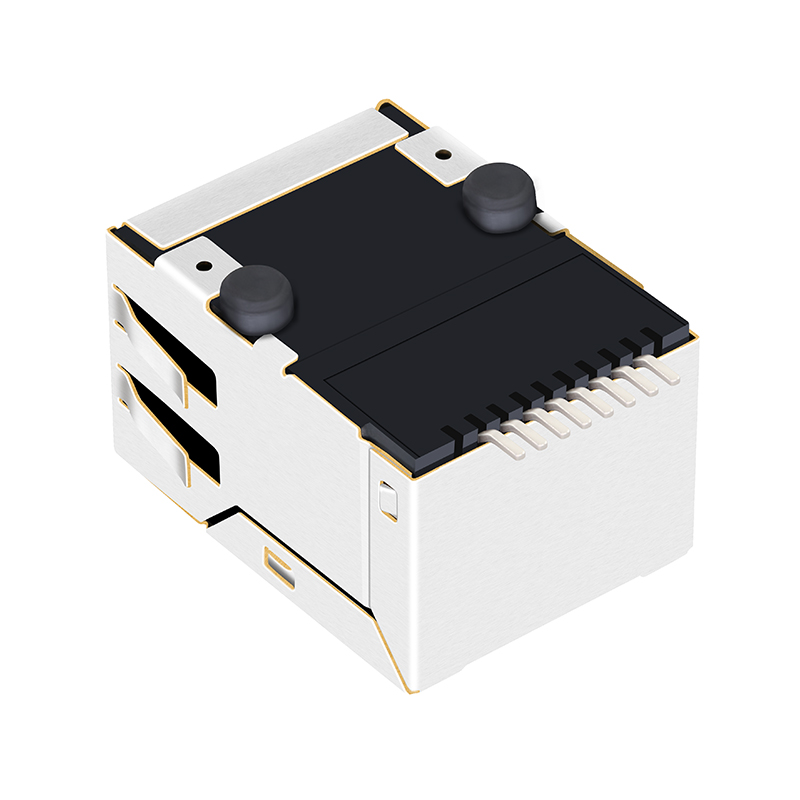

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109

Send Inquiry

Product Description

Low Profile RJ45 connector 8P8C SMT Top Entry Modular Jack 0855135109

Product Technical Specifications
Part Number	0855135109
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH LEDS/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1
