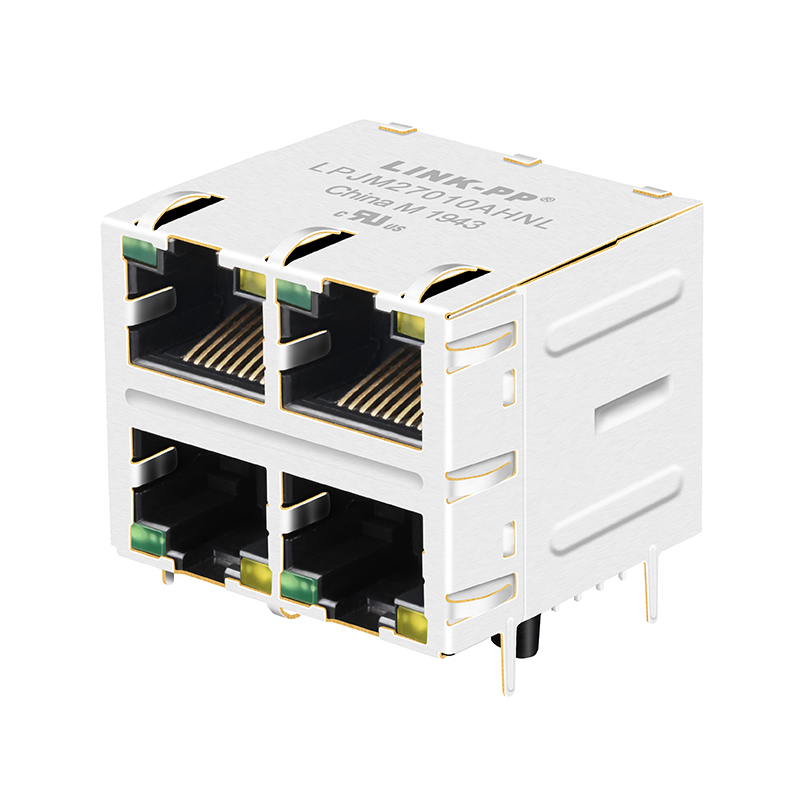

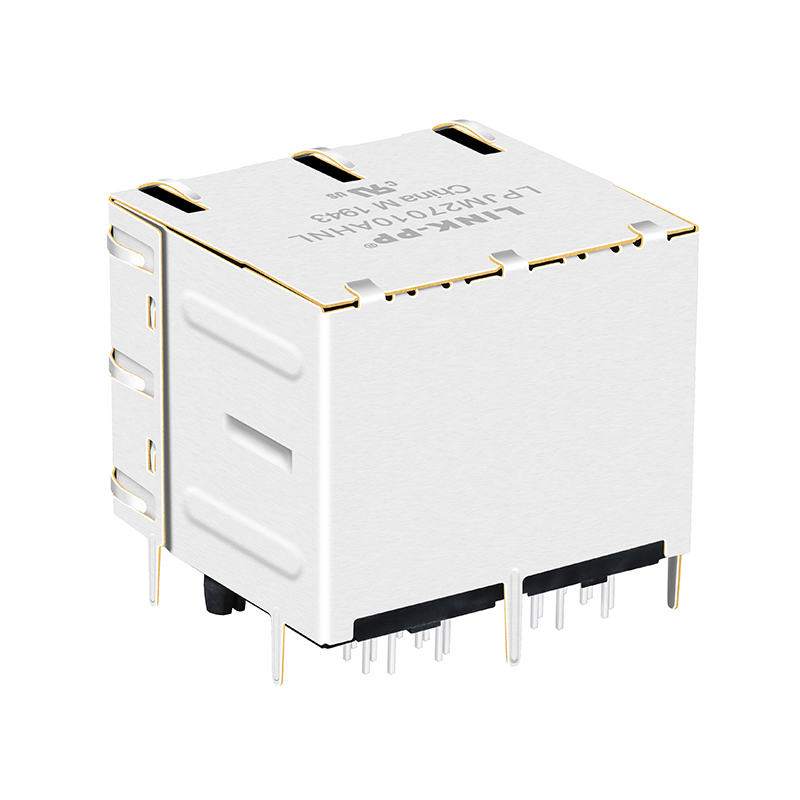

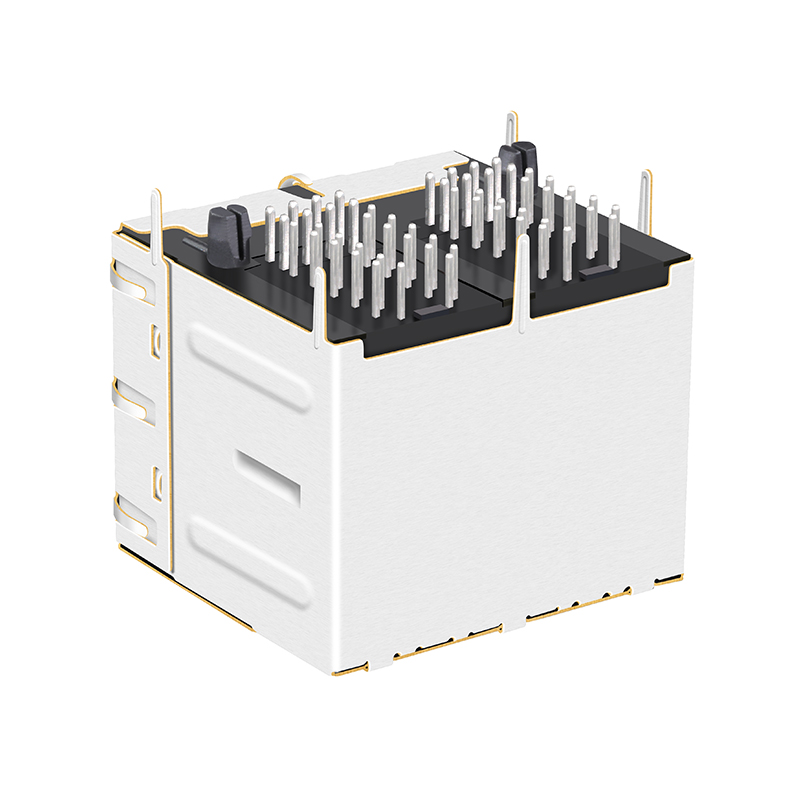

Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
1 / 5
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led

Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led

Send Inquiry

Product Description

Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Ethernet Jack Product Showcase
Products Description
Item RJ45 Female Connector
Part Number LPJM27010AHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x2 Port
Speed 2.5G Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

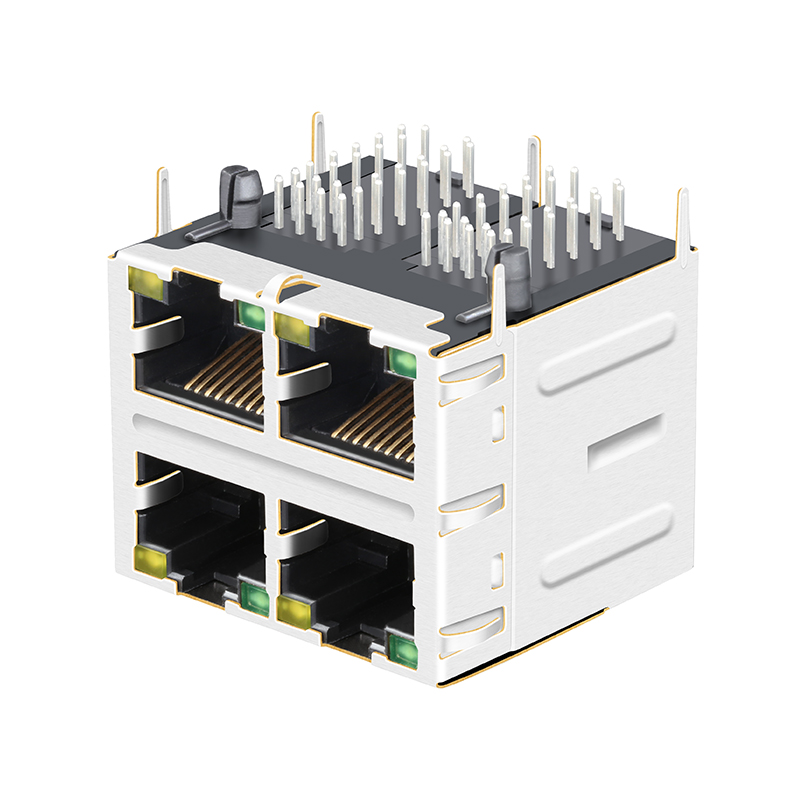

Product Layout Diagram 1

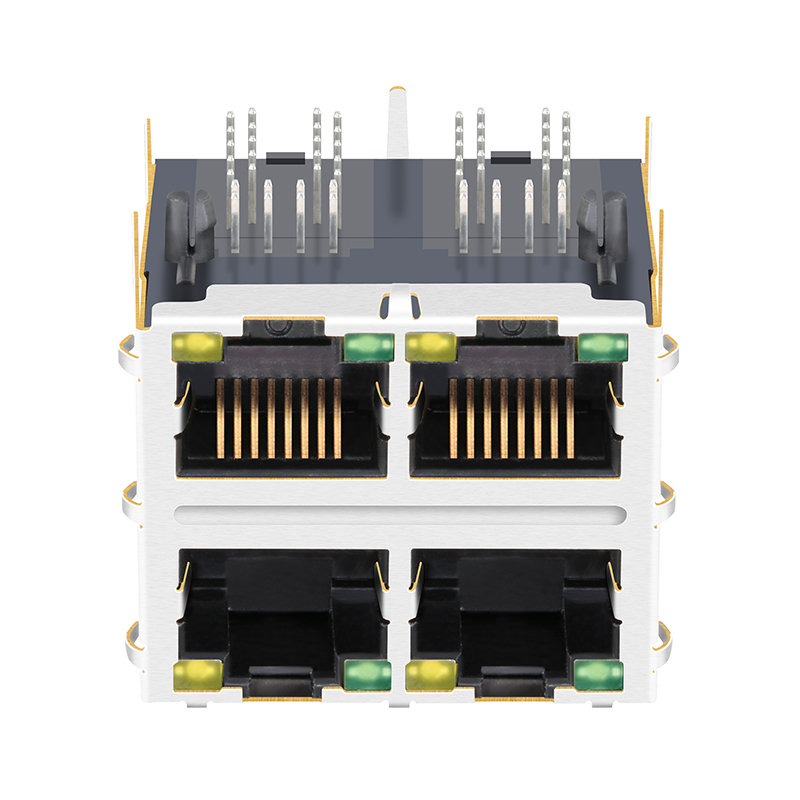

Product Layout Diagram 2
Technical Specifications Sheet
Product Selection Guide Matrix
Quality Standard Verification Diagram 1
Quality Standard Verification Diagram 2
Production Facility Standard Verification 1
Production Facility Standard Verification 2
Workflow Quality Control Step 1
Workflow Quality Control Step 2
Workflow Quality Control Step 3
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Factory Testing Lab
Factory Assembling Line
Factory Automated Equipment
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience, cooperating with leading global enterprises for many years.
