Product Description

Ethernet Connector Overview

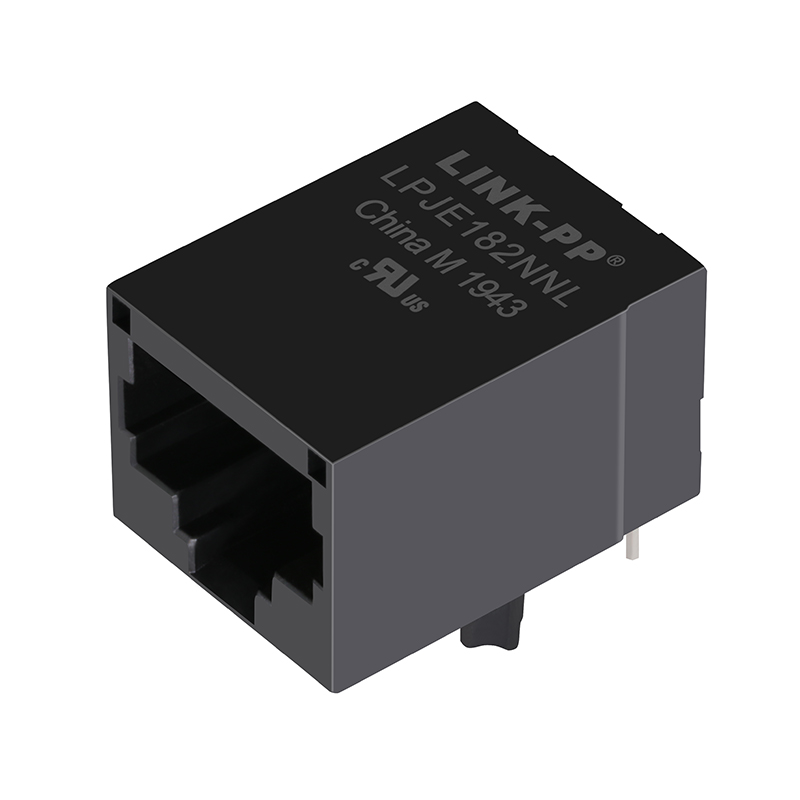

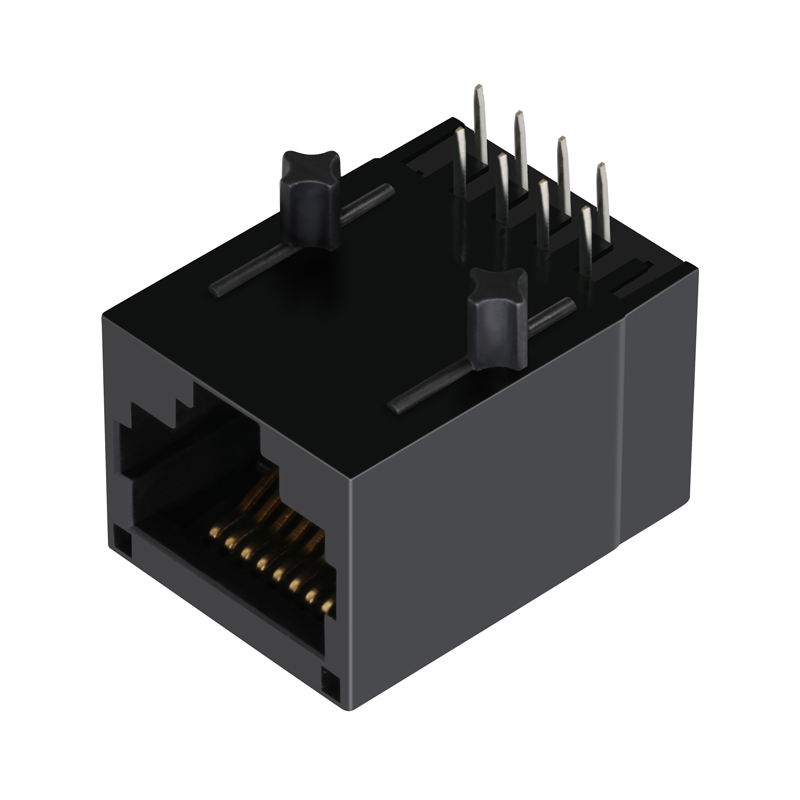

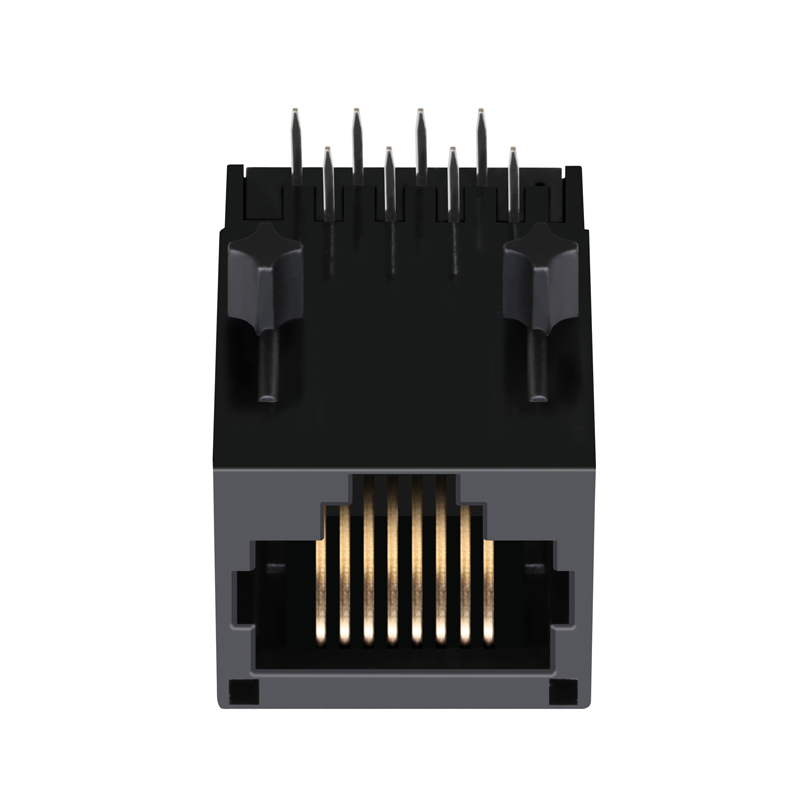

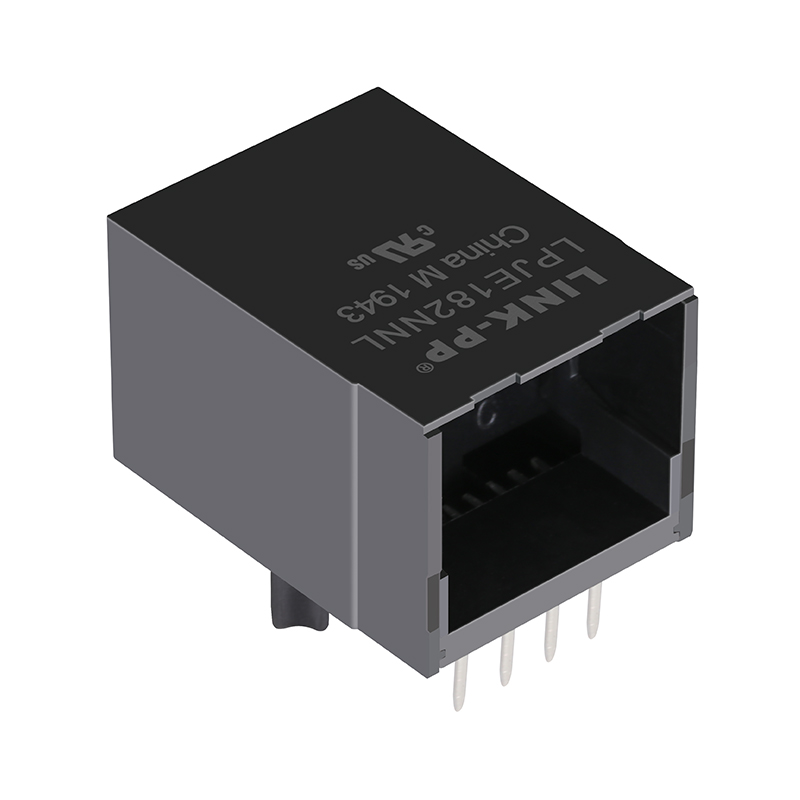

Without Magnetics 8P8C Ethernet RJ45 Network Female Jack
Products Description
Item RJ45 Modular Jack
Part Number LPJE182NNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x1 Port
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Network Jack Component Details 1

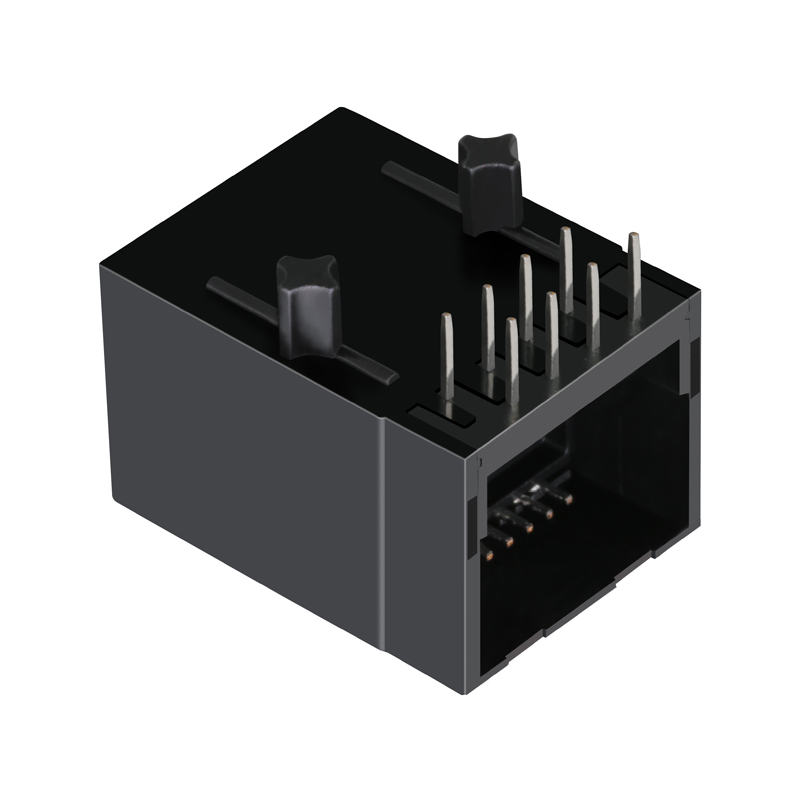

RJ45 Network Jack Component Details 2
RJ45 Network Jack Component Details 3
Product Layout 1
Product Layout 2
Product Layout 3
Product Layout 4
Products Overview
Product Categorization Block
Specification Outline 1
Specification Outline 2
Specification Outline 3
Specification Outline 4
Specification Outline 5
Specification Outline 6
Factory Overview 1
Factory Overview 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered.
What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production.
What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
We have 19 years of professional production experience and have partnered with leading technology brands for many years.
