7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
1 / 5
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector

7498010210A 10 / 100 Base-T SMT RJ45 Female Connector

Send Inquiry

Product Description

RJ45 Connector Banner
7498010210A 10 / 100 Base-T SMT RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number 7498010210A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

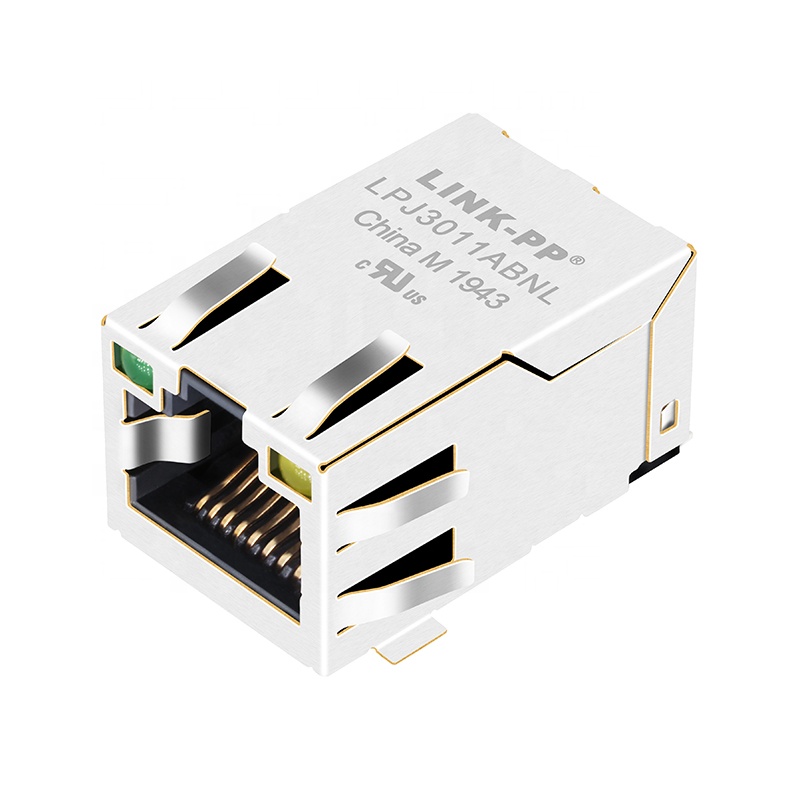

Product Diagram 1
Product Diagram 2
Product Feature 1
Product Feature 2
Product Feature 3
Product Feature 4
Product Categories Overview
Technical Specifications Detail
Soldering Reflow Parameters
Packaging Information
Product Certifications
Testing Equipment
Storage Warehouse
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee will need to be covered.
Q What is your delivery time?
Items in stock are ready to ship, and mass production typically takes 15-30 days.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can discuss the details.
Q What is your advantage?
We possess 19 years of production experience and have established long-term partnerships with leading industry partners.
