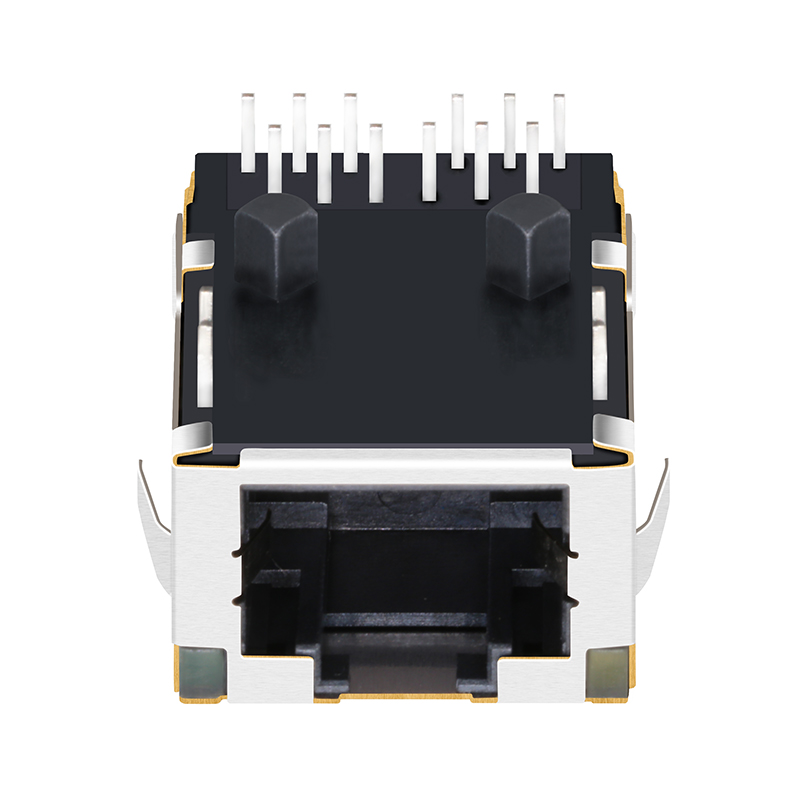

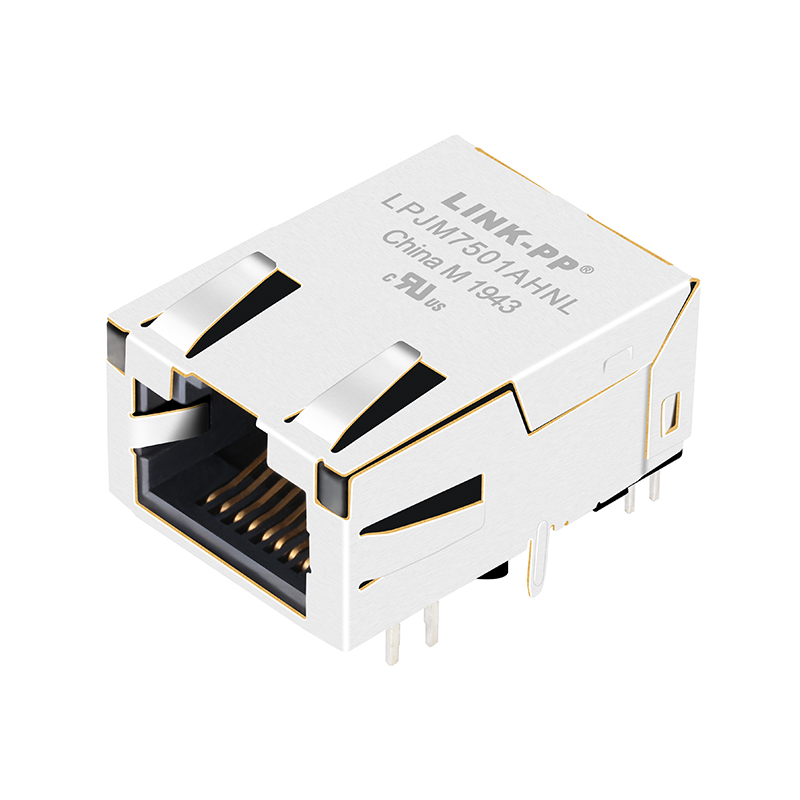

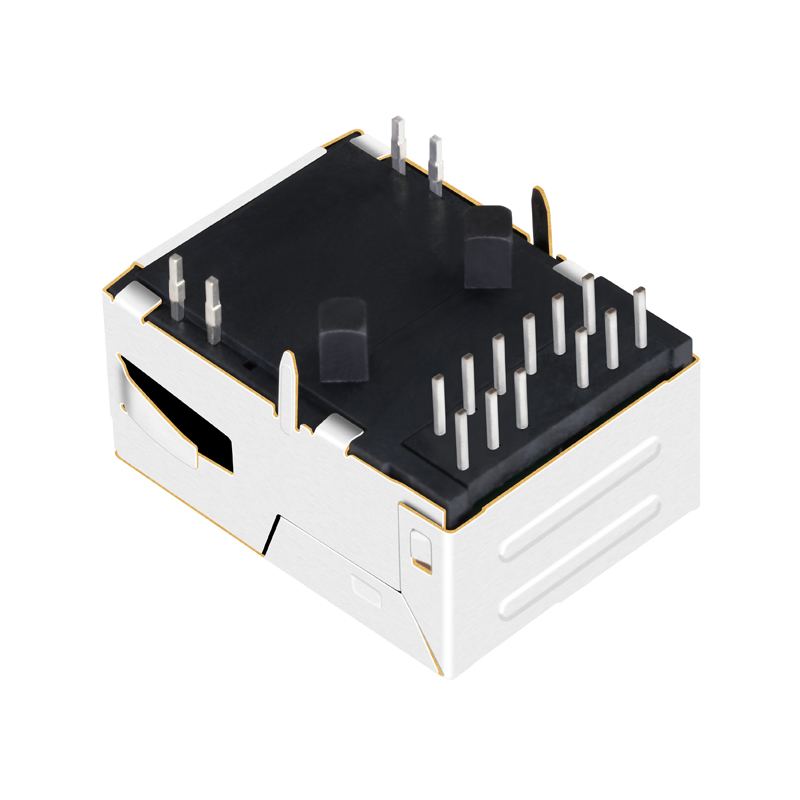

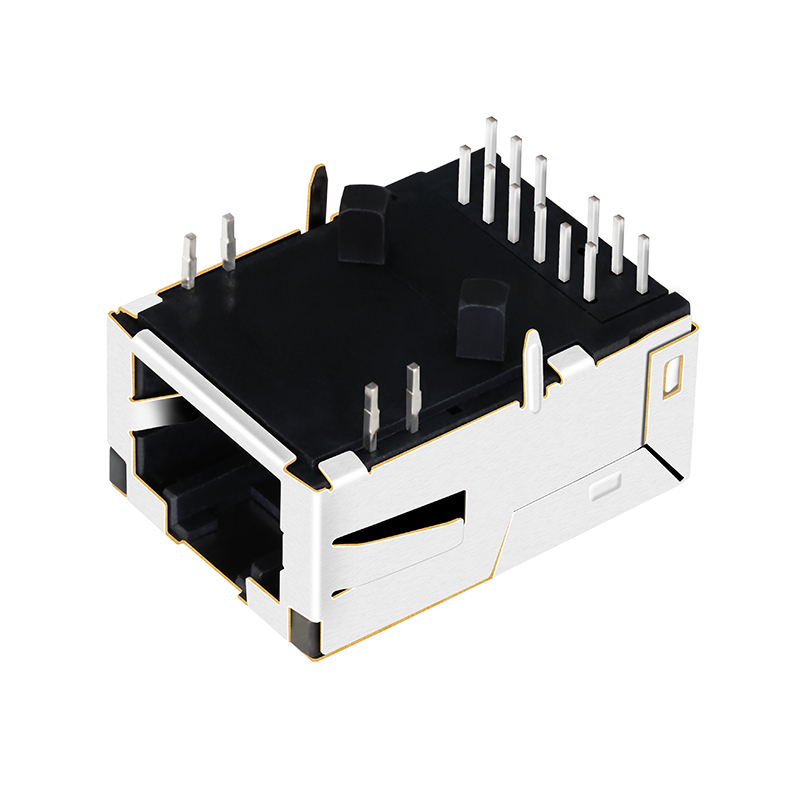

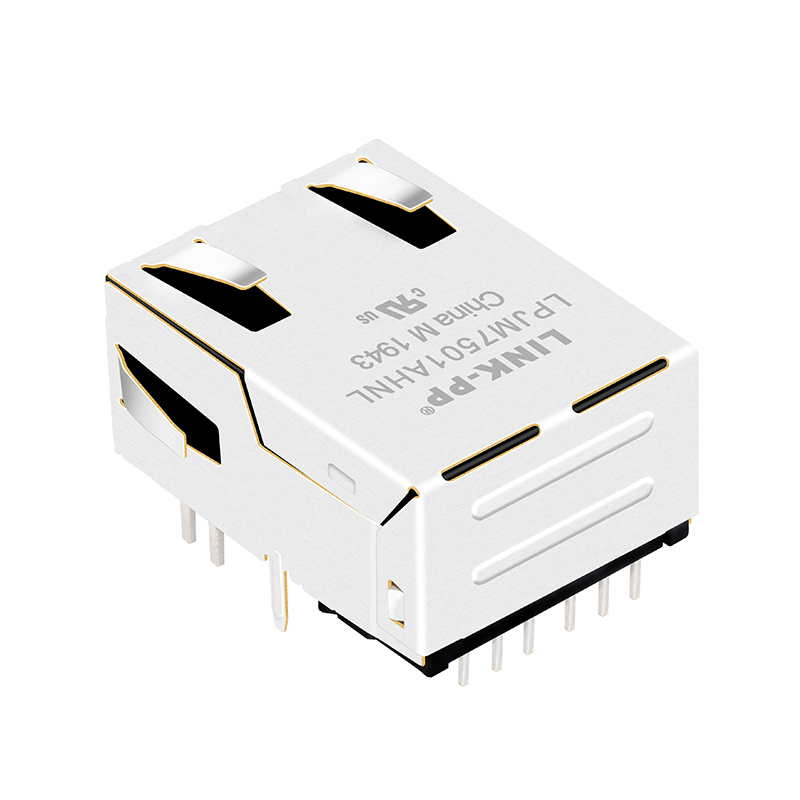

Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
1 / 5
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector

Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector

Send Inquiry

Product Description

Product Categories Overview
Tab Up Shield 1 Port RJ 45 Jack 5G Base-t Low Profile Female RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJM7501AHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 5G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product View 1
Product View 2
Specification Diagram 1
Specification Diagram 2
Specification Diagram 3
Technical Specs 4
Technical Specs 5
Technical Specs 6
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Facility 1
Factory Facility 2
Factory Facility 3
Frequently Asked Questions
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we are partners with top industry brands for many years.
