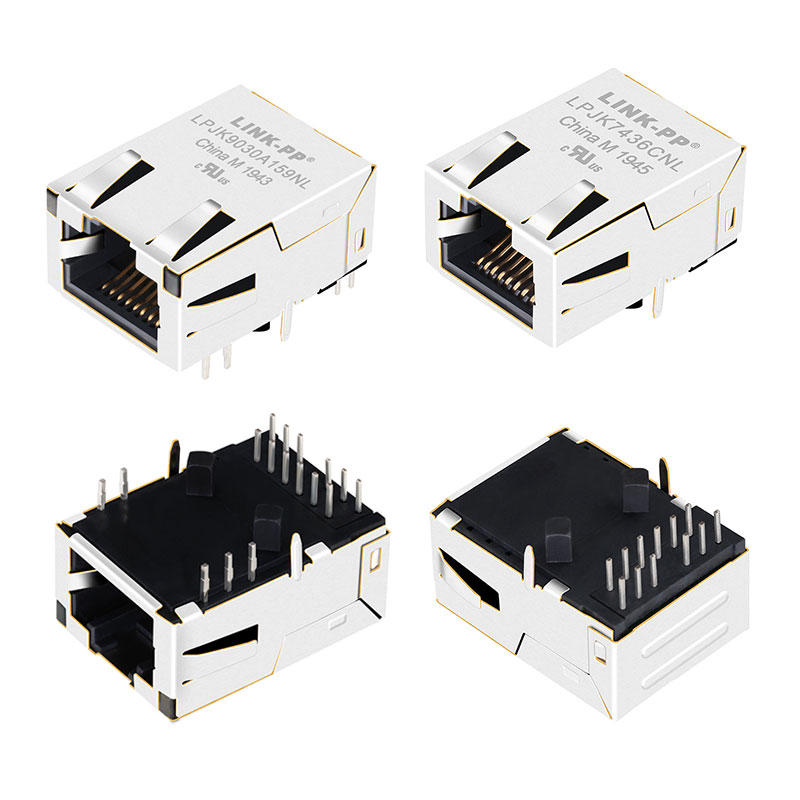

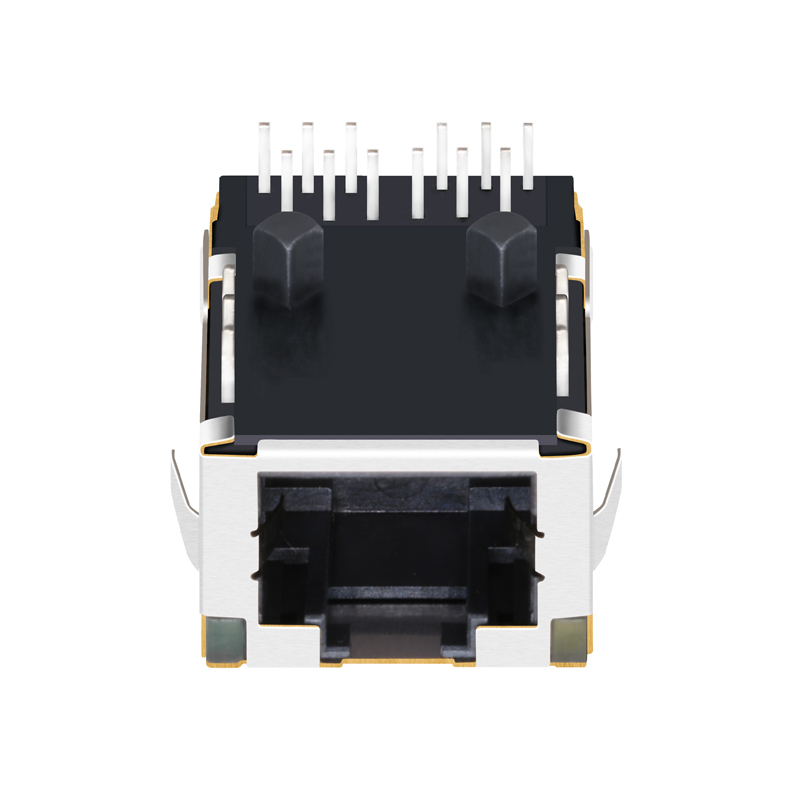

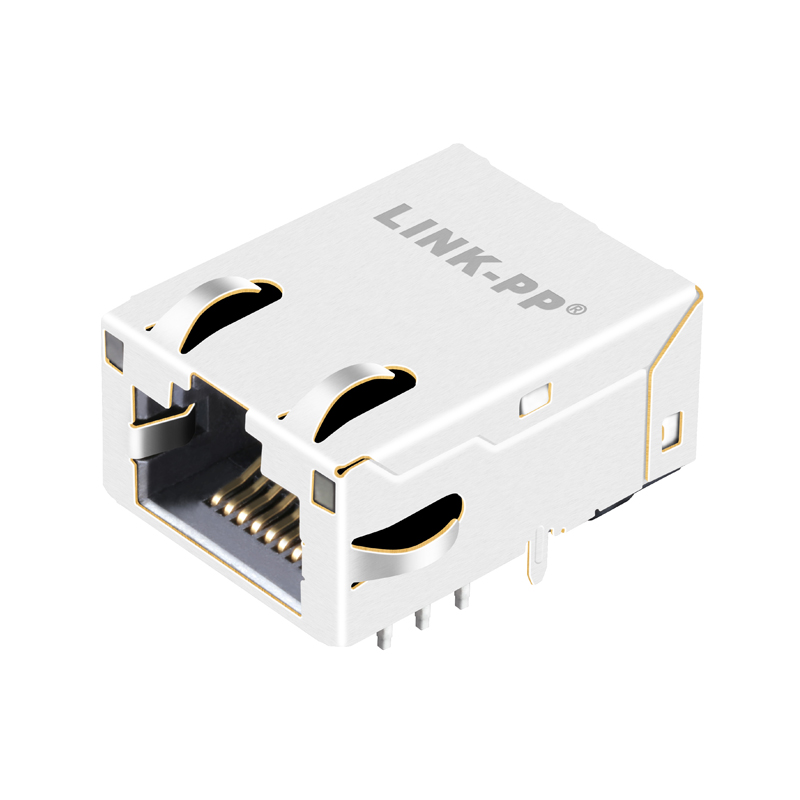

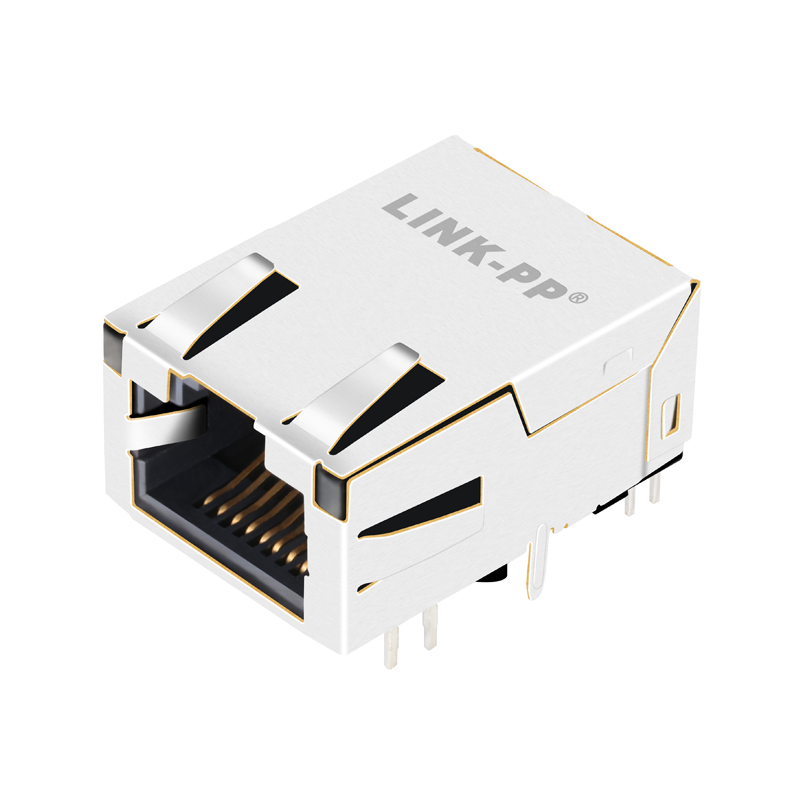

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

Specification
RJ45 Connector
Characteristics

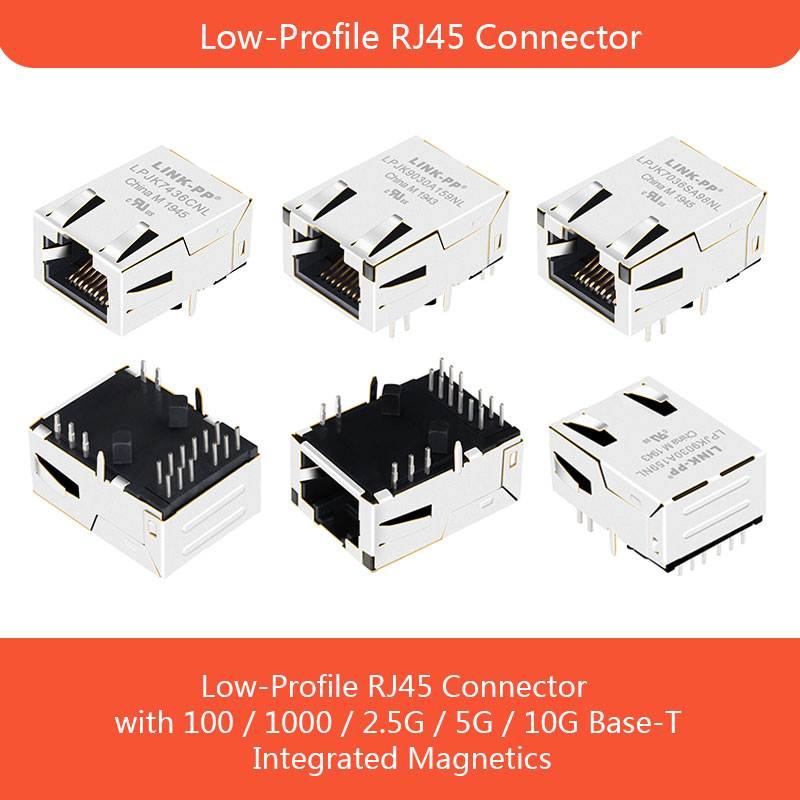

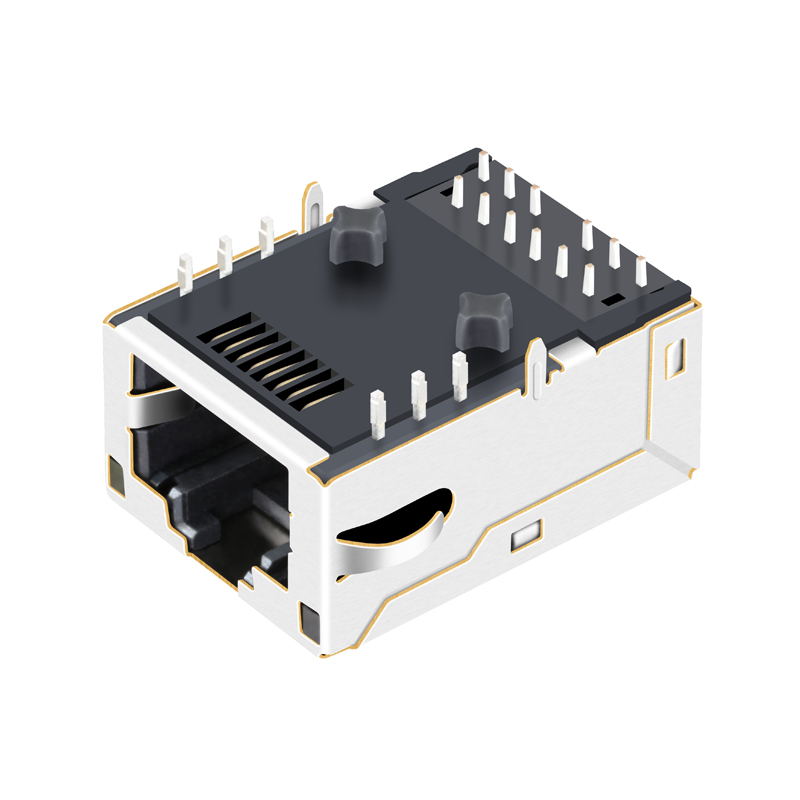

  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Item Value
Model Number Low profile rj45 jack
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Package details: Tray packing, Carton size: 40*32*33cm, G.W./carton: 12.3kg, Qty/carton: 1200pcs, SPQ: 50pcs, N.W/pcs: 0.01kg
Packing details
Company Infrastructure
Production Process
Manufacturing Line
Workshop Setup
Quality Control

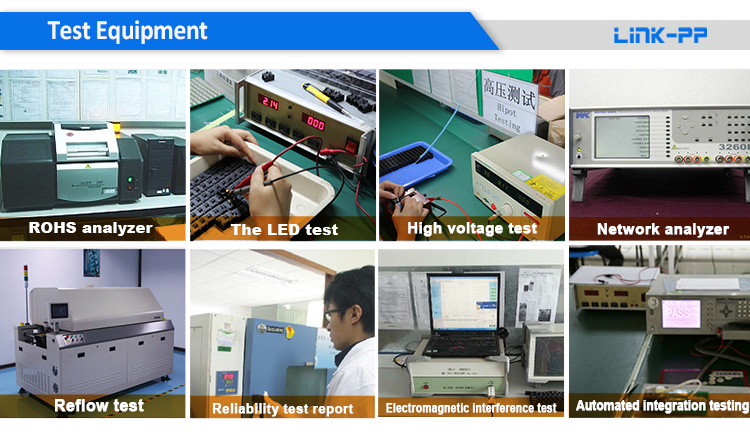

Testing Equipment
Production Facility
Assembly Line
Frequently Asked Questions
1. What is the scope of our business and primary export markets?
Established in 2012, we specialize in high-quality network hardware manufacturing. Our primary export markets cover North America, South America, Southeast Asia, Eastern Europe, Africa, Oceania, and other regions across the globe.
2. How is quality guaranteed throughout production?
We maintain strict quality control standards by always providing a pre-production sample before launching mass production, combined with a mandatory final inspection prior to shipment.
3. What products are available from us?
Our catalog includes RJ45 Magnetic modules, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
4. What makes our products competitive compared to other suppliers?
We possess over 19 years of dedicated manufacturing expertise in RJ45 connectors and LAN transformers. Our operations are fully certified by SGS, ISO9001:2008, UL, REACH, and CE. Supported by a robust production workforce, we maintain a weekly output capacity of up to 30,000K units to service leading global customers.
5. What shipment terms, currencies, and payment methods are accepted?
We accept delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, and Express Delivery. Supported transaction currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Accepted payment formats are T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
6. Can we request custom-made designs or OEM/ODM configurations?
Yes, custom designs and manufacturing options are available based on specific client technical parameters. We provide full support for specialized features, variations in pin numbers, configuration, layout orientation, and LED configuration options.
