| Specification Parameter | Details |
|---|---|

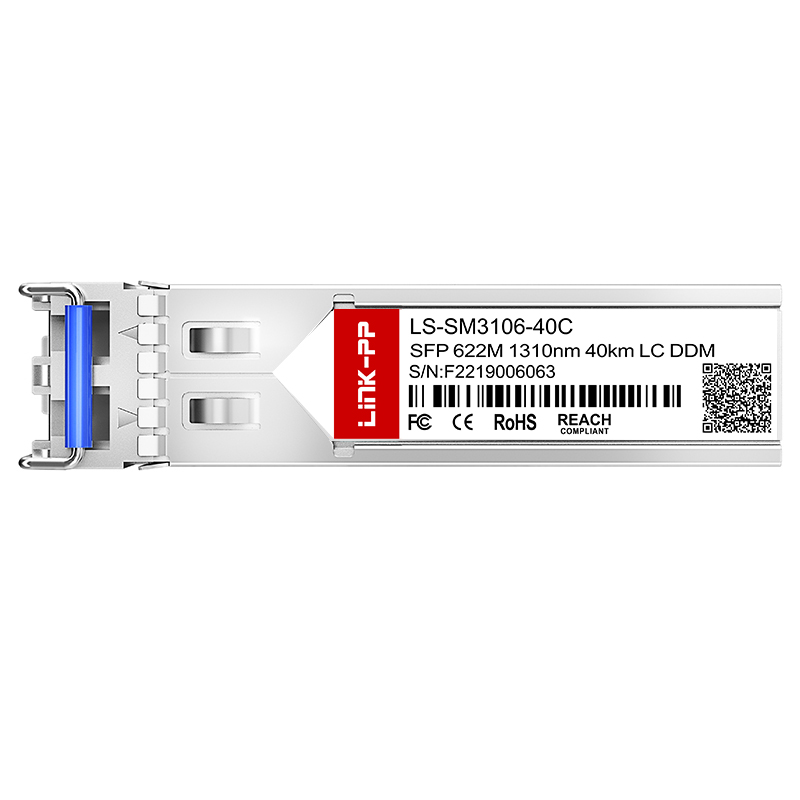

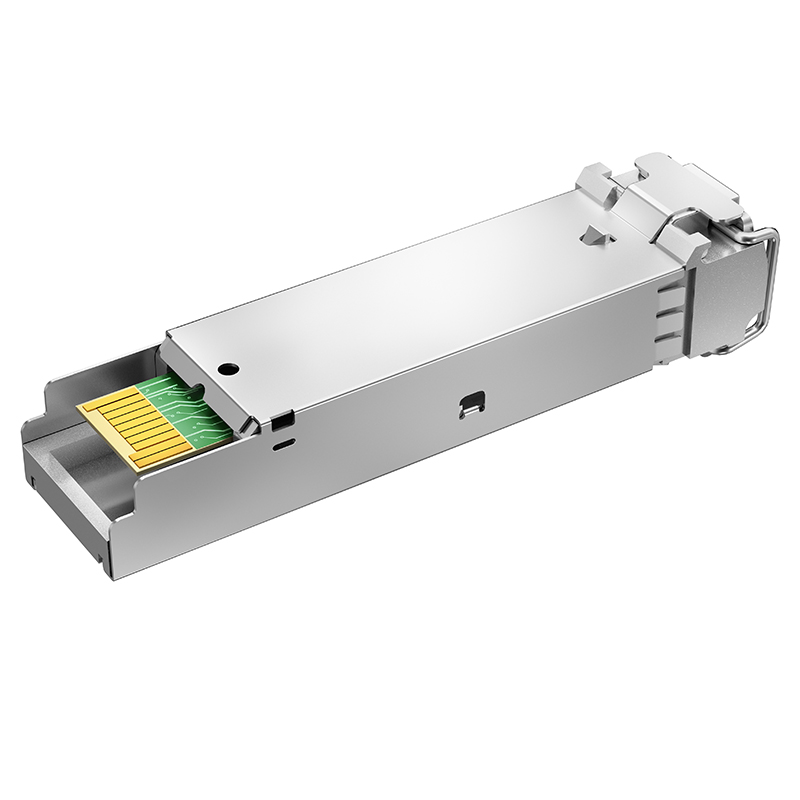

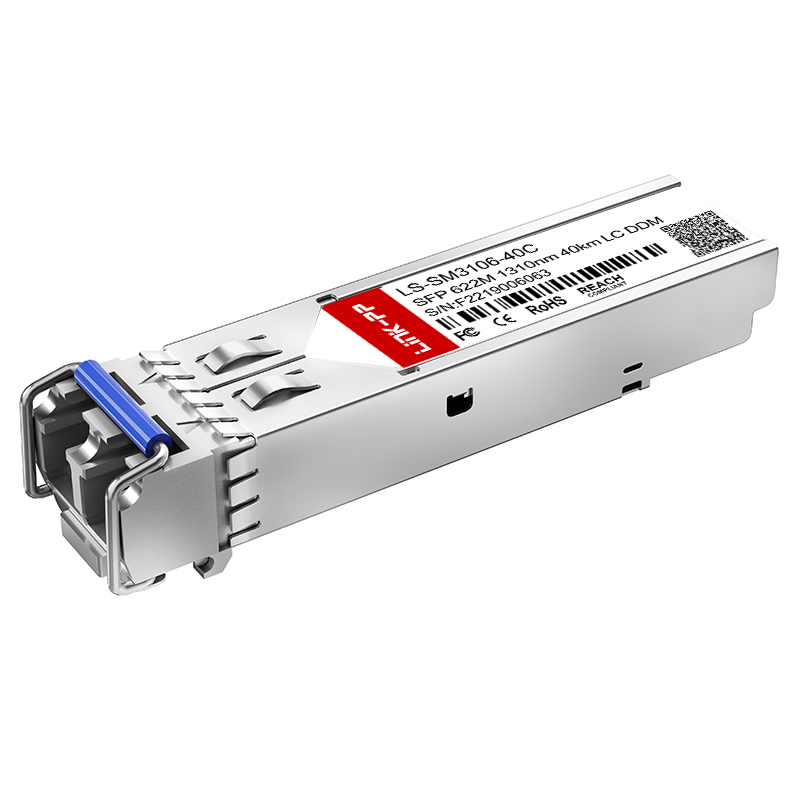

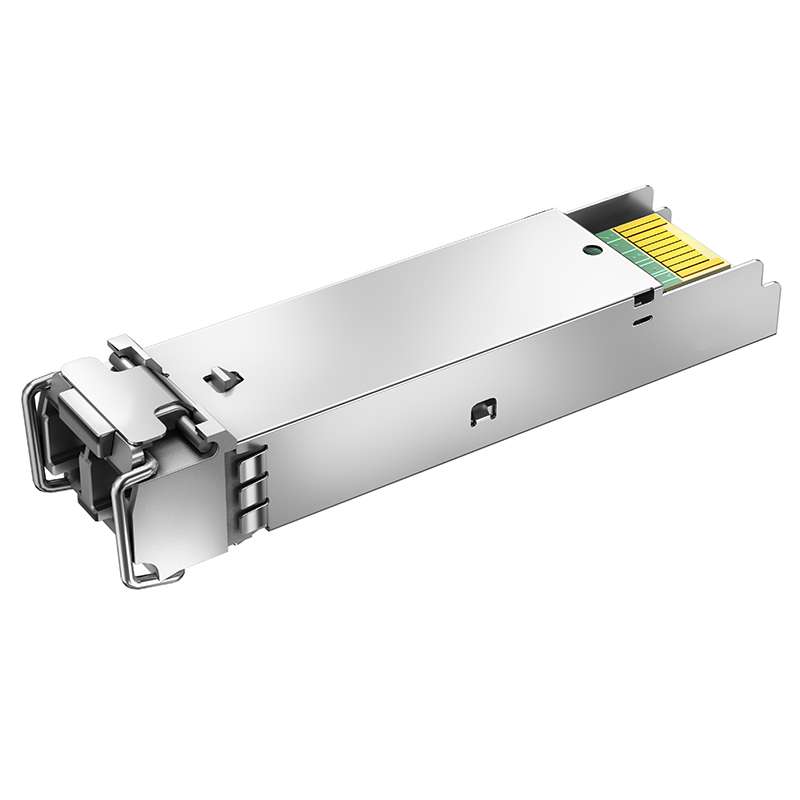

| Part Number | LS-SM3106-40C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
We provide end-to-end DWDM devices with comprehensive optical hardware—from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR solutions.
To meet the demand for massive data transmission in modern data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
We provide highly reliable and performant products utilizing mature and efficient lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul designed to fit all scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering both all-optical and combined optical-copper access architectures.
To ensure the normal operations of communication lines, we provide advanced optical cable O&M solutions integrating optical line protection (OLP) systems and optical line monitoring (OLM) systems.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our infrastructure features advanced manufacturing and testing equipment imported from abroad. Established in 1997, we currently have about 2,000 employees. Supported by an abundant production capacity of 3,000K units per month, we reliably deliver products with short lead times.
Additionally, we design, manufacture, and sell a complete series of optical modules worldwide. The range covers solutions for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks, alongside high-speed optical interconnect solutions for cloud computing and ultra-broadband networks using the latest optoelectronic technologies.
