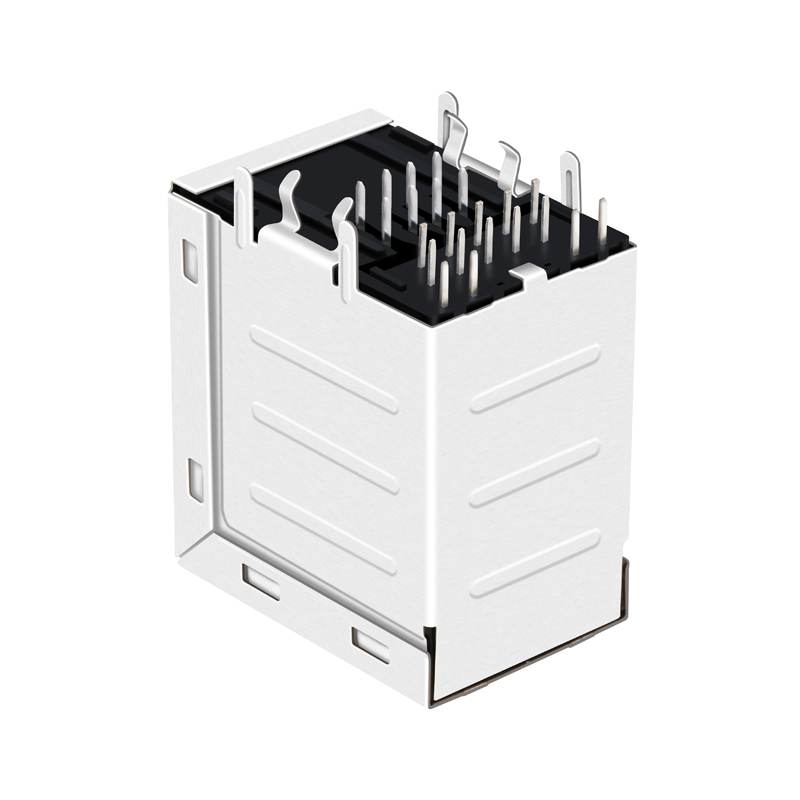

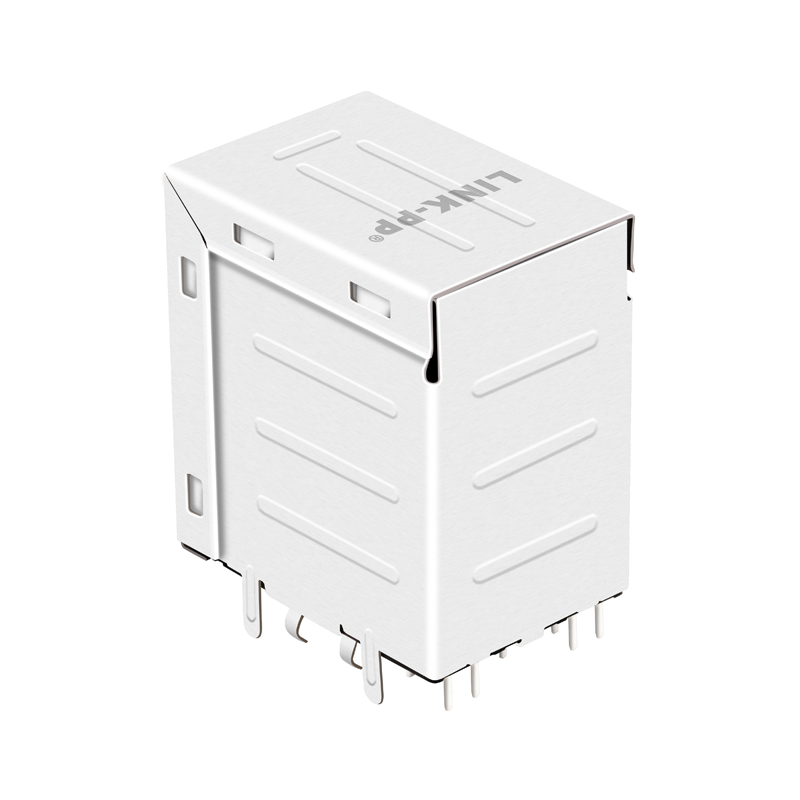

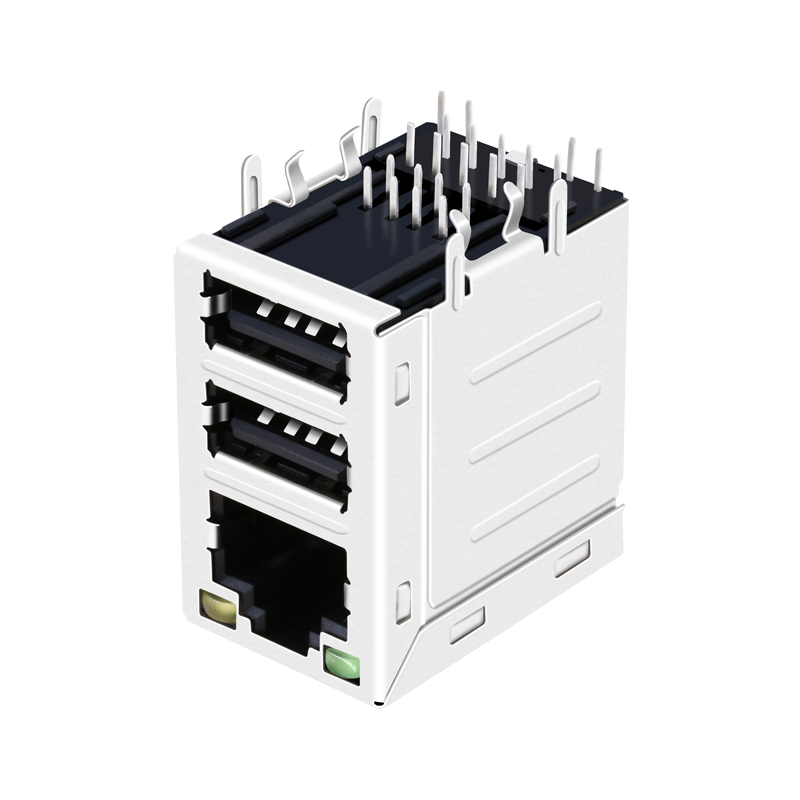

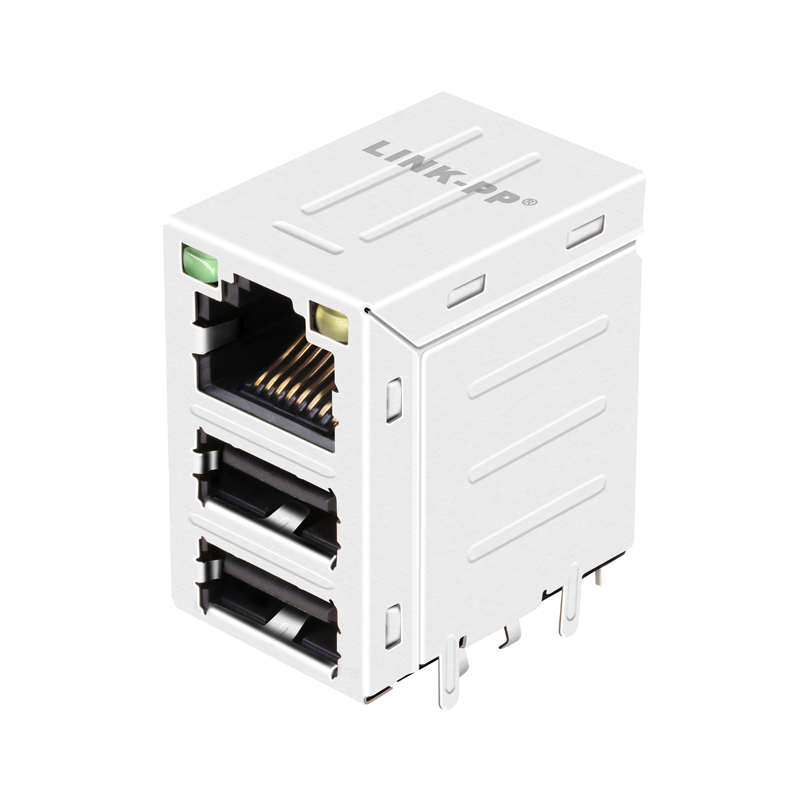

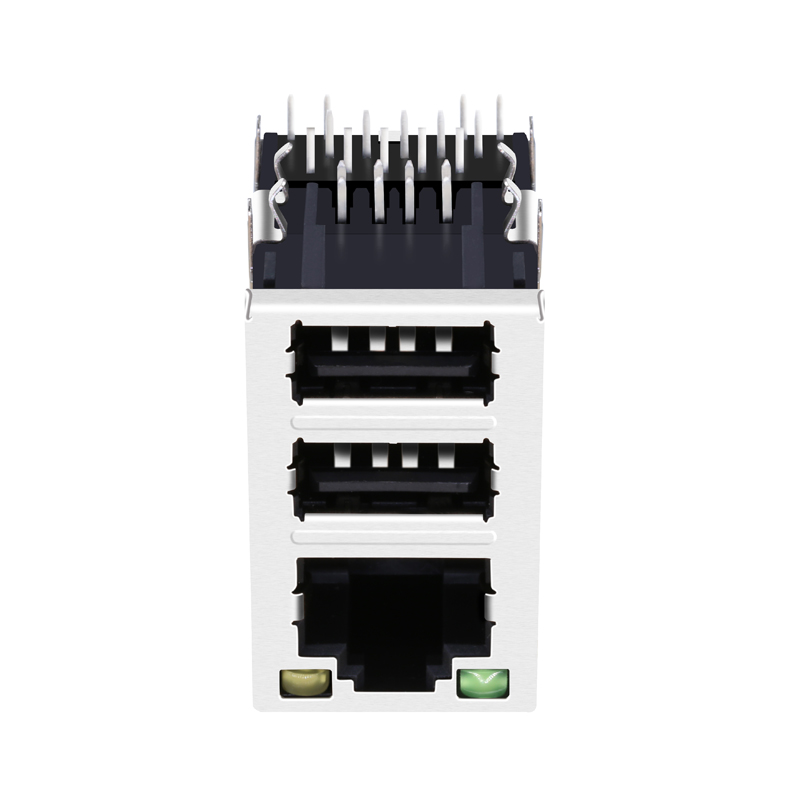

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
1 / 5
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs

Send Inquiry

Product Description

Product Category Banner
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector with LEDs
Products Description
Item RJ45 Female Connector
Compatible With 45F-10201DYD2NL 45F-10201DYDXNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Banner
Product Options Grid
Product Specifications Diagram
Product Detail View 1
Product Detail View 2
Product Detail View 3
Certification 1
Certification 2
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Environment 1
Factory Environment 2
Factory Warehouse
FAQ
Q1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by your side.
Q3. What is your delivery time?
Items in stock are ready to ship. For mass production orders, the delivery time takes approximately 15-30 days.
Q4. What after-service do you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Q5. Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM requests. Please contact us with your inquiries so we can discuss the details.
Q6. What is your advantage?
We have 19 years of manufacturing experience and have been a trusted partner of leading global brands for many years.
