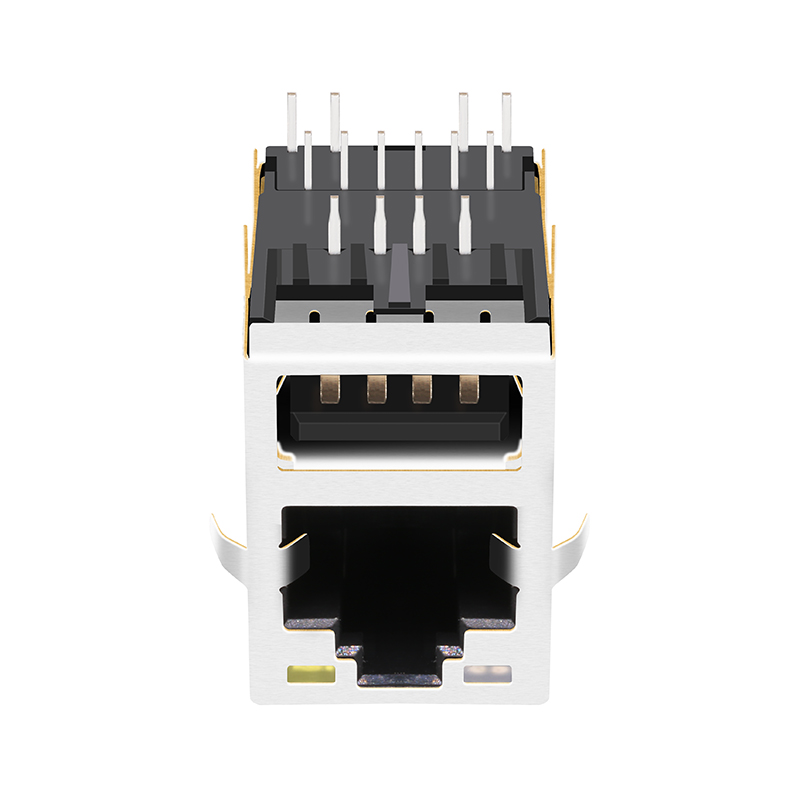

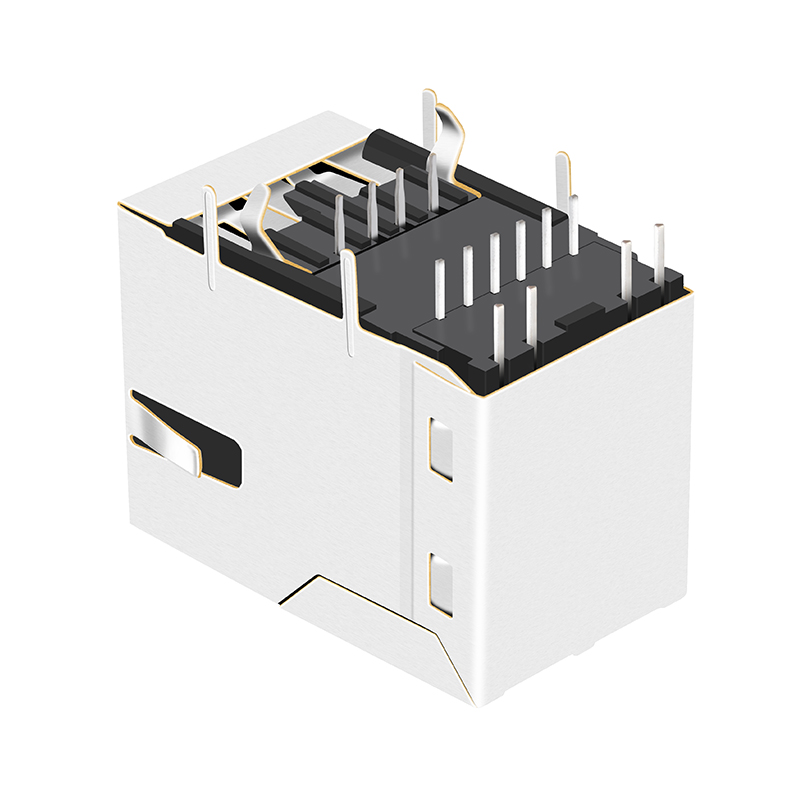

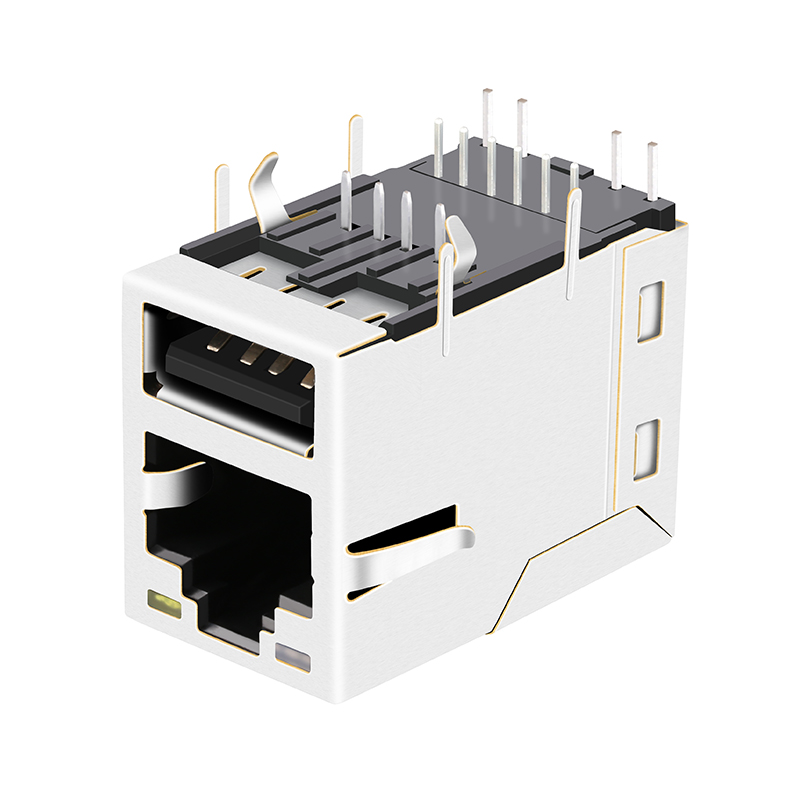

MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
1 / 5
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds

MIC24U16131W-LF3 Tab up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds

Send Inquiry

Product Description

Ethernet RJ45 Connector
MIC24U16131W-LF3 Tab Up 10/100 Base-t Ethernet Magnetic Female RJ45 USB Jack With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJU3101AONL
Compatible With MIC24U16131W-LF3
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram
Products Categories
Features 1
Features 2
Features 3
Certification 1
Certification 2
Certification 3
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Workshop 1
Factory Workshop 2
Factory Workshop 3
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
We have 19 years of production experience and have been a trusted partner for major global enterprises for many years.
