Product Description

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJK7003A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port, Low Profile
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

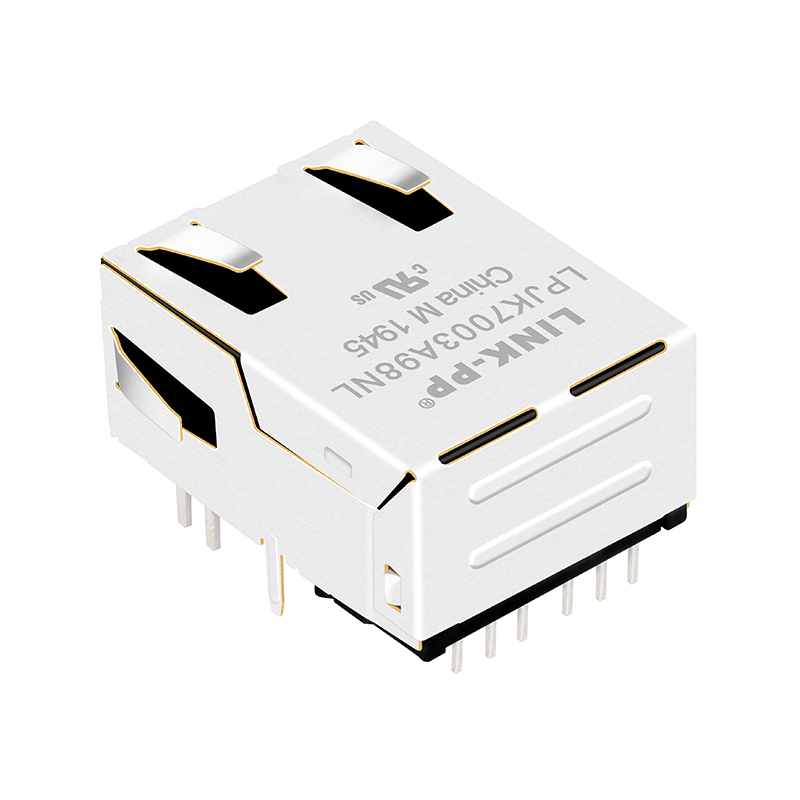

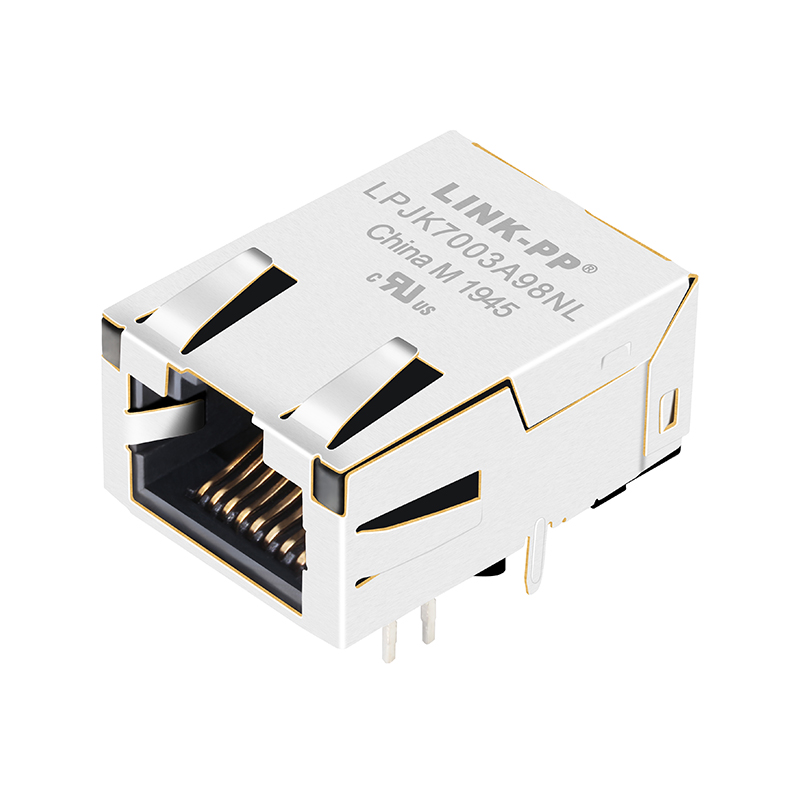

Product Angle View

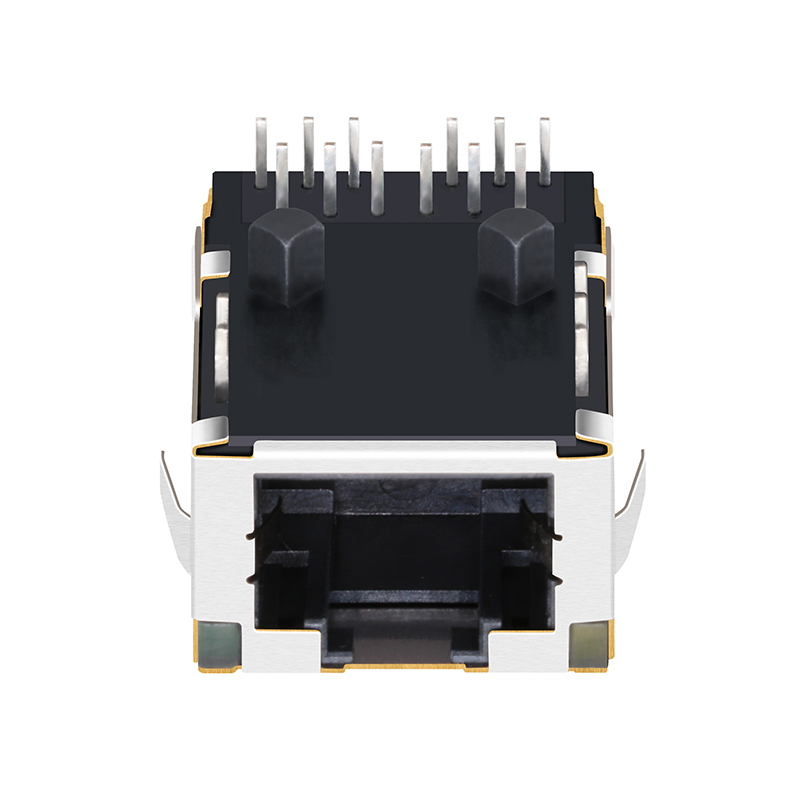

Product Side View

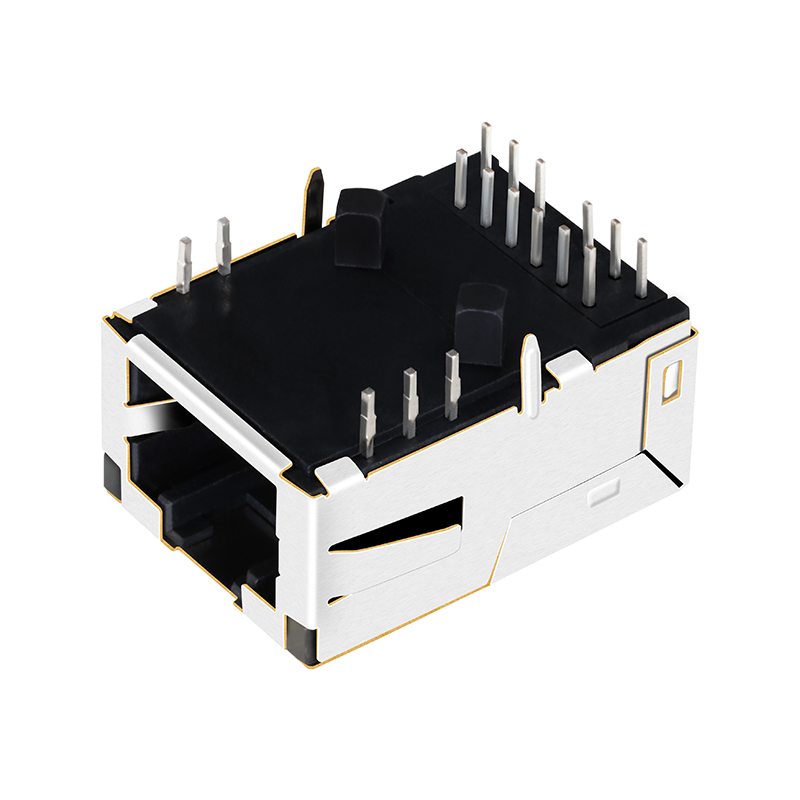

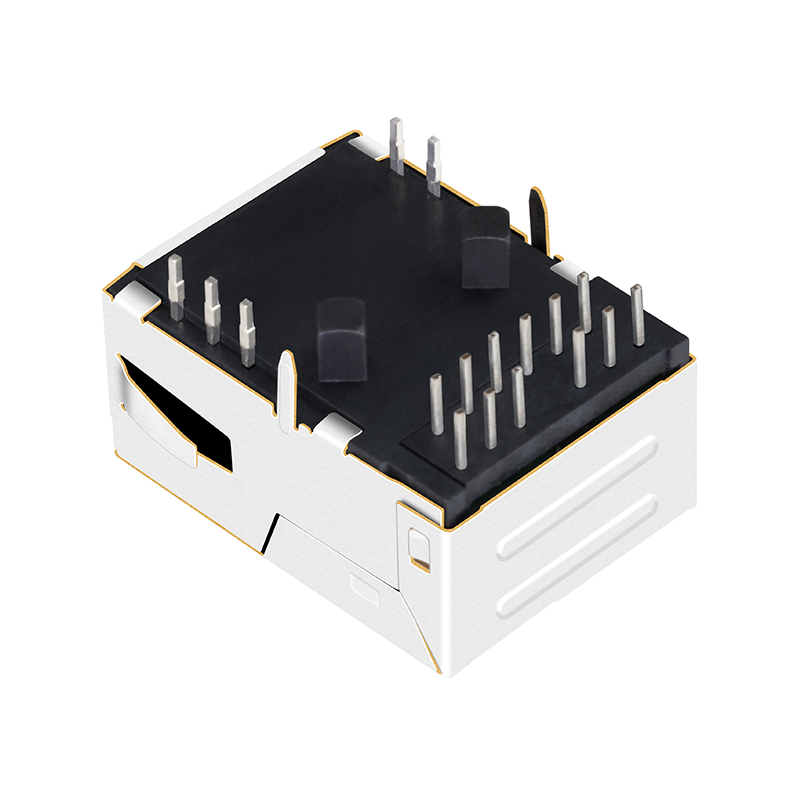

Detailed Dimension 1
Detailed Dimension 2
Detailed Dimension 3
Detailed Dimension 4
Product Selection Table
Mechanical Dimensions
Recommended PCB Layout
Electrical Schematic
Package Details
Production Process
Quality Control Testing
