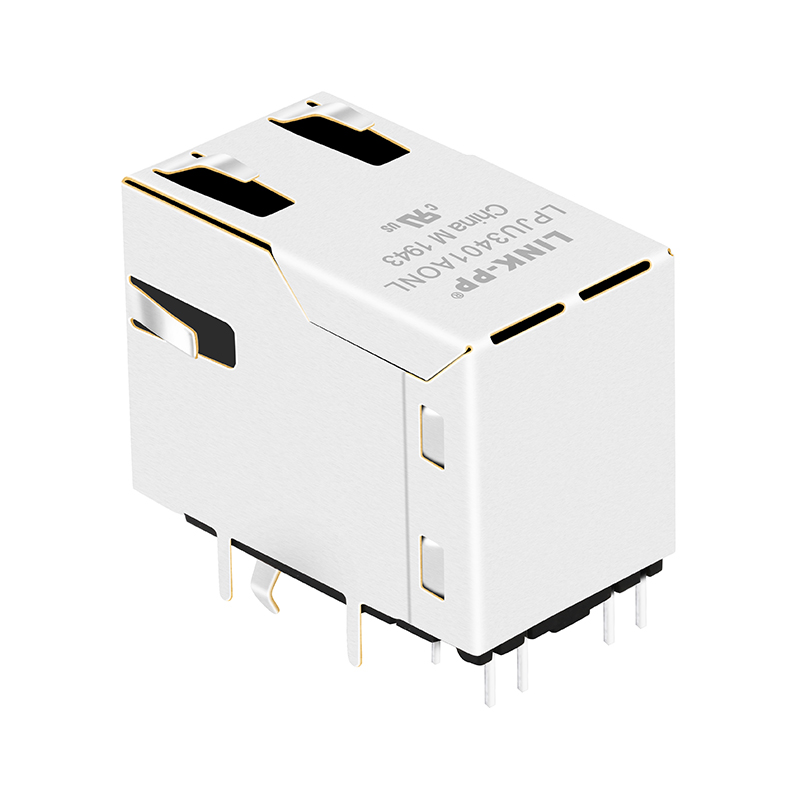

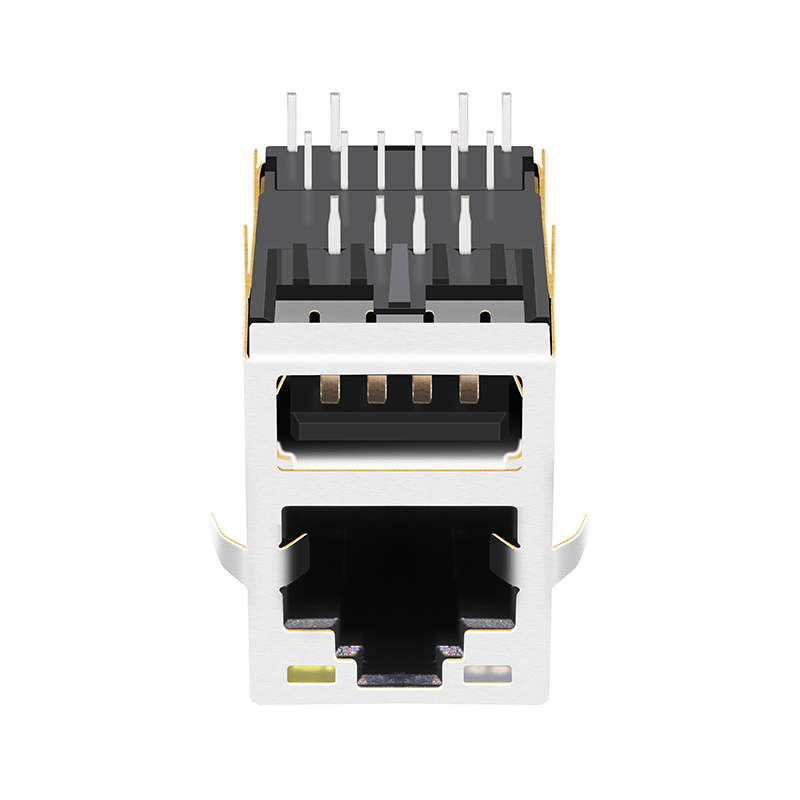

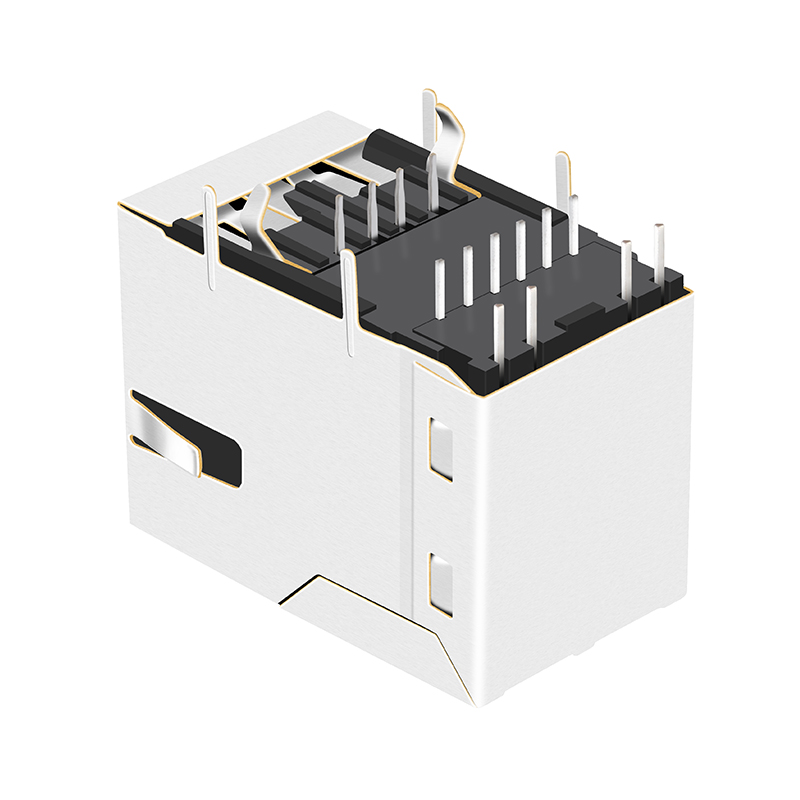

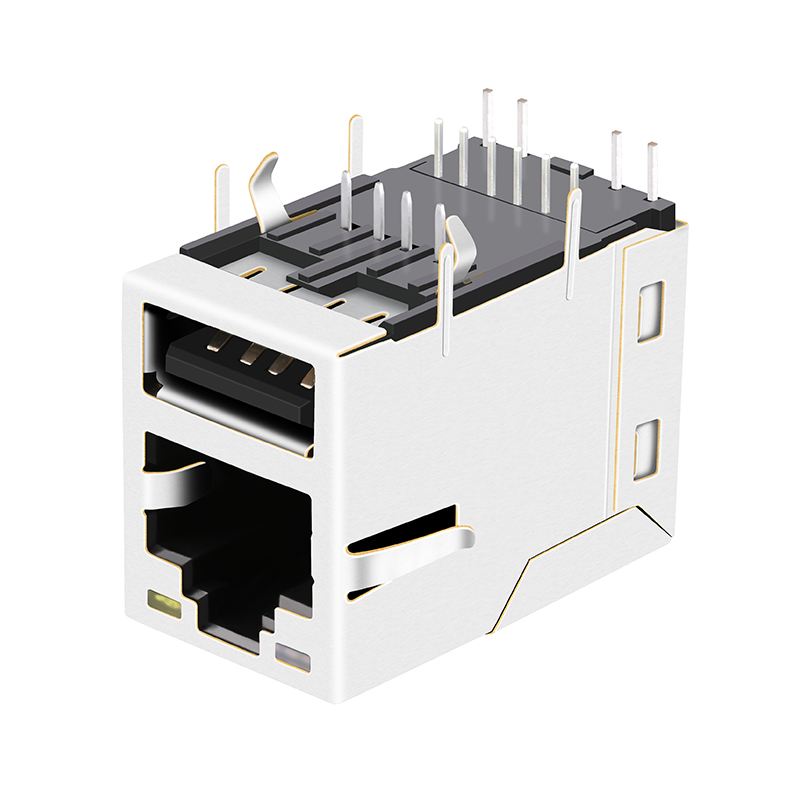

JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
1 / 5
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB

JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB

Send Inquiry

Product Description

Ethernet Magnetic RJ45 Jack Connector Banner
JW0-0013NL 10/100 Base-t Ethernet Magnetic Female RJ45 Jack Connector With Single USB
Products Description
ItemRJ45 Female Connector
Part NumberLPJU3401AONL
Compatible WithJW0-0013NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(Non PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSide Entry
Shield EMI TabsWith
LED OptionWith
PCBFR4
PCB Retaining PostT POST
Temperature-40°C TO 85°C
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Technical Dimensions
Explore Our Full Range of Connectors Below
Connector Category Options
Connector Advantage Detail 1
Connector Advantage Detail 2
Connector Advantage Detail 3
Production Advantage 1
Production Advantage 2
Production Advantage 3
Manufacturing Standards Certification
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer manufacturer.
Manufacturing Workshop 1
Manufacturing Workshop 2
Testing Laboratory
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered.
Q What is your delivery time?
Ready to ship for in-stock items, and 15-30 days for mass production orders.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion on your specific requirements.
Q What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to global technology leaders (such as Intel and Jabil) for many years.
