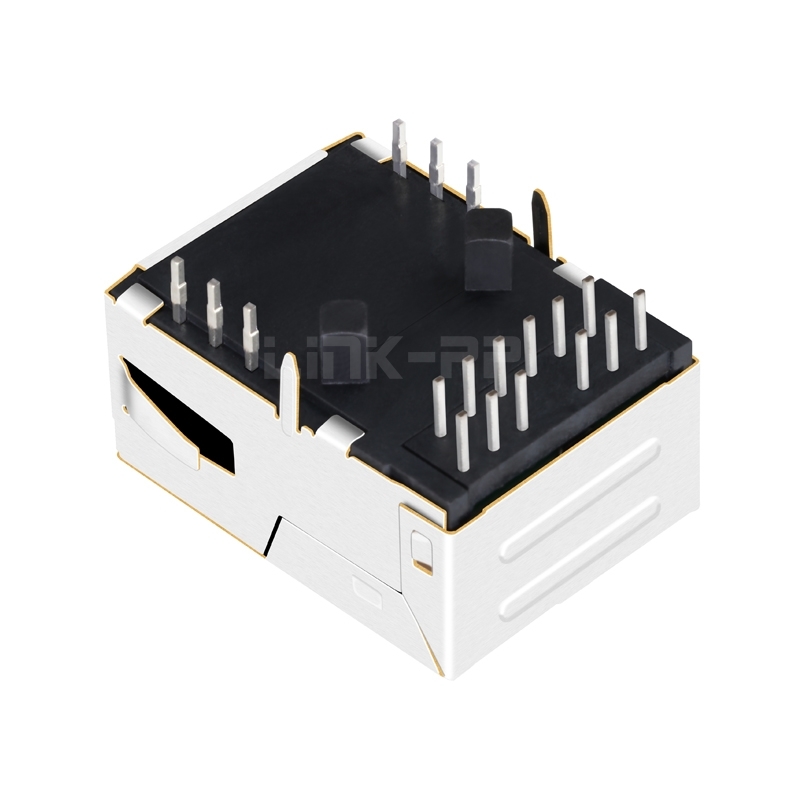

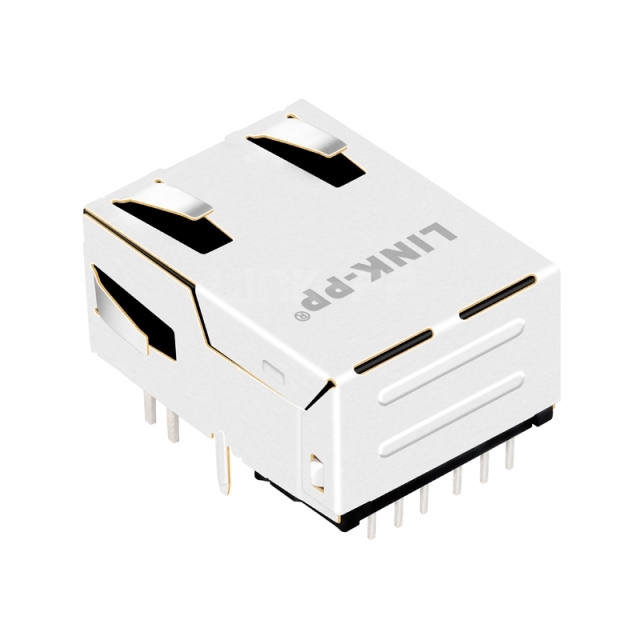

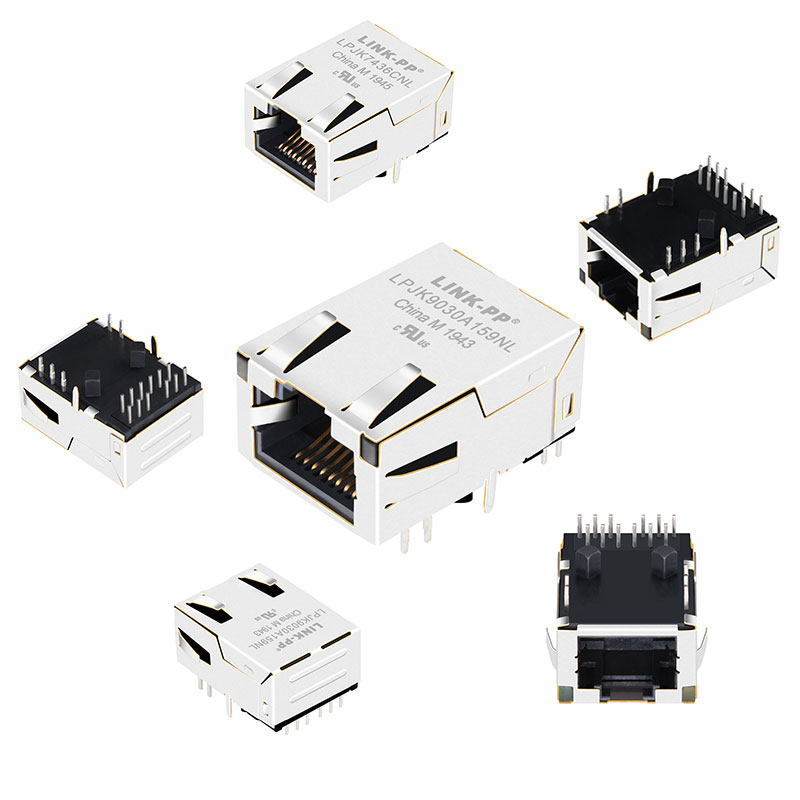

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
1 / 5
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector

Send Inquiry

Product Description

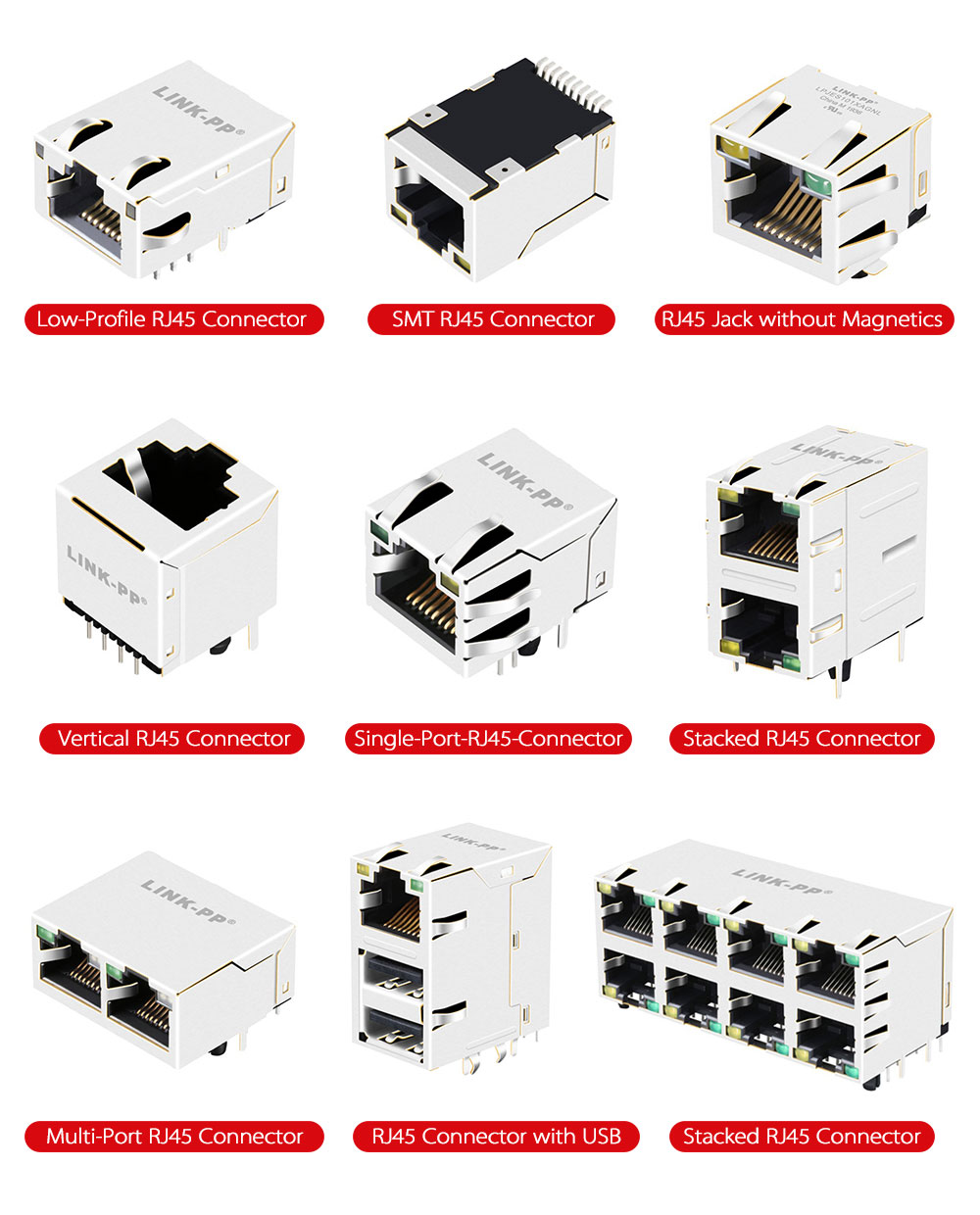

Product Selection Overview
JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJK9002A83NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10G Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram Details
Product Options Matrix
Connector Detail Graphic 1
Connector Detail Graphic 2
Connector Detail Graphic 3
Product Performance Chart 1
Product Performance Chart 2
Product Performance Chart 3
Production Process Image 1
Production Process Image 2
Production Process Image 3
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
19 years of production experience and we have partnered with major global technology leaders for many years.
Quality Standard Assurance
