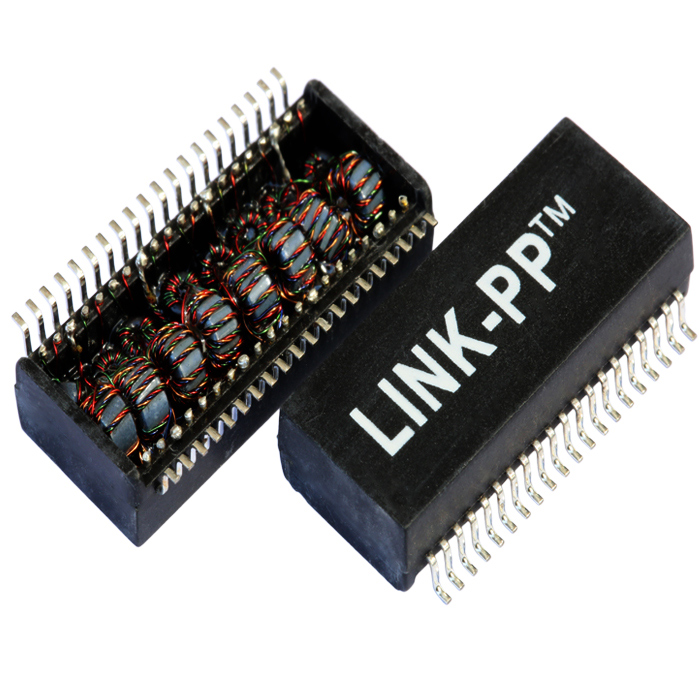

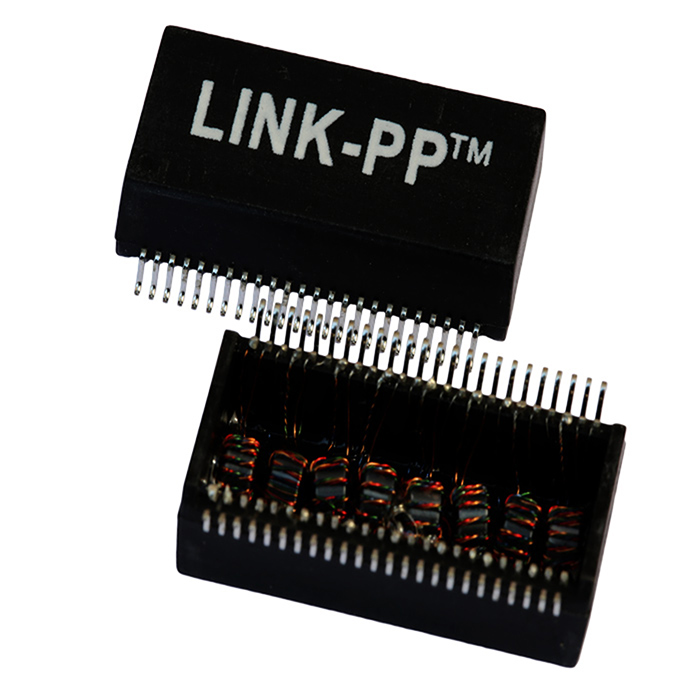

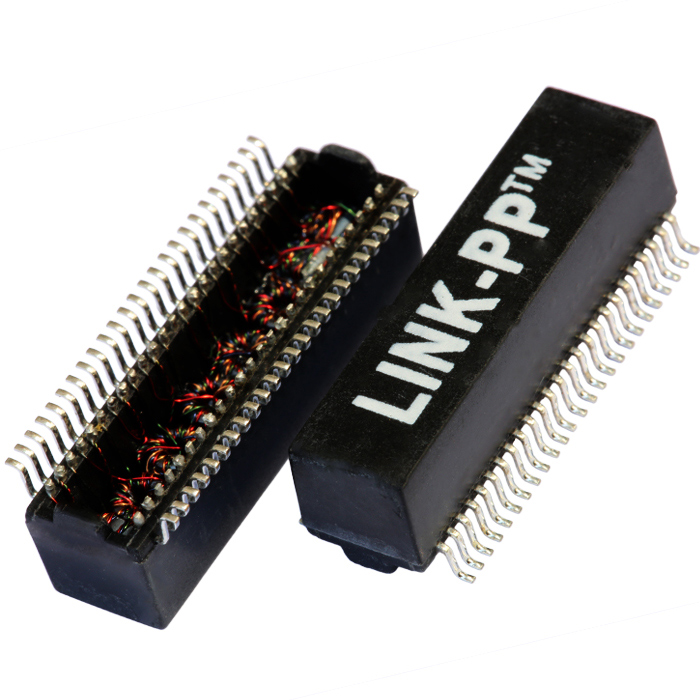

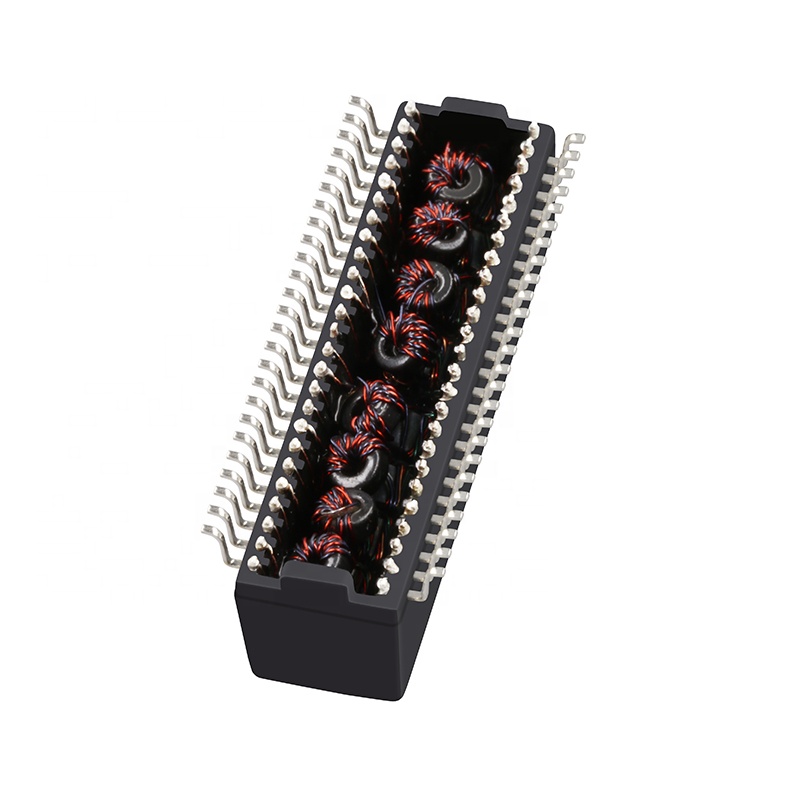

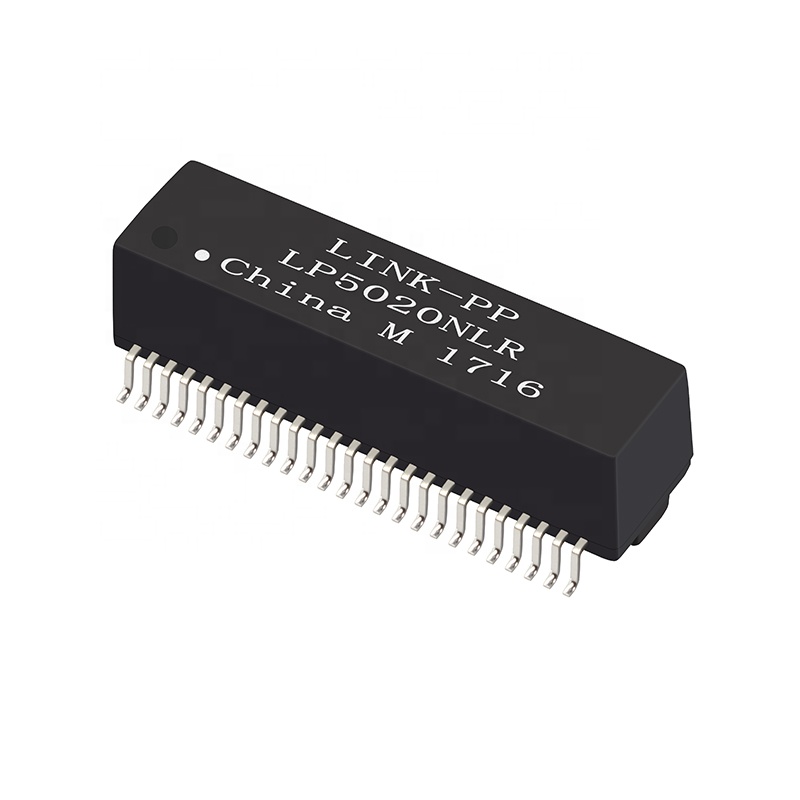

Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR
| Item | Lan Transformer |
| Replaceable Brand Model | LP5020NLR |
| Part Status | Active |
| Construction | Open frame |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single / Dual / Quad |
| Speed | 10 / 100 / 1000 Base-t |
| Cores per Port | 4 / 8 / 12 |
| Pin Number | 10 Pin / 12 Pin / 24 Pin / 48 Pin |
| Mounting Type | Dip / Smt |
| Temperature | 0℃ To 70℃ / -40℃ To 85℃ |
| AutomDX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
| Package | Tape & Reel |
The manufacturer is a specialized provider of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. The facility owns advanced manufacturing plants and test equipment imported from abroad. Established in 1997, the company currently maintains a dedicated workforce of approximately 2000 staff. With a robust production capacity of 3000K per month, we ensure efficient delivery within short lead times. Furthermore, we provide professional complete solutions for magnetic components alongside strong technical support.
Main Products include: 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters. These products are widely utilized in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, with the shipping cost covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries for detailed discussion on your specific requirements.
What is your advantage?
We bring over 19 years of production experience and have maintained long-term partnerships with major industry leaders.
