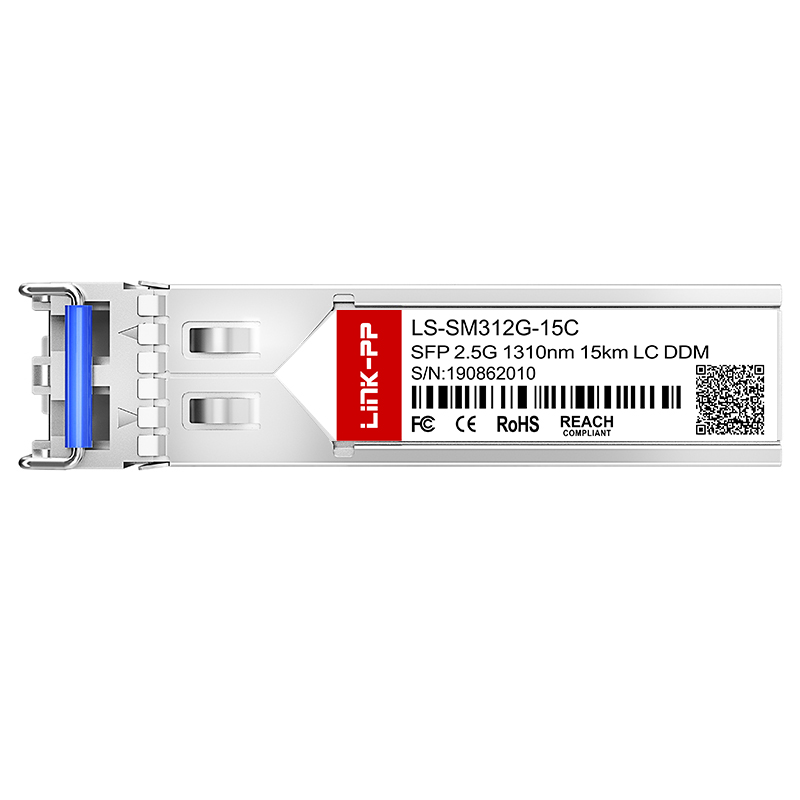

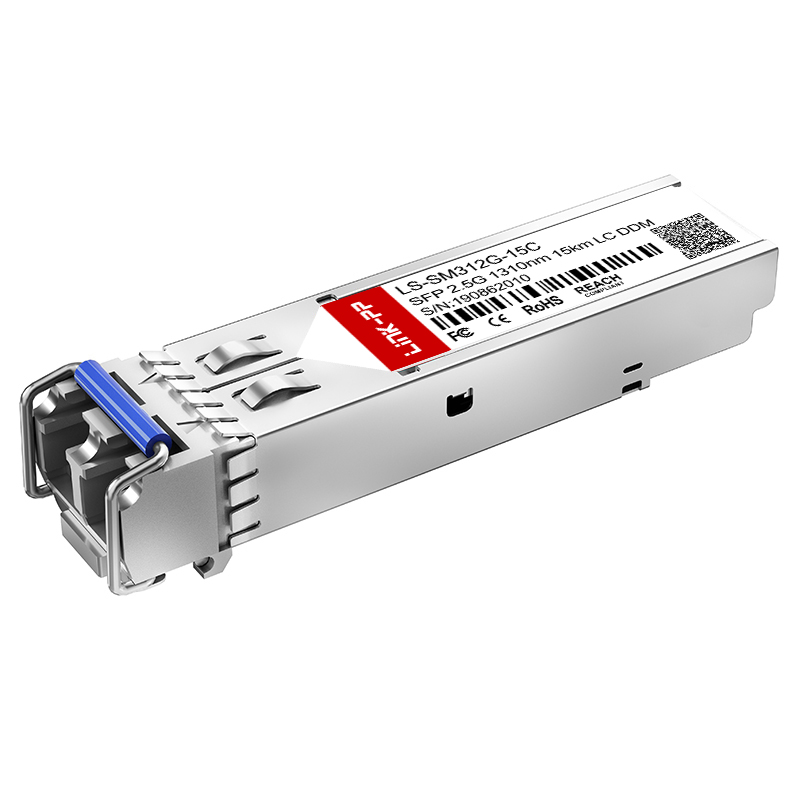

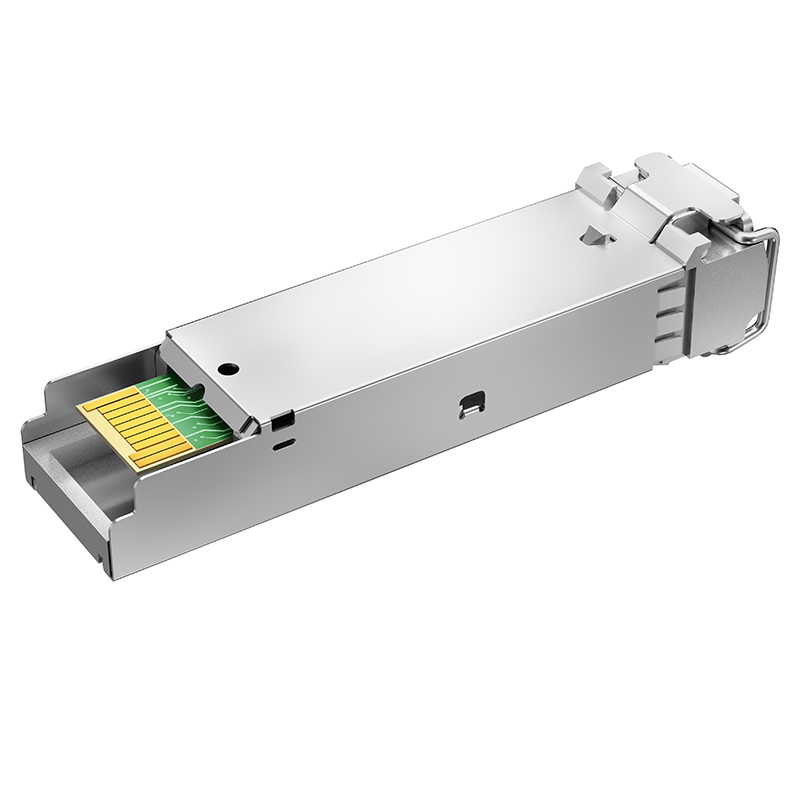

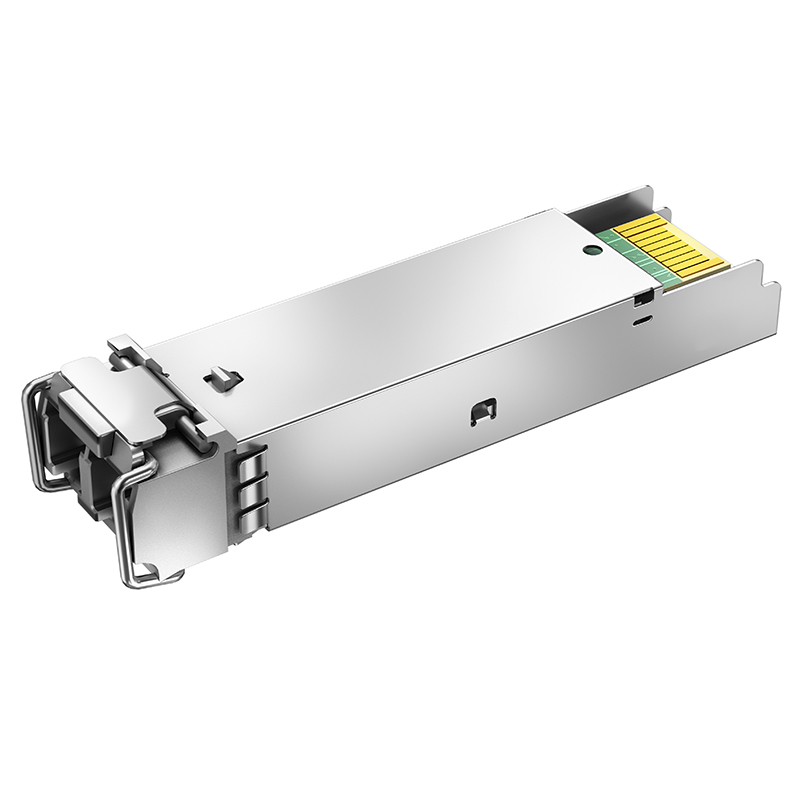

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module

Product Description

2.5GBASE-LX Single Mode 2.5G SFP 1310nm 15km SMF LC Optical Transceiver Module
Part No.LS-SM312G-15C
Form FactorSFP
Max Data Rate2.5Gbps
Wavelength1310nm
Max Cable Distance15km
ConnectorDuplex LC
MediaSMF
Transmitter TypeDFB
Receiver TypePIN
TX Power-5 ~ 0dBm
Receiver Sensitivity< -18dBm
Receiver Overload-3dBm
EMC SupportSupported
DDM/DOMSupported
ProtocolsMSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
VIEW OUR SOLUTIONS

Drawing on over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

2.5G SFP Module
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C2.5Gbps850nm300mMulti-modeYes
LS-MM852G-S5C2.5Gbps850nm550mMulti-modeYes
LS-SM312G-02C2.5Gbps1310nm2kmSingle ModeYes
LS-SM312G-10C2.5Gbps1310nm10kmSingle ModeYes
LS-SM312G-15C2.5Gbps1310nm15kmSingle ModeYes
LS-SM312G-20C2.5Gbps1310nm20kmSingle ModeYes
LS-SM552G-20C2.5Gbps1550nm20kmSingle ModeYes
LS-SM312G-40C2.5Gbps1310nm40kmSingle ModeYes
LS-SM552G-40C2.5Gbps1550nm40kmSingle ModeYes
LS-SM552G-80C2.5Gbps1550nm80kmSingle ModeYes
Optical Transport Networks

End-to-end DWDM devices including active modules and optical passive devices, such as optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, and more.

Cloud and Enterprise

Meeting demand for mass data transmission in data centers with high-speed optical modules ranging from 10G to 800G.

Wireless

High reliability solutions for 4G/5G systems including Dark Fiber, WDM, Radio over Fiber, and High Speed Mid-haul/Back-haul scenarios.

FTTx

Total solutions for global communication networks covering all-optical or combined optical-copper access products.

Subsystems

Optical cable O&M solutions integrating optical line protection (OLP) and monitoring systems (OLM) for stable operation.
