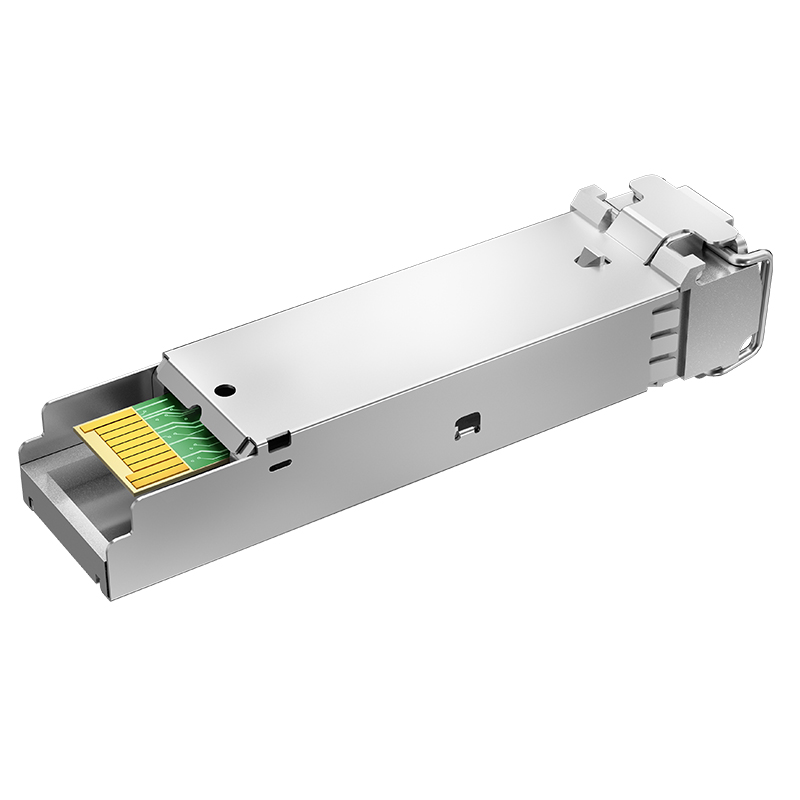

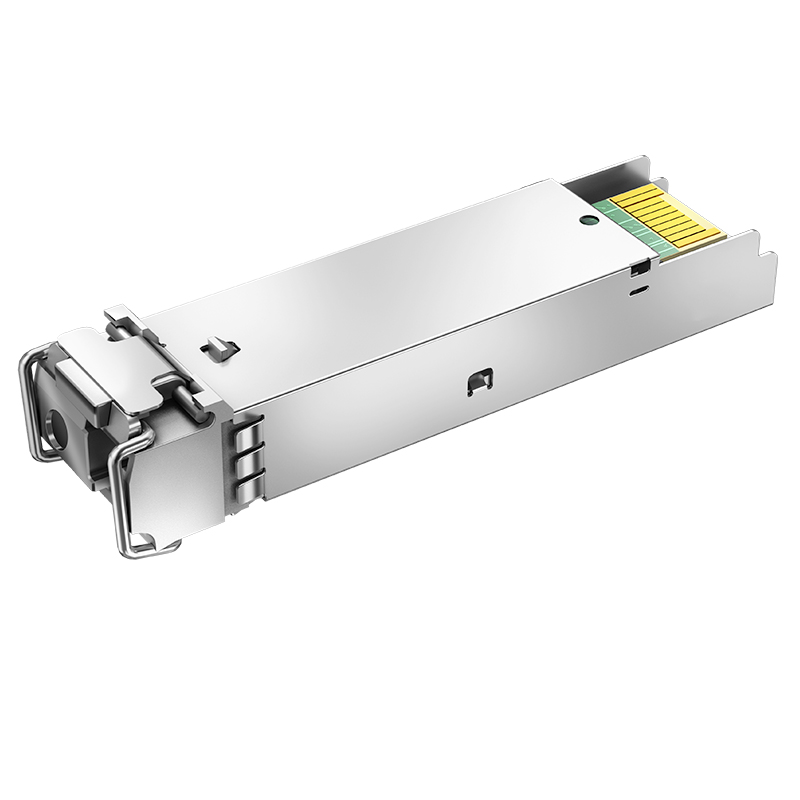

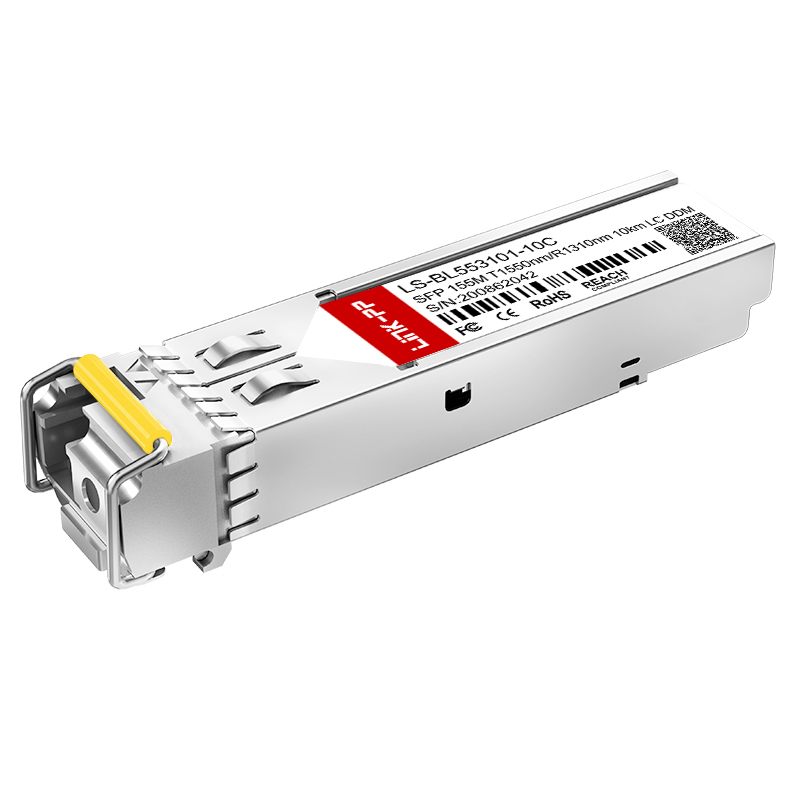

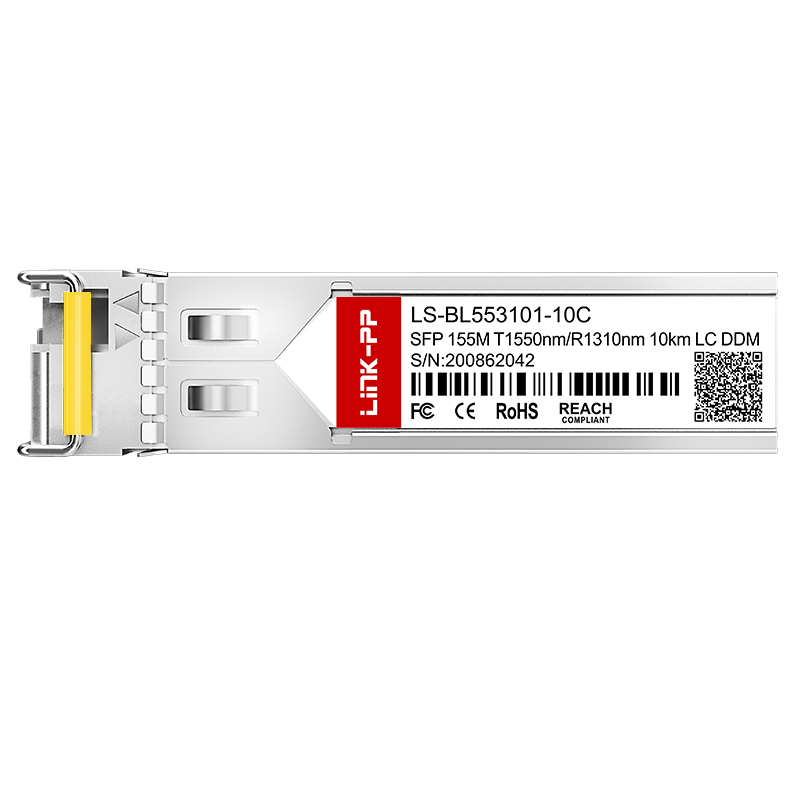

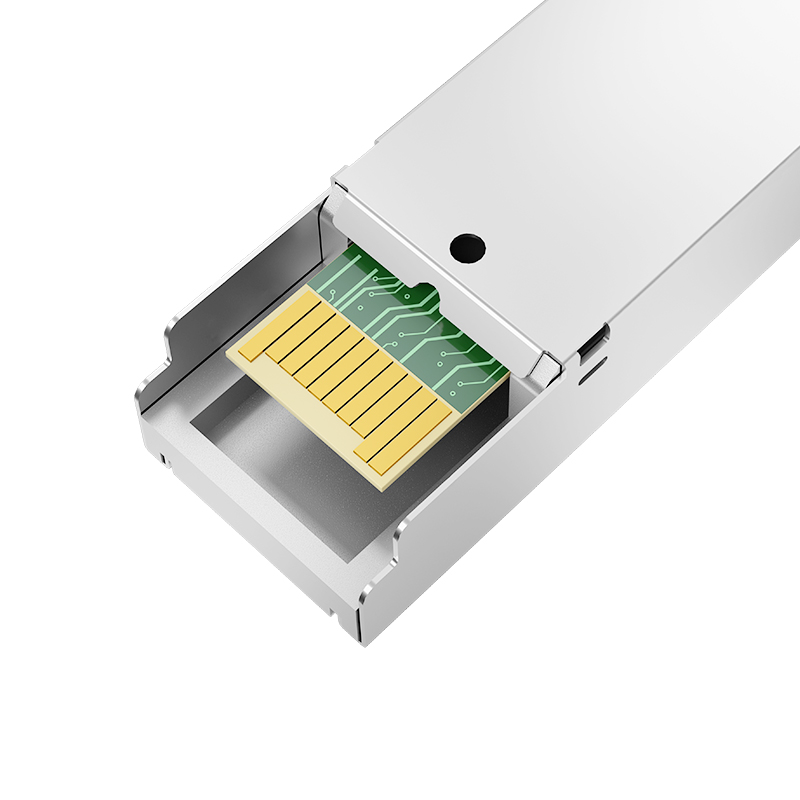

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module

1 / 5

1550nm-TX/1310nm-RX Bidirectional SMF SFP 155M Bidi 10km LC Optic Transceiver Module

Send Inquiry

Product Description

Product Specifications
Part No.	LS-BL553101-10C
Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1550nm-TX/1310nm-RX
Max Cable Distance	10km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-14 ~ -8dBm
Receiver Sensitivity	< -30dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 155M BiDi SFP

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes
LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes
LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes
LS-BL315501-80C	155Mbps	1310nm-TX/1550nm-RX	80km	FP/PIN	Yes
LS-BL553101-80C	155Mbps	1550nm-TX/1310nm-RX	80km	FP/PIN	Yes
LS-BL495501-80C	155Mbps	1490nm-TX/1550nm-RX	80km	DFB/PIN	Yes
LS-BL554901-80C	155Mbps	1550nm-TX/1490nm-RX	80km	DFB/PIN	Yes

Application Scenarios

Optical Transport Networks

Providing end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with rates ranging from 10G to 800G provides high-quality optical interconnection solutions for data centers.

Wireless

High reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul, meeting the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, providing FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, the optical cable O&M solution integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products - SFP Cage

Why Choose Us

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but shipping fees are covered by the customer.

What is your delivery time?

Ready-to-ship items are dispatched immediately from stock, and mass production orders typically take 15-30 days.

What after-service support do you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, please send your inquiries and requirements to us so we can discuss the details.

What is your competitive advantage?

We have over 19 years of professional production experience, working with global partners to deliver industry-certified, high-reliability products.
