FiddlLink
FiddlLink

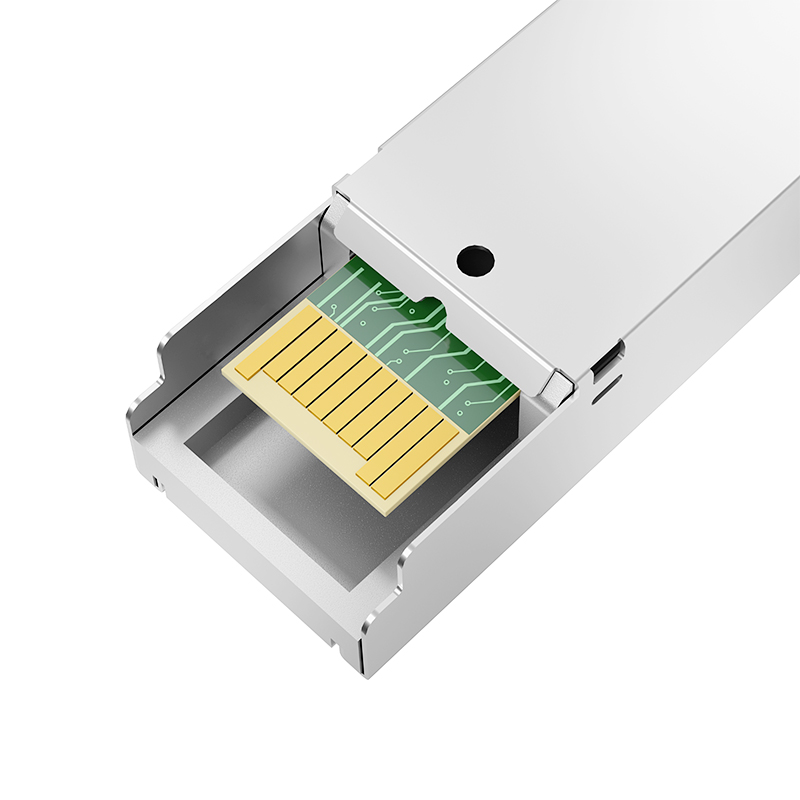

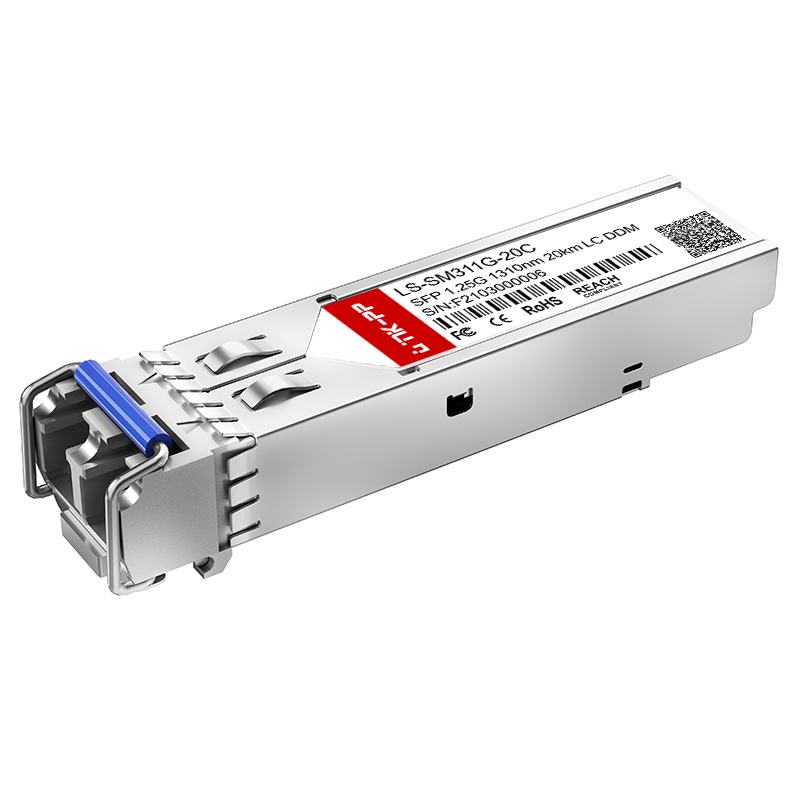

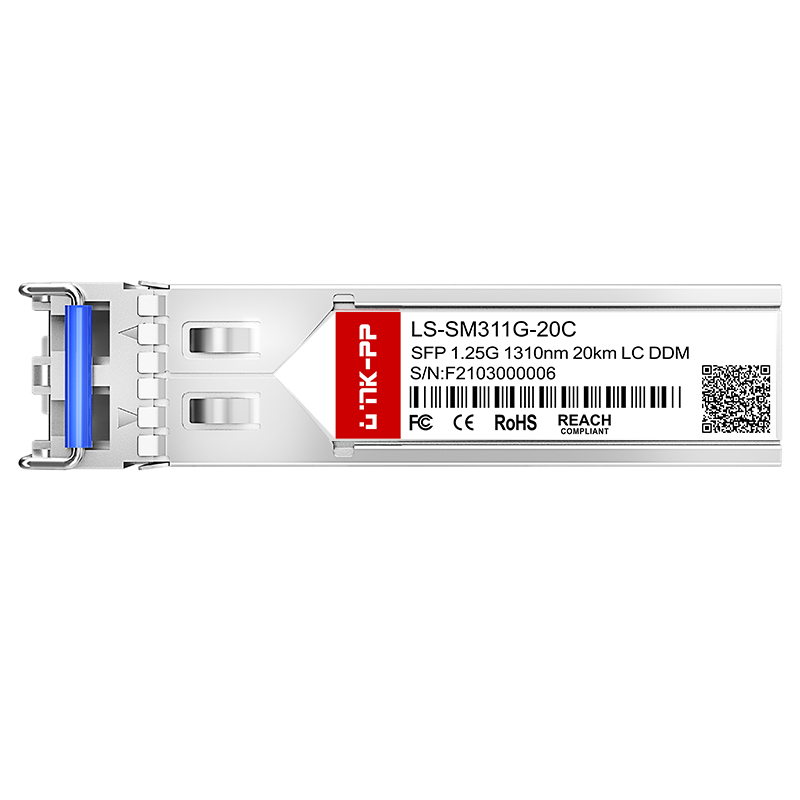

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1000Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Fiber Type | SMF |
| Media | 1x1 Port |
| Connector | Duplex LC |
| Power Consumption | <1W |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| EMC (Electro Magnetic Compatibility) | Supported |
| MTBF | 1,000,000 Hours |
| Protocols | IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical-copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we have around 2,000 staff at present. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Ready to ship for stock items and 15-30 days for mass production.
One year guarantee period and we can offer technical support online 24 hours.
Yes, please send inquiry to us so that we can have a detailed discussion.
19 years of production experience and long-term partnerships with leading global technology enterprises.
