Product Description

Vertical RJ45 100 Base-T With LEDs Connector RJ45 Jack LPJD0012BENL
RJ45 Female Connector Series
■ Products Description
Item RJ45 Female Connector
Part Number LPJD0012BENL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

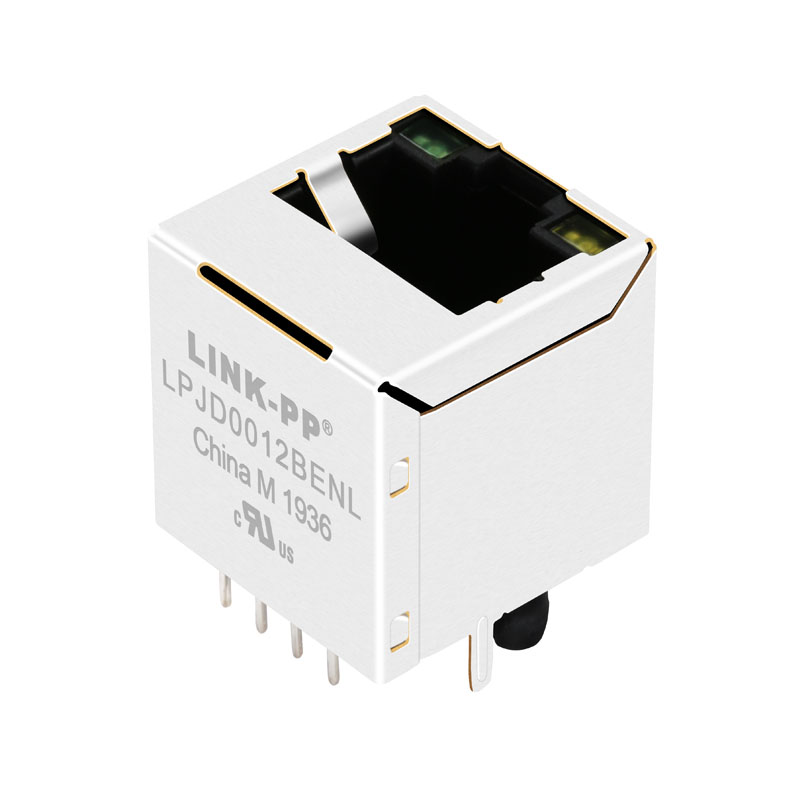

Product Angle View 1

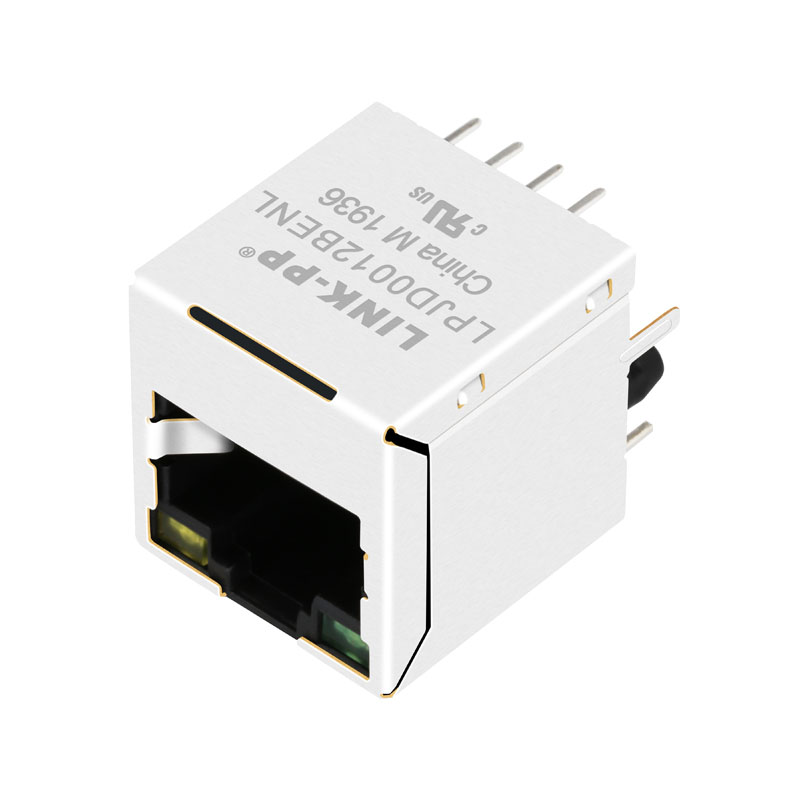

Product Angle View 2

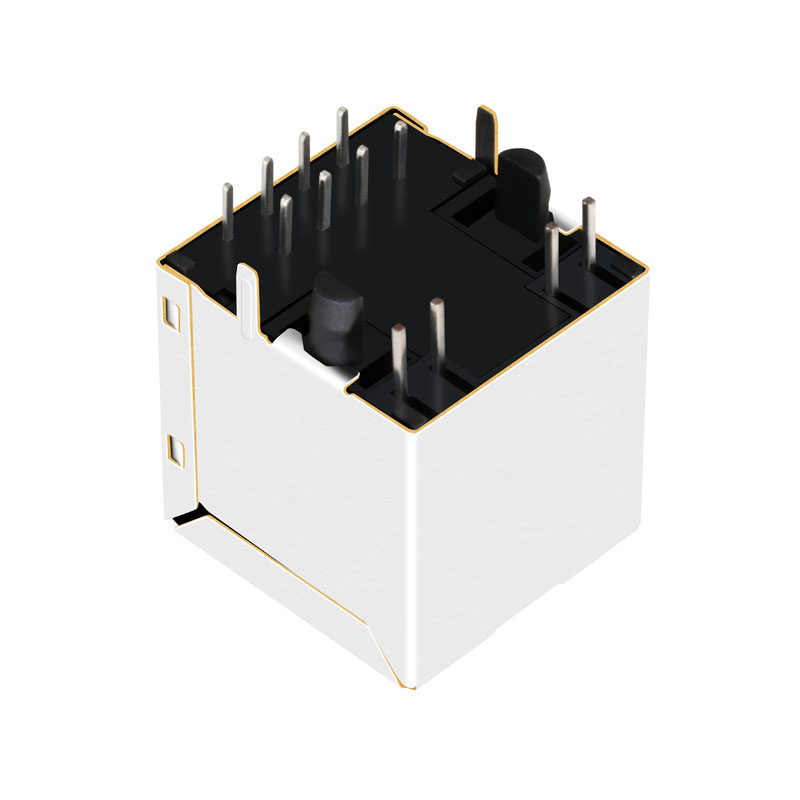

Detail Image 1

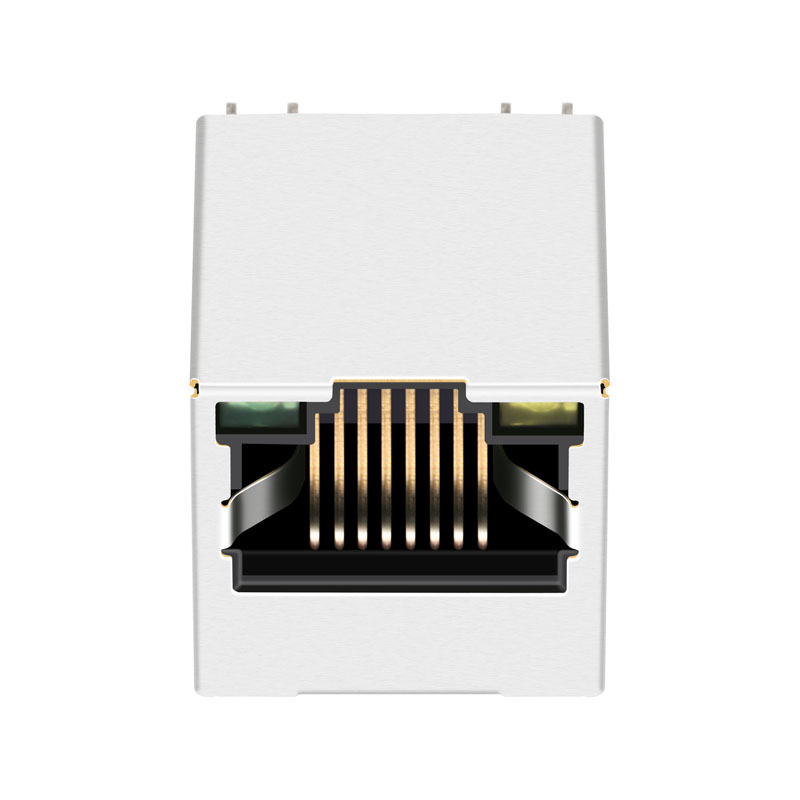

Detail Image 2

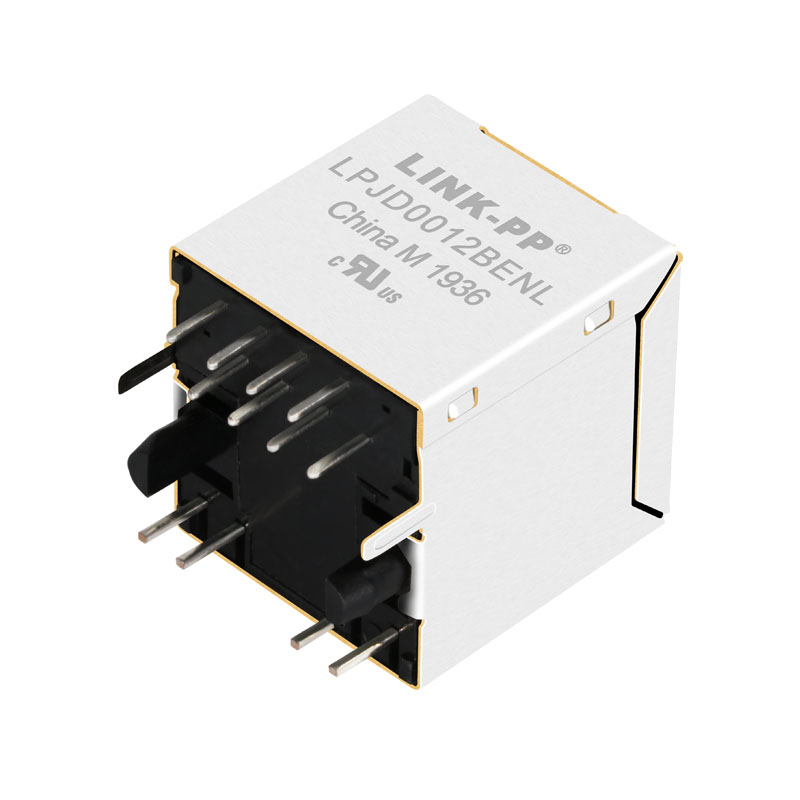

Detail Image 3
Detail Image 4
