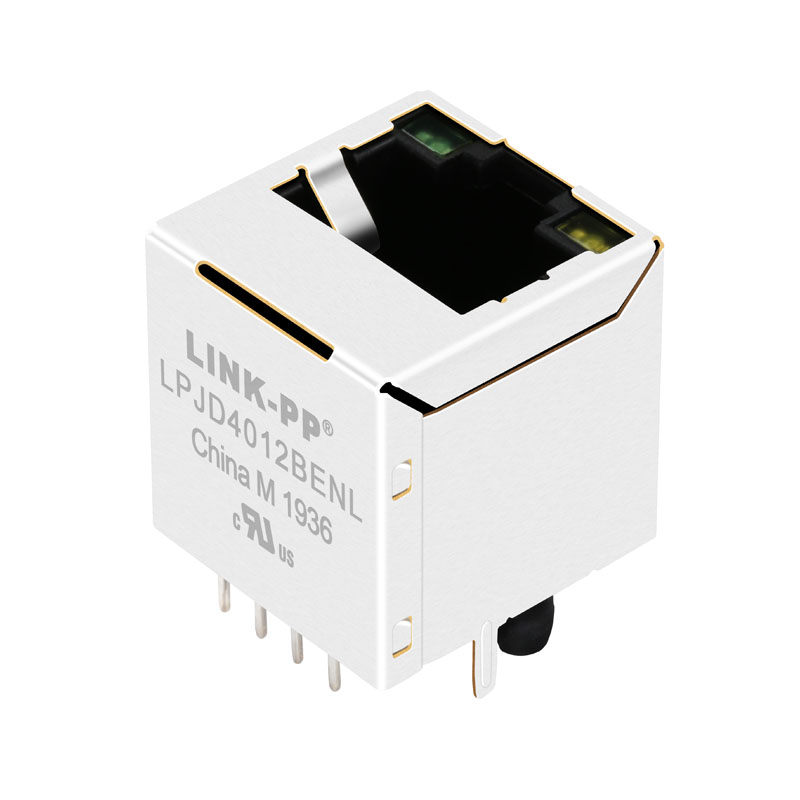

SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
1 / 5
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds

SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds

Send Inquiry

Product Description

SI-46014-F 10/100 Base-t Ethernet Top Entry Vertical Magnetic Female RJ45 Connector With Leds
Ethernet Connectors Showcase
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD4012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Diagram
Connector Categories
Technical Specifications Drawing
Feature View 1
Feature View 2
Feature View 3
Application Details 1
Application Details 2
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading global Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Area 1
Manufacturing Area 2
Quality Inspection
Frequently Asked Questions
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, with the shipping fee covered by the buyer.
3. What is your delivery time?
Items are ready to ship from stock, and mass production takes approximately 15-30 days.
4. What after-sales service do you offer?
We provide a one-year warranty period and 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so we can discuss the details.
6. What is your advantage?
With over 19 years of production experience, we have been a trusted partner to leading global technology enterprises for many years.
