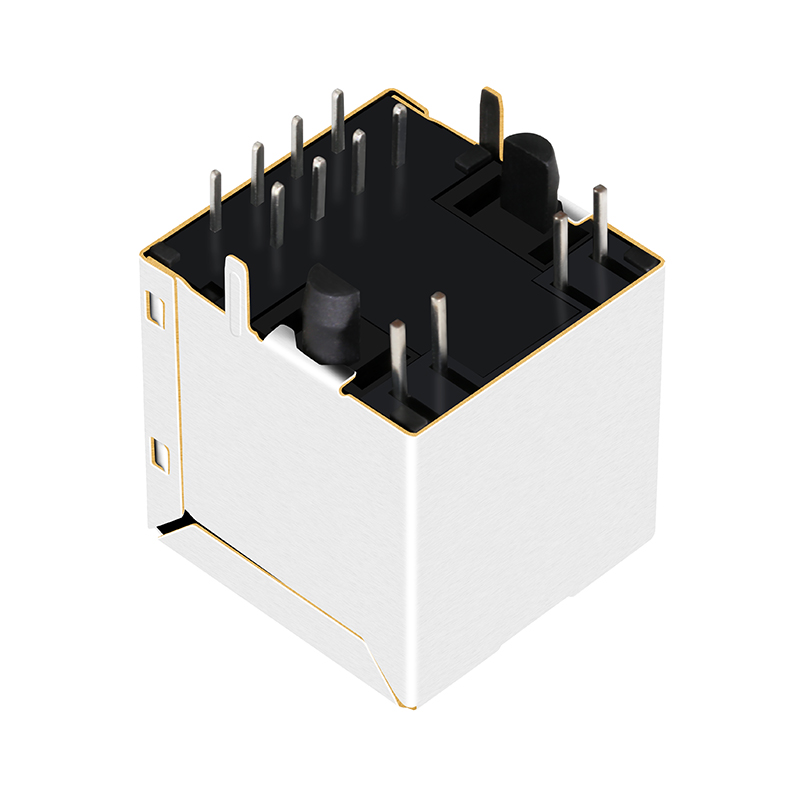

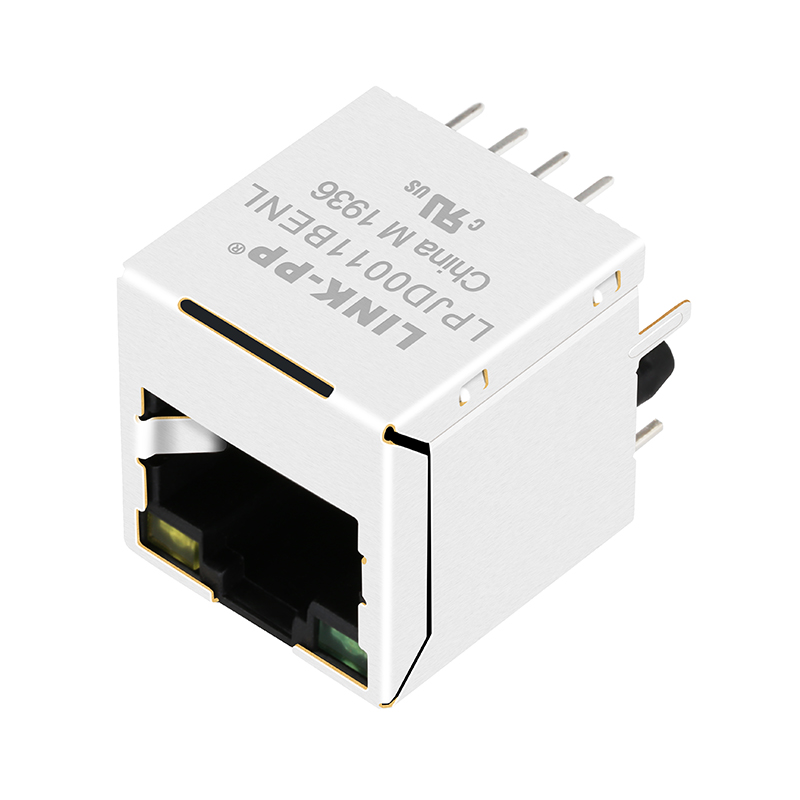

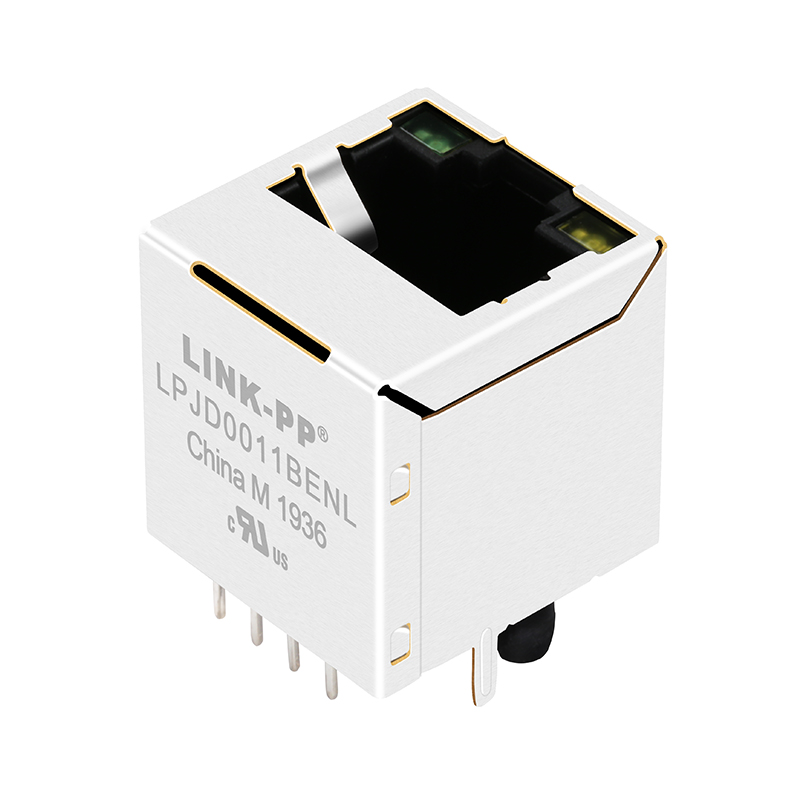

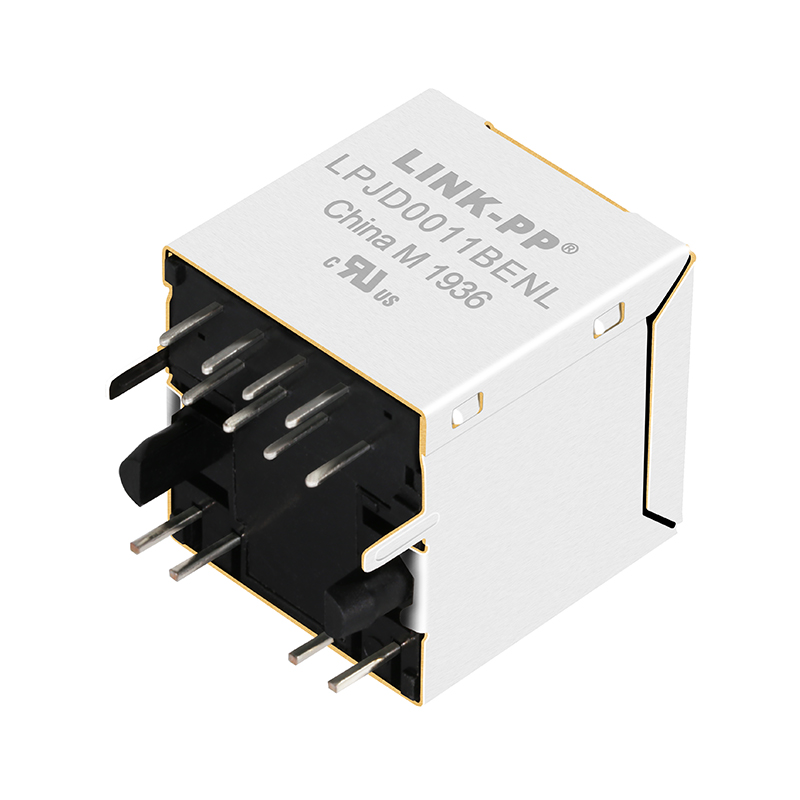

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds

Product Description

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
Ethernet Magnetic RJ45 Connector Group
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

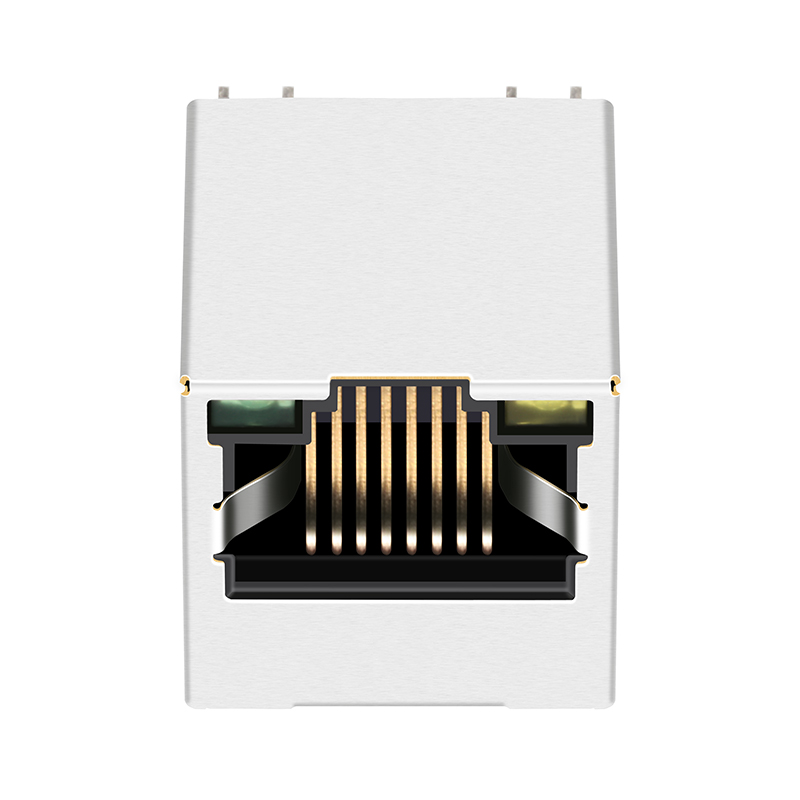

RJ45 Connector Detail View
Product Range Overview
Product Categories Overview
Technical Dimensions & Quality Standards
Technical Dimensions Drawing
Testing and Validation
Packaging Information
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Workshop
Quality Management
Testing Equipment
Team and Exhibition
Company Facility
Manufacturing Line
Frequently Asked Questions
Q1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are to be covered by the buyer.
Q3. What is your delivery time?
For in-stock items, products are ready to ship immediately. For mass production, the delivery time generally takes 15 to 30 days.
Q4. What after-sales service do you provide?
We offer a one-year warranty period alongside 24-hour online technical support.
Q5. Do you accept OEM/ODM orders?
Yes, we gladly welcome OEM/ODM requirements. Please contact us with your specifications for a detailed discussion.
Q6. What are your key advantages?
We have over 19 years of professional manufacturing experience and serve as a reliable partner to leading global technology brands.
