We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

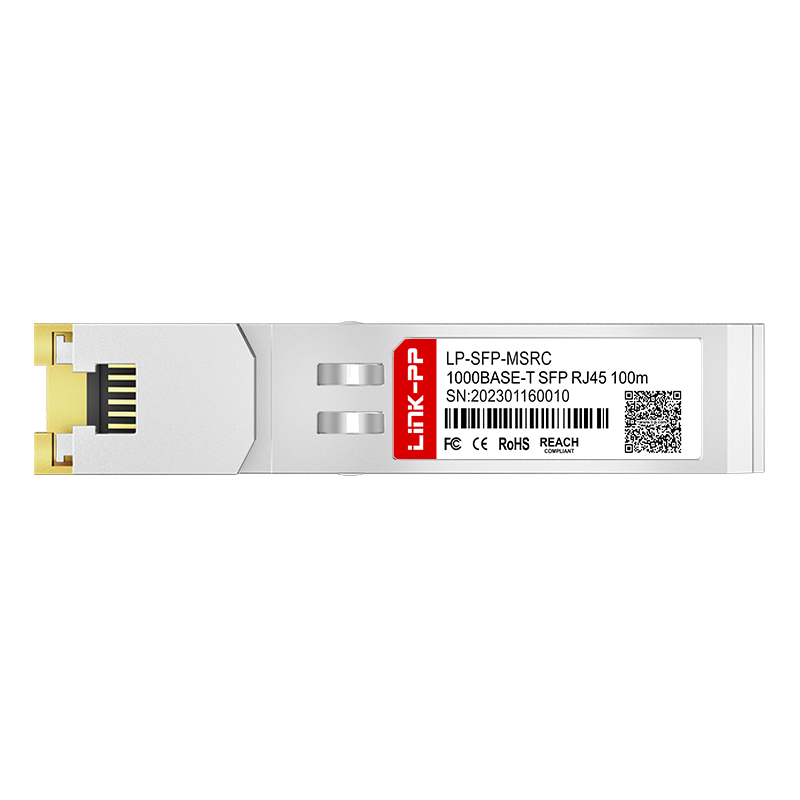

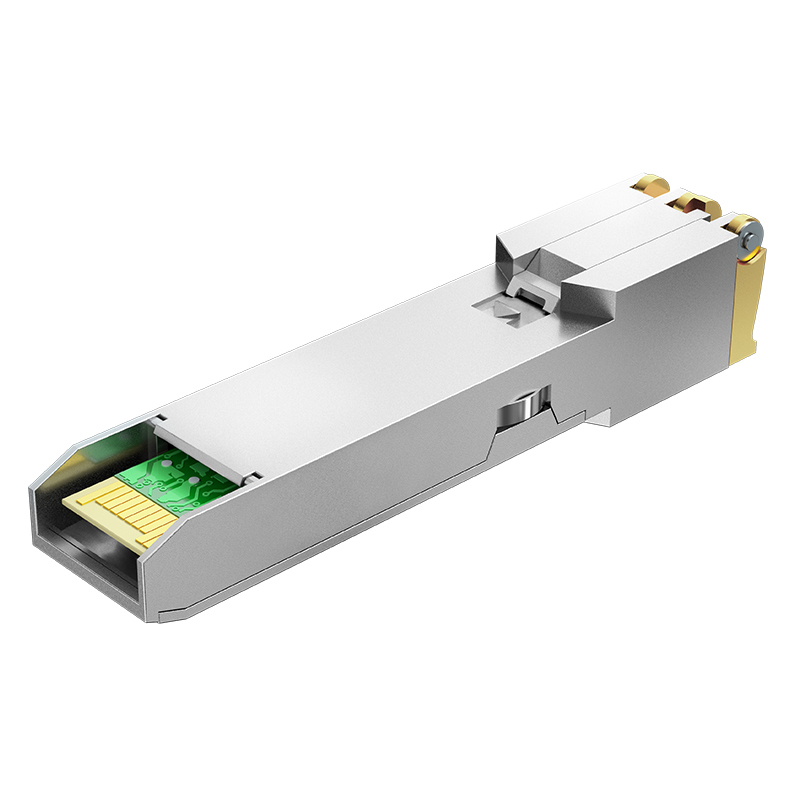

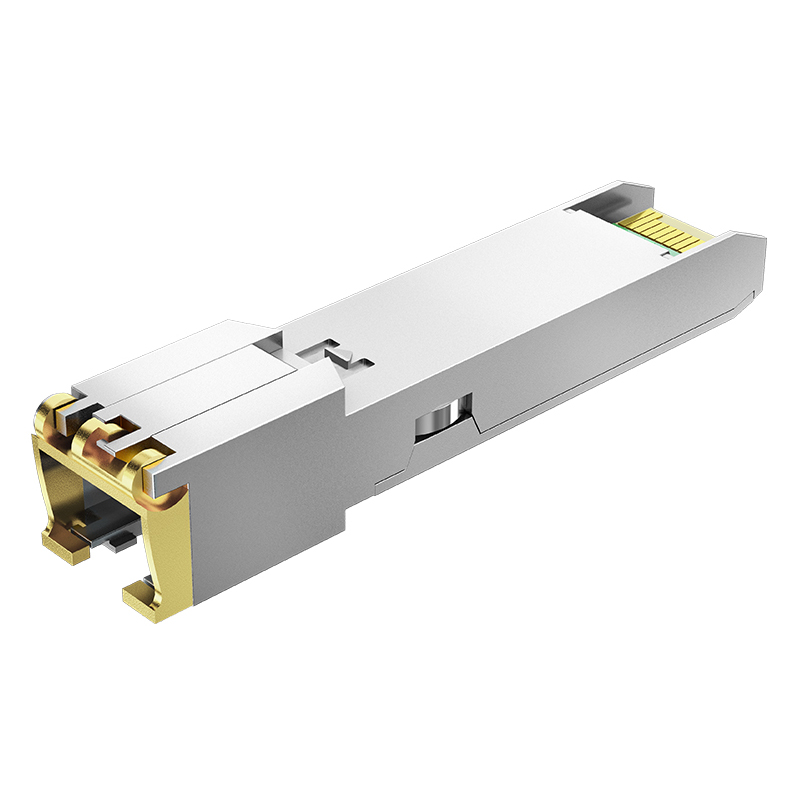

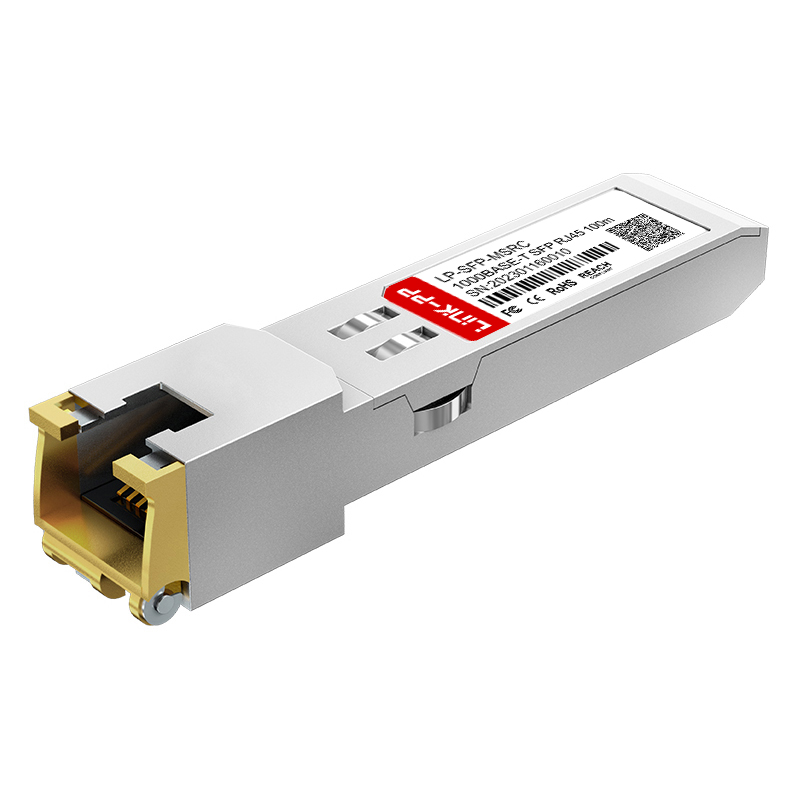

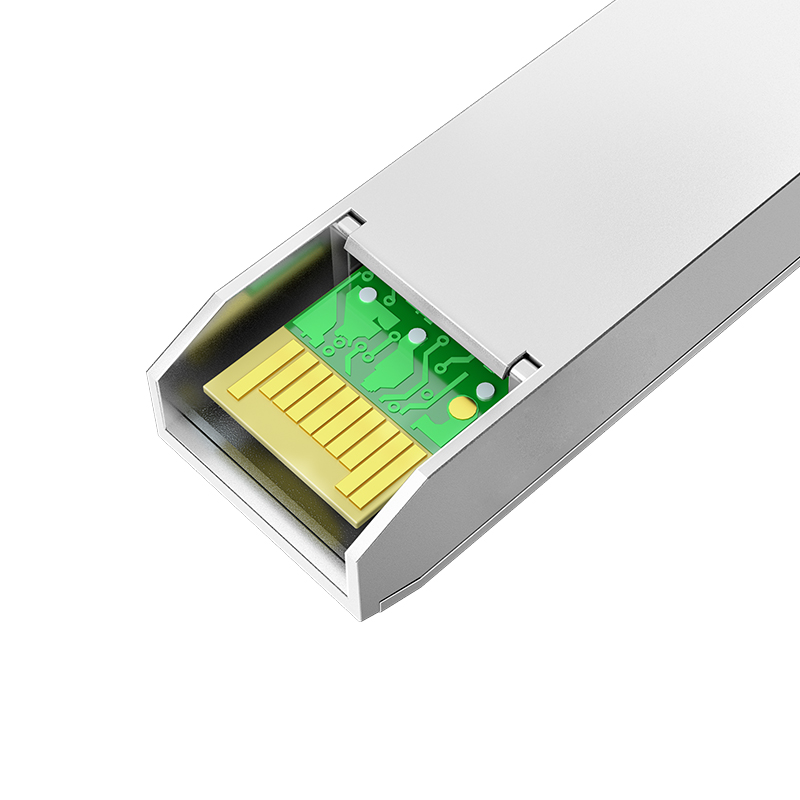

| Parameter | Specification |
|---|---|
| Part No. | LP-SFP-MSRC |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Max Cable Distance | 100m |
| Connector | RJ45 |
| Media | Cat 5e/6/6a (UTP) |
| Typical Power Consumption | ≤1.2w |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Not Supported |
| Protocols | IEEE Std 802.3 and 802.3ab, SFP MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Connector | Media | Distance |
|---|---|---|---|---|
| LP-RJ4501-TC | 100Mbps | RJ-45 | Cat 5/Cat 6/Cat 6a | 100m |
| LP-SFP-TMRC | 10/100/1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-SFP-TM8C | 10/100/1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-SFP-MS8C | 1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-SFP-MSRC | 1000Mbps | RJ-45 | Cat 6/Cat 6a | 100m |
| LP-RJ452G-TC | 2.5Gbps | RJ-45 | Cat5e | 100m |
| LP-RJ45TG-3YC | 10Gbps | RJ-45 | Cat6a/Cat7 or Better | 30m |
| LP-RJ45TG-8YC | 10Gbps | RJ-45 | Cat6a/Cat7 or Better | 100m |
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our company was established in 1997, we have about 2000 employees at present. With the abundant production capacity of 3000K per month, we are able to deliver products within a short time. In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
