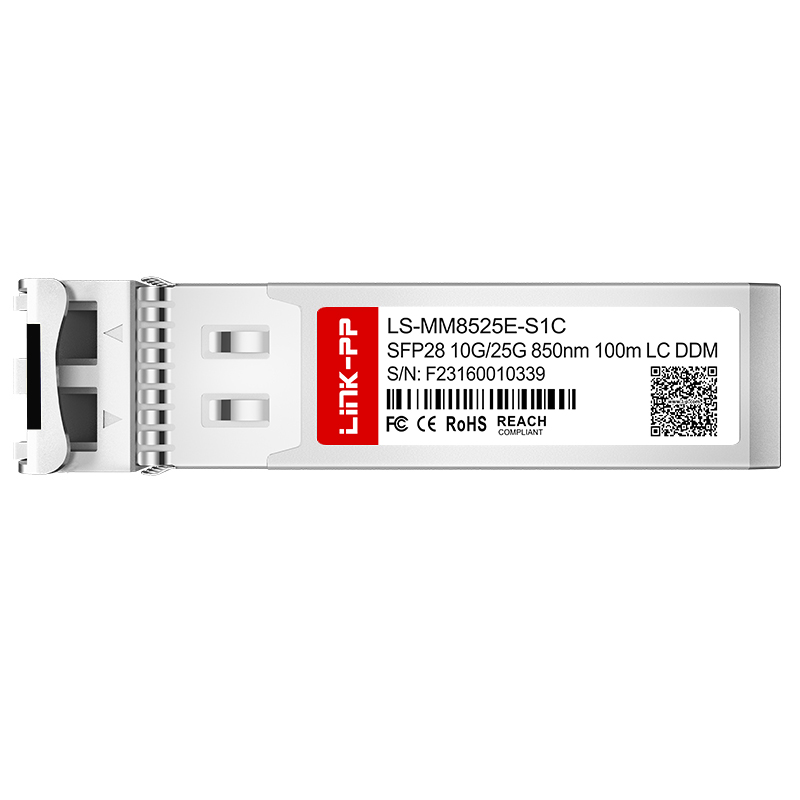

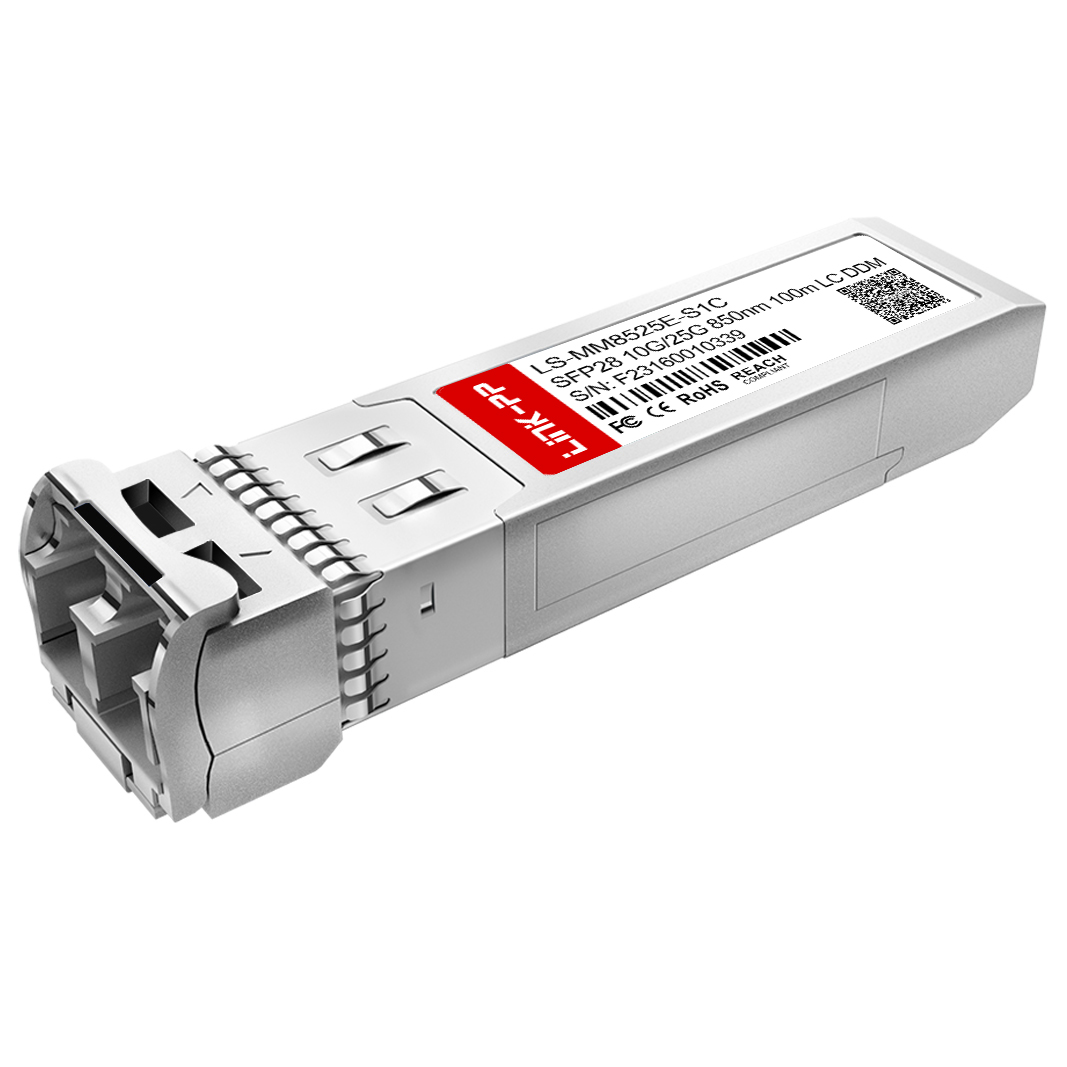

Cisco SFP-10/25G-CSR-S Compatible Dual rate 10G/25G SFP28 Transceiver 100m MMF Optical Transceiver
Products Description
| Item |
25G SFP28 Transceiver |
| Part No. |
LS-MM8525E-S1C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
10G/25Gbps |
| Wavelength |
850nm |
| Max Cable Distance |
100m |
| Media |
MMF |
| Connector |
Duplex LC |
| Optical Component |
VCSEL/PIN |
| TX Power |
-6.4~2.4dBm |
| Receiver Sensitivity |
<-6dBm |
| Receiver Overload |
2.4dBm |
| Power Consumption |
≤1.2W |
| Extinction Ratio |
2dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0°C to 70°C / -40°C to 85°C |
| Protocols |
IEEE 802.3by, SFP28 MSA, SFF-8472, SFF-8432, CPRI, eCPRI |
| Warranty |
5 Years |
| Sample |
Available |
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical module which the product rate ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aiming at global communication network constructors, total FTTx optical fiber access solutions covered from all-optical or optical copper combined access solutions and products are provided.
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM) is provided.
⚙ Related Products SFP Cage ⚙
Why Choose Us
Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, with around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we can provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
FAQ
❔ 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
❔ 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered on your end.
❔ 3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
❔ 4. What after-service can you offer?
One year guarantee period and online technical support is available 24 hours.
❔ 5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
❔ 6. What is your advantage?
We have 19 years of production experience and have been a trusted partner for global enterprises for many years.
