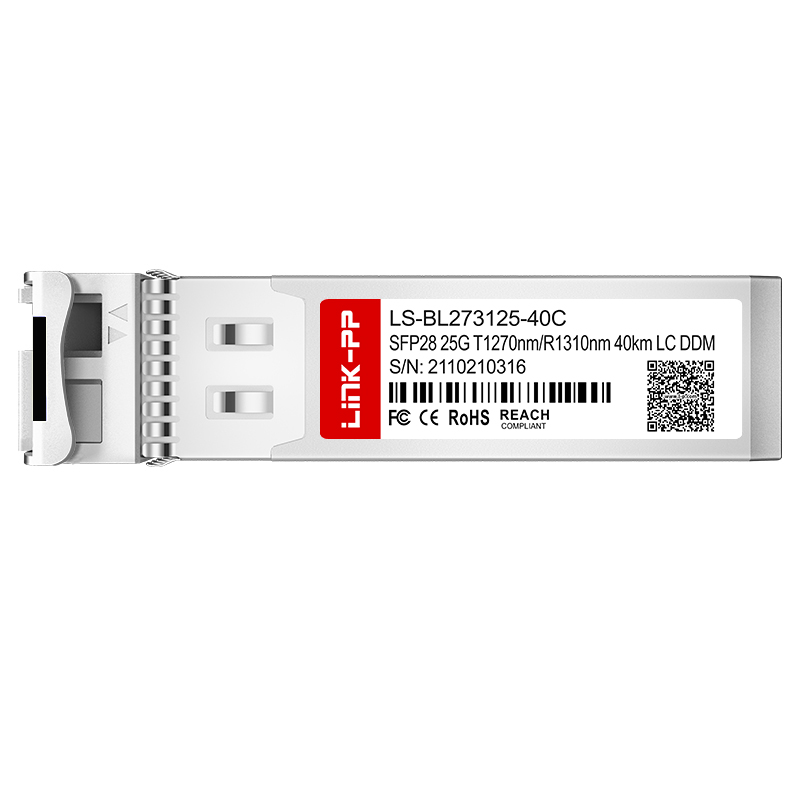

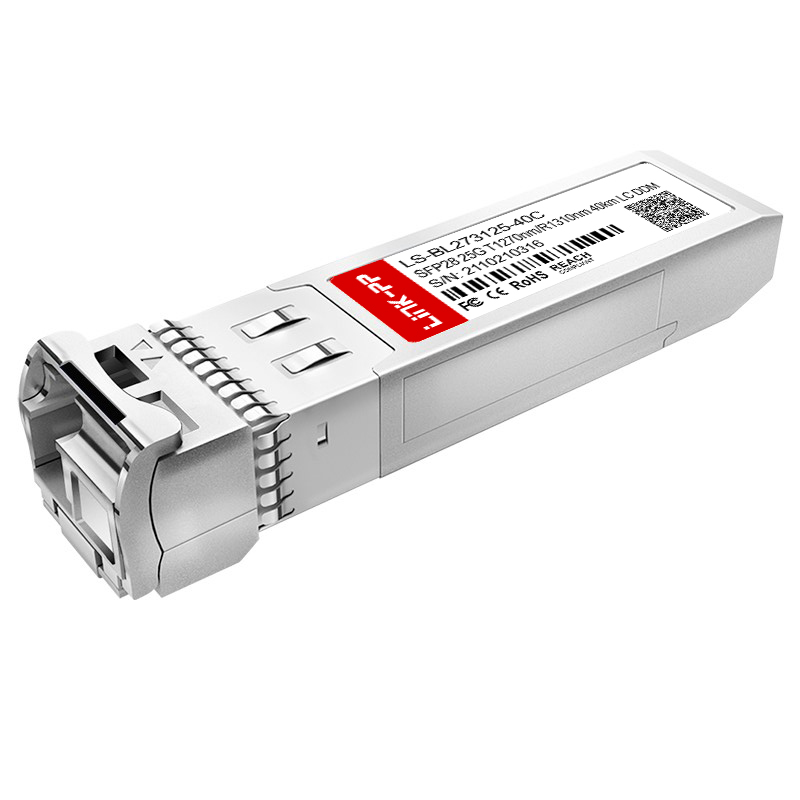

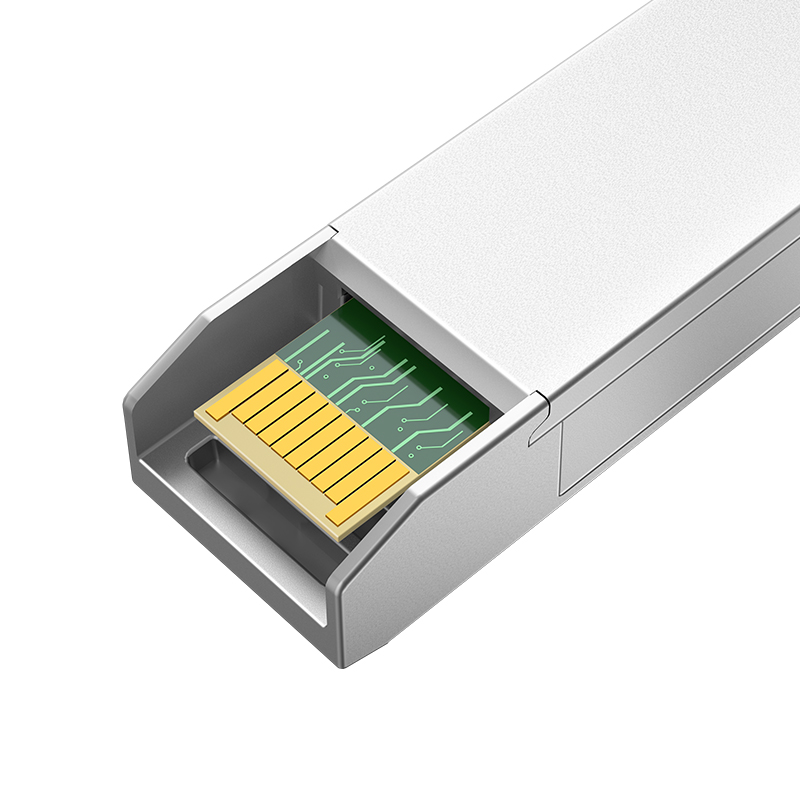

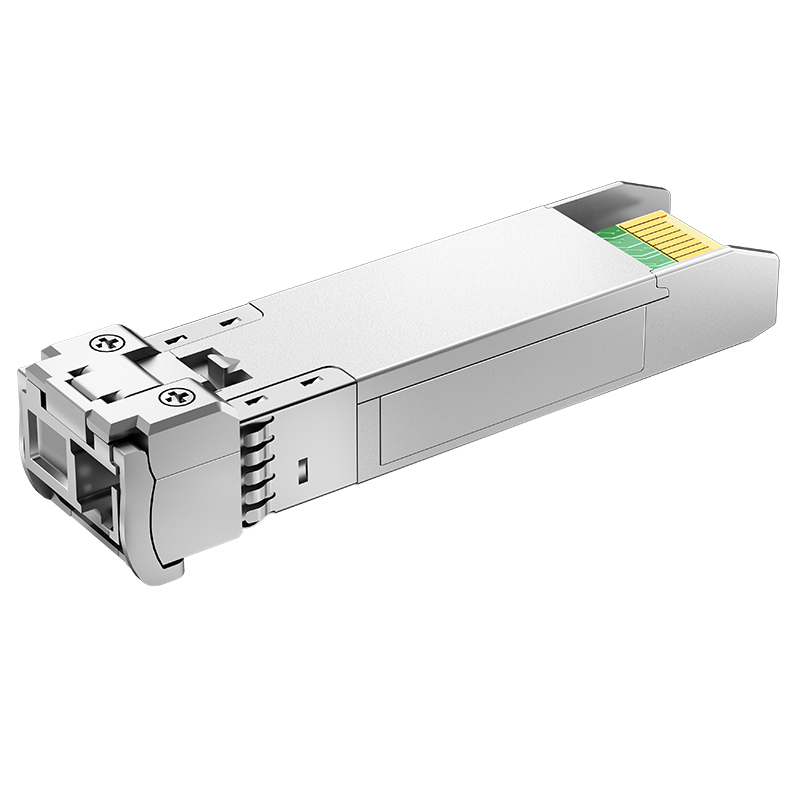

Bidirectional 1270nm-TX/1310nm-RX SFP28 25G BiDi Transceiver 40km Simplex LC SMF DDM Optical Module
Products Description
| Item |
25G SFP28 Transceiver |
| Part No. |
LS-BL273125-40C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
25Gbps |
| Wavelength |
1270nm-TX/1310nm-RX |
| Max Cable Distance |
40km |
| Media |
SMF |
| Connector |
Simplex LC |
| Optical Component |
DFB/APD |
| TX Power |
0~6dBm |
| Receiver Sensitivity |
<-18dBm |
| Receiver Overload |
2dBm |
| Power Consumption |
1.2W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0°C to 70°C / -40°C to 85°C |
| Protocols |
MSA Compliant, CPRI, eCPRI |
| Warranty |
5 Years |
| Sample |
Available |
