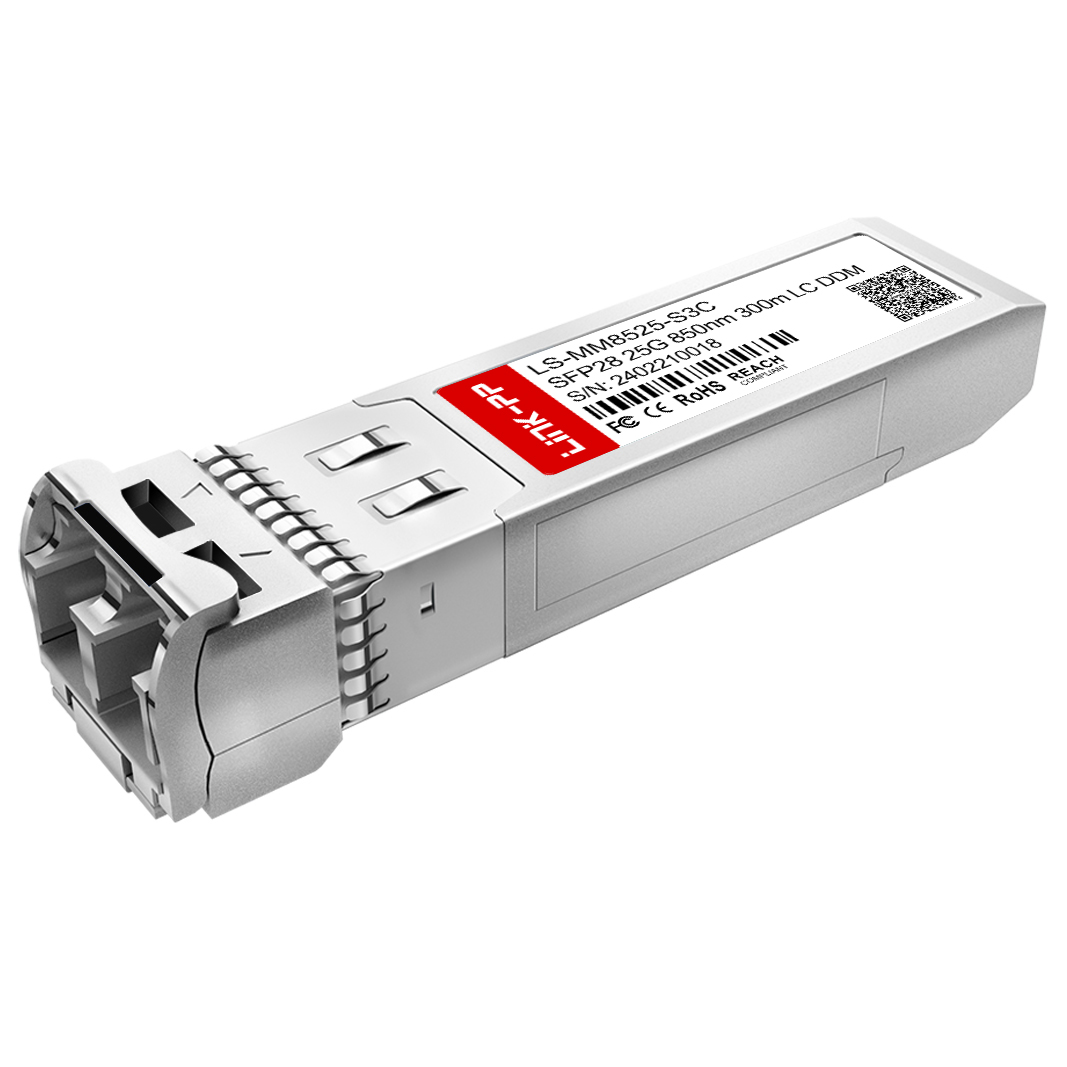

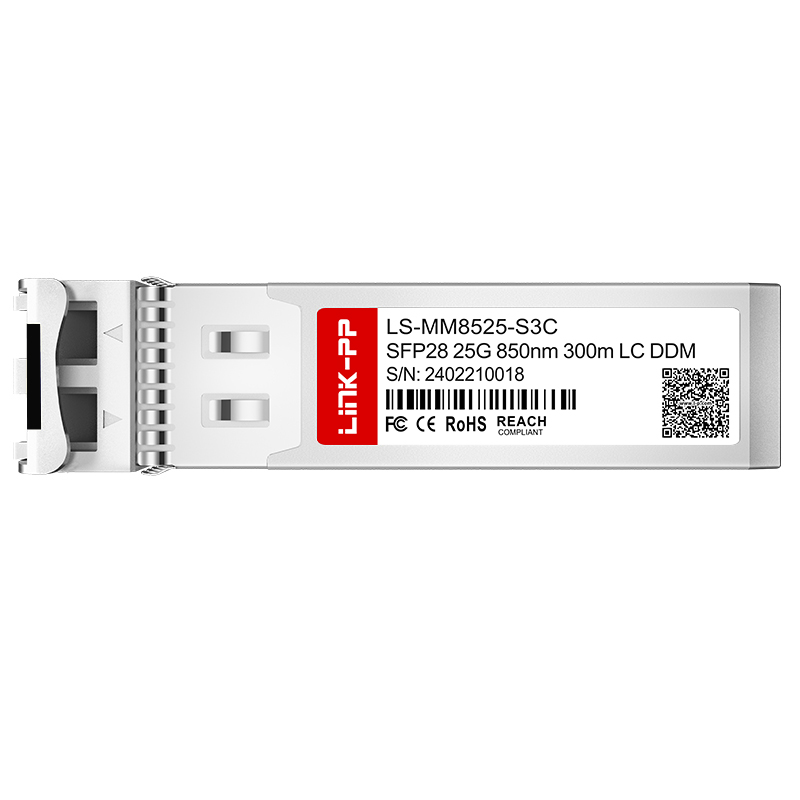

| Item | 25G SFP28 Transceiver |
| Part No. | LS-MM8525-S3C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | VCSEL/PIN |
| TX Power | -6.4~2.4dBm |
| Receiver Sensitivity | <-6dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | 2dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432 |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device solutions with almost all optical components - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G provide high-quality optical interconnection solutions for data centers.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Designed for global communication network constructers, FTTx optical fiber access total solutions cover all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, the optical cable O&M solution integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
