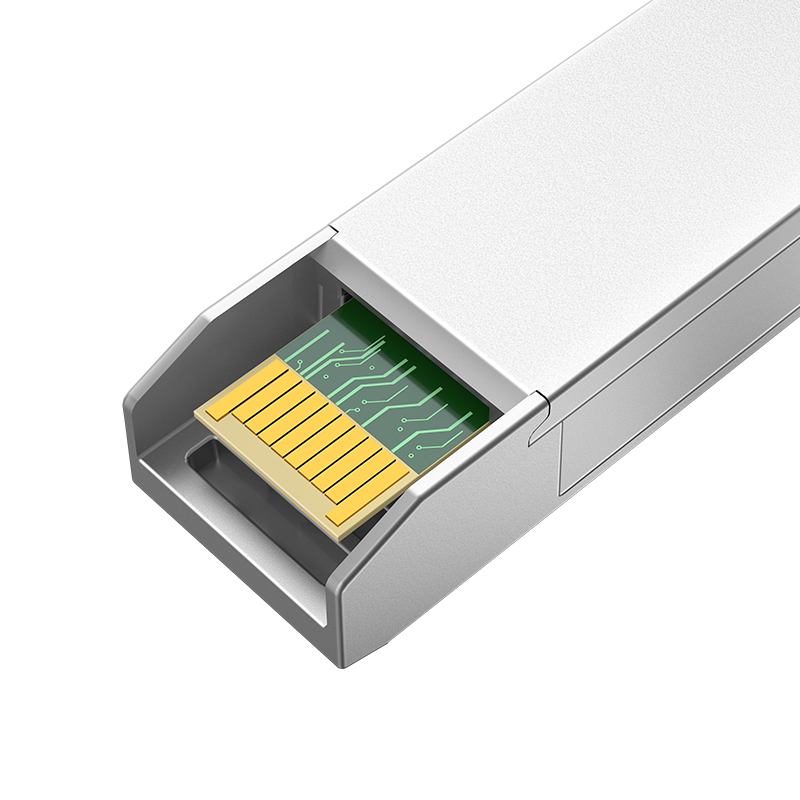

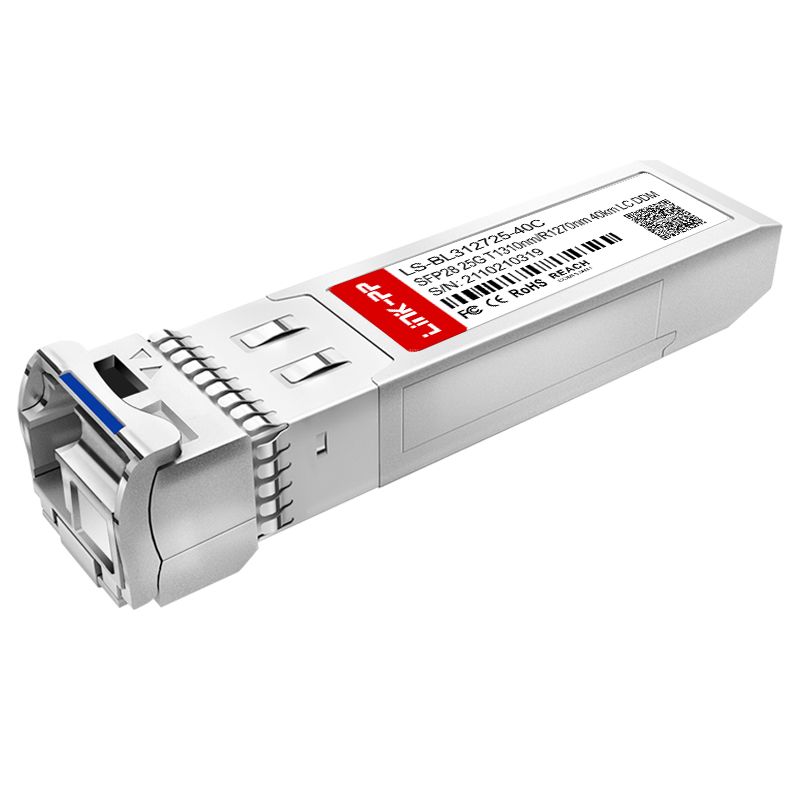

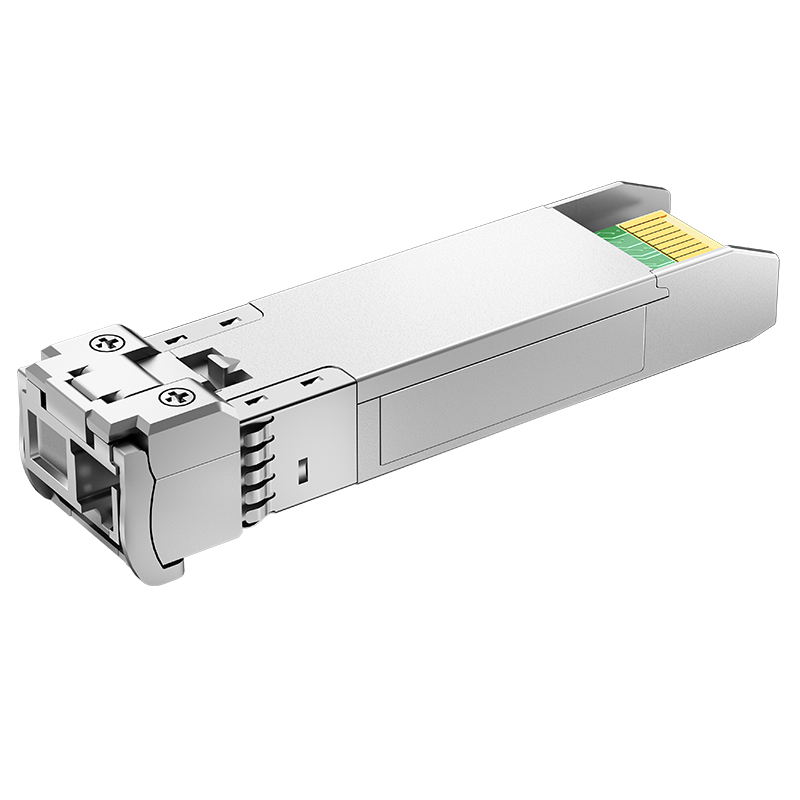

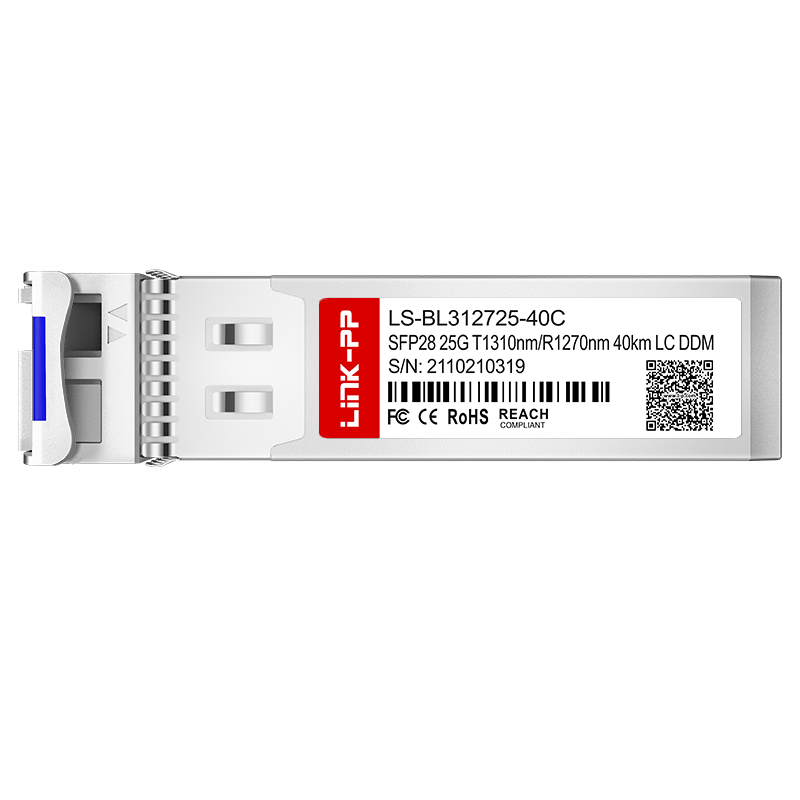

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module

Product Description

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
📋 Products Description
Item 25G SFP28 Transceiver
Part No. LS-BL312725-40C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm-TX/1270nm-RX
Max Cable Distance 40km
Media SMF
Connector Simplex LC
Optical Component DFB/APD
TX Power 0~6dBm
Receiver Sensitivity <-18dBm
Receiver Overload 2dBm
Power Consumption 1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
🔍 View Our Solution

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Solutions Diagram Product Categorization Quality Standards Manufacturing Standards
🌐 Application Scenarios
Optical Transport Networks

Optical Transport Networks

We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

FTTx

Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage
SFP Cage Specifications SFP Cage Product Line
Why Choose Us
Quality Management Advanced Equipment Production Capacity Technical Support
🏭 Production & Facility

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and testing equipment. With abundant productive capacity, we are able to deliver high-quality optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks globally.

Manufacturing Line Quality Inspection Center
Frequently Asked Questions
Q1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should pay the shipping fee.

Q3. What is your delivery time?

Ready to ship for stock items and 15-30 days for mass production.

Q4. What after-service can you offer?

A one-year guarantee period and we can offer technical support online 24 hours.

Q5. Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

Q6. What is your advantage?

We have over 19 years of production experience and are a trusted partner for global technology enterprise leaders.
